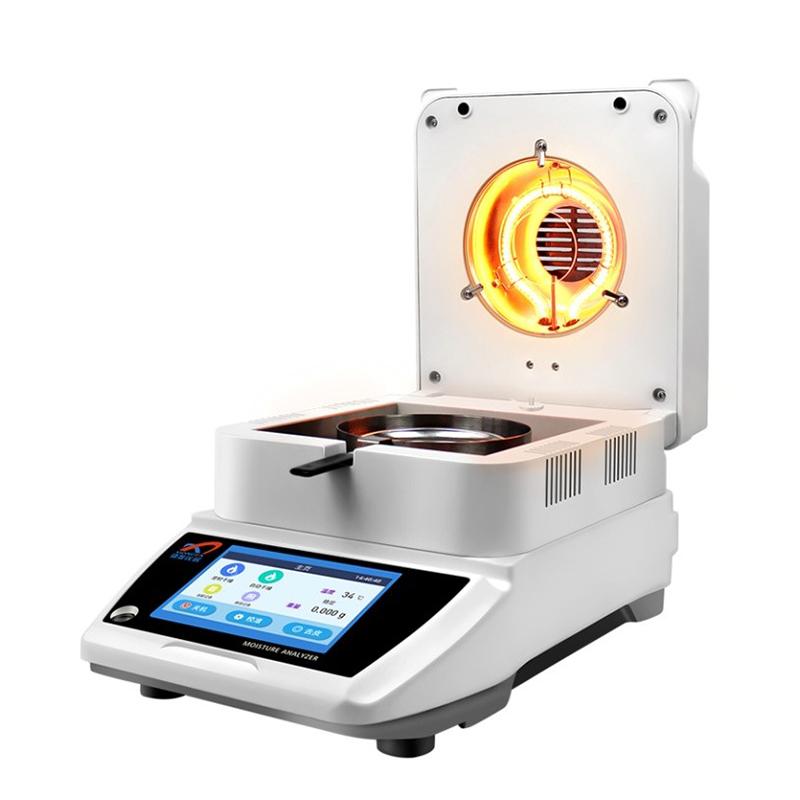

XIONGFA XF-1102MA halogen Fast Moisture Analyzer 110g/200 ℃

Maximum weighing value 0.002~ 110g, moisture readability 0.01%, moisture measurement range 0.01~ 100.00%, weighing Sensors German HBM, heating temperature range 200 ℃, data storage 20 groups, sample plate φ 85mm

$476.00/set

PromotionLoading...

Coupon

Model：

XF-1102MA

Certificate

XIONGFA

Manufacturer authorization

Contact

Details SPEC Con CAT

XIONGFA XF-1102MA Halogen Fast Moisture AnalyzerSPEC

XIONGFA XF-1102MA Halogen Fast Moisture AnalyzerDetails

XIONGFA XF-1102MA Halogen Fast Moisture AnalyzerPacking list

SKU: NB034721

Maximum weighing value: 0.002~110g

Water readability: 0.01%

Moisture range: 0.01~100.00%

Weighing Sensors: German HBM

Heating temperature range: 200℃

data storage: 20 groups

Sample tray: Φ85mm (material aluminum, can be washed and used repeatedly)

Test method: Automatic/Manual/Timing

test data: Moisture content, dry-wet ratio (Solid content), Weight (before and after drying), wet Weight ratio, moisture regain

Communication interface: Standard RS232 interface

Baud rate: 9600/S bit

Power: Voltage 220V ± 10% Frequency 50HZ ± 1HZ

Display: 5 inch touch screen display

Product size: 370*215*195mm

Dimensions: 445*300*330mm

Net Weight: 3.5kg

Gross Weight: 4.5kg

XF-1102MA

Halogen Fast Moisture Analyzer

Introduction

XF series rapid moisture analyzer is a new type of rapid moisture analyzer, which can be used to determine the moisture content of any substance (except for substances that undergo dangerous chemical reactions through heating). At the same time, the halogen heating unit and the moisture evaporation channel dry the samples quickly. During the drying process, the instrument continuously measures and immediately displays the moisture content % lost in the sample during the drying process. After the drying is completed, the final measured moisture content is locked. Press the switch button to observe the moisture value, weight initial value, initial value, test data such as time.

Halogen Moisture Meter can be used in all industries that need to measure moisture quickly, such as medicine, food, tobacco, chemical industry, tea, food, textile, agriculture and forestry, etc. The Moisture Meter can communicate with the computer, and print out the test moisture data results through the computer, or directly print out the test moisture data results through the optional printer.

Xiongfa XF-1102MA Halogen Moisture Analyzer Details Figure 1

Models

model	Weighing range	moisture readability	Test Range
XF-1005MB	0.005-100g	0.0002	0.02%-100.00%
XF-1005MA	0.005-100g	0.0002	0.02%-100.00%
XF-1102MB	0.002-110g	0.0001	0.01%-100.00%
XF-1102MA	0.002-110g	0.0001	0.01%-100.00%
XF-1203MB	0.001-120g	0.0001	0.01%-100.00%
XF-1203MA	0.001-120g	0.0001	0.01%-100.00%
Other parameters
heating temperature	MA is 200°C; MB is 180°C
load cell	MA has passed HBM; MB is made in CHINA
Sample pan size	φ85mm (material aluminum, can be cleaned and used repeatedly)
test method	Auto/Manual/Timing
Test Data	Moisture content, dry-wet ratio (solid content), weight (before and after drying), wet weight rate, moisture regain
Communication Interface	Standard RS232 interface
baud rate	9600/S bit
Power supply	Voltage 220V±10% Frequency 50HZ±1HZ
monitor	5 inch touch screen display
digital storage	MA is 20 groups; MB is 10 groups
