XIONGFA XF-1203MA halogen Fast Moisture Analyzer 120g/200 ℃

SE
Maximum weighing value 0.001~ 120g, moisture readability 0.01%, moisture measurement range 0.01~ 100.00%, weighing Sensors German HBM, heating temperature range 200 ℃, data storage 20 groups, sample plate φ 85mm
$517.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

XIONGFA XF-1203MA Halogen Fast Moisture AnalyzerSPEC

XIONGFA XF-1203MA Halogen Fast Moisture AnalyzerDetails

XIONGFA XF-1203MA Halogen Fast Moisture AnalyzerPacking list

SKU
NB034723
Maximum weighing value
0.001~120g
Water readability
0.01%
Moisture range
0.01~100.00%
Weighing Sensors
German HBM
Heating temperature range
200℃
data storage
20 groups
Sample tray
Φ85mm (material aluminum, can be washed and used repeatedly)
Test method
Automatic/Manual/Timing
test data
Moisture content, dry-wet ratio (Solid content), Weight (before and after drying), wet Weight ratio, moisture regain
Communication interface
Standard RS232 interface
Baud rate
9600/S bit
Power
Voltage 220V ± 10% Frequency 50HZ ± 1HZ
Display
5 inch touch screen display
Product size
370*215*195mm
Dimensions
445*300*330mm
Net Weight
3.5kg
Gross Weight
4.5kg
XF-1203MA
Halogen Fast Moisture Analyzer
Maximum weighing value 0.001~ 120g, moisture readability 0.01%, moisture measurement range 0.01~ 100.00%, weighing Sensors German HBM, heating temperature range 200 ℃, data storage 20 groups, sample plate φ 85mm

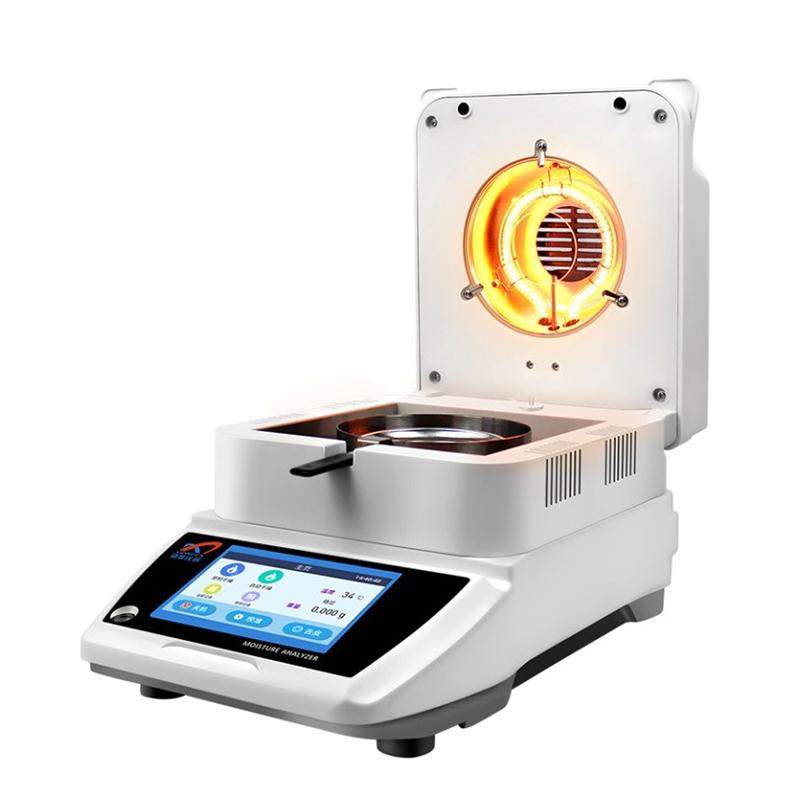

XIONGFA XF-1203MA halogen Fast Moisture Analyzer 120g/200 ℃ Picture

Introduction

XF series rapid moisture analyzer is a new type of rapid moisture analyzer, which can be used to determine the moisture content of any substance (except for substances that undergo dangerous chemical reactions through heating). At the same time, the halogen heating unit and the moisture evaporation channel dry the samples quickly. During the drying process, the instrument continuously measures and immediately displays the moisture content % lost in the sample during the drying process. After the drying is completed, the final measured moisture content is locked. Press the switch button to observe the moisture value, weight initial value, initial value, test data such as time.

Halogen Moisture Meter can be used in all industries that need to measure moisture quickly, such as medicine, food, tobacco, chemical industry, tea, food, textile, agriculture and forestry, etc. The Moisture Meter can communicate with the computer, and print out the test moisture data results through the computer, or directly print out the test moisture data results through the optional printer.

Xiongfa XF-1203MA Halogen Moisture Analyzer Details Figure 1

Models

modelWeighing rangemoisture readabilityTest Range
XF-1005MB0.005-100g0.00020.02%-100.00%
XF-1005MA0.005-100g0.00020.02%-100.00%
XF-1102MB0.002-110g0.00010.01%-100.00%
XF-1102MA0.002-110g0.00010.01%-100.00%
XF-1203MB0.001-120g0.00010.01%-100.00%
XF-1203MA0.001-120g0.00010.01%-100.00%
Other parameters
heating temperatureMA is 200°C; MB is 180°C
load cellMA has passed HBM; MB is made in CHINA
Sample pan sizeφ85mm (material aluminum, can be cleaned and used repeatedly)
test methodAuto/Manual/Timing
Test DataMoisture content, dry-wet ratio (solid content), weight (before and after drying), wet weight rate, moisture regain
Communication InterfaceStandard RS232 interface
baud rate9600/S bit
Power supplyVoltage 220V±10% Frequency 50HZ±1HZ
monitor5 inch touch screen display
digital storageMA is 20 groups; MB is 10 groups


FAQ
QLight calcium pulp, calcium carbonate Solid content detection instrument suggestion
A This can directly test Solid content.
QCan this instrument measure corn moisture?
A The moisture meter meets the GB/T 10362 test standard, which is equivalent to the international standard ISO 6540-1980 "Maize Moisture Determination Method". It is used for the moisture test of crushed corn. If the moisture content of corn is 9% to 15%, it is directly crushed. First, use a small amount of sample to clean the crusher, discard the crusher, and then quickly crush about 30g of the sample, mix it evenly, and put it in a closed container for backup. The following operations are performed according to the second drying operation in the two drying methods.
QCan kaolin be measured?
A Calcined kaolin, ultrafine modified kaolin, barium sulfate, calcium carbonate, talc moisture content can be measured
