Defelsko Positector 6000 FJS1 magnetic Coating Thickness Gauge 25mm

SE
25Mm thick coating thickness measurement, 2.8 inch LCD screen can flip display and touch operation; with sound and visual alarm; USB interface can transmit data and charge.
$1509.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

Defelsko Positector 6000 FJS1 Coating Thickness GaugeSPEC

Defelsko Positector 6000 FJS1 Coating Thickness GaugeDetails

Defelsko Positector 6000 FJS1 Coating Thickness GaugePacking list

SKU
NB034737
Measurement principle
Magnetic Induction
Measurement range
0~25mm
margin of error
±3%
Resolution
0.1μm
probe
FJS probe
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
without
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color LCD touch screen
Interface
USB
supporting software
Yes.
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
1000 Measured values
Test environment
Ferrous metal substrate nonmagnetic coating environment
Defelsko calibrated standard
STDS2、STDA2
Positector 6000 FJS1
Coating Thickness Gauge
25Mm thick coating thickness measurement, 2.8 inch LCD screen can flip display and touch operation; with sound and visual alarm; USB interface can transmit data and charge.
Defelsko Positector 6000 FJS1 magnetic Coating Thickness Gauge 25mm Picture

Detail Figure 1 of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge

Overview

The Defelsko Positector 6000 FJS1 Magnetic Coating Thickness Gauge is a high-range gauge that measures thicknesses up to 2.5 cm for non-magnetic coatings on ferrous metal substrates.Positector 6000 FJS1 Magnetic Coating Thickness Gauge is adoptedRemovable FJS probe for measuring thick protective coatings on ferrous metalssubstrate. Ideal for thick epoxy, rubber, intumescent fireproofing, etc.

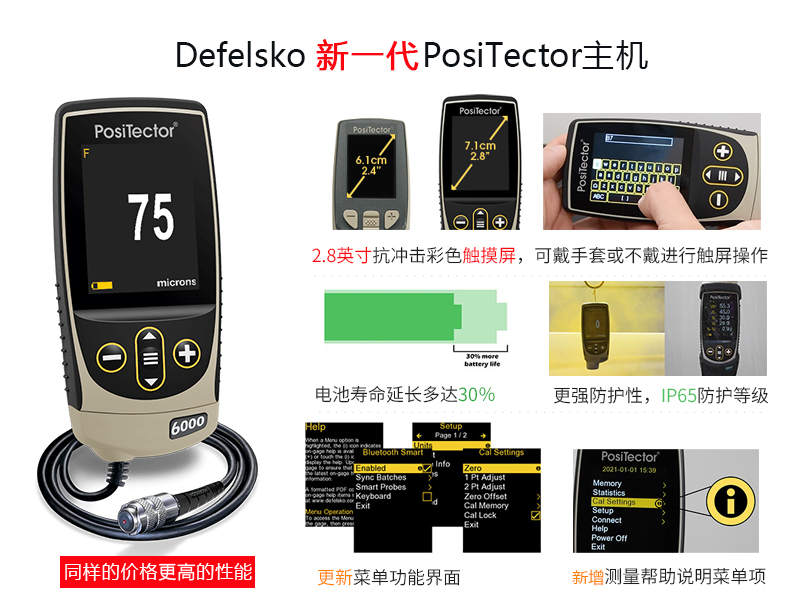

Detail 2 of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge

Detail 3 of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge

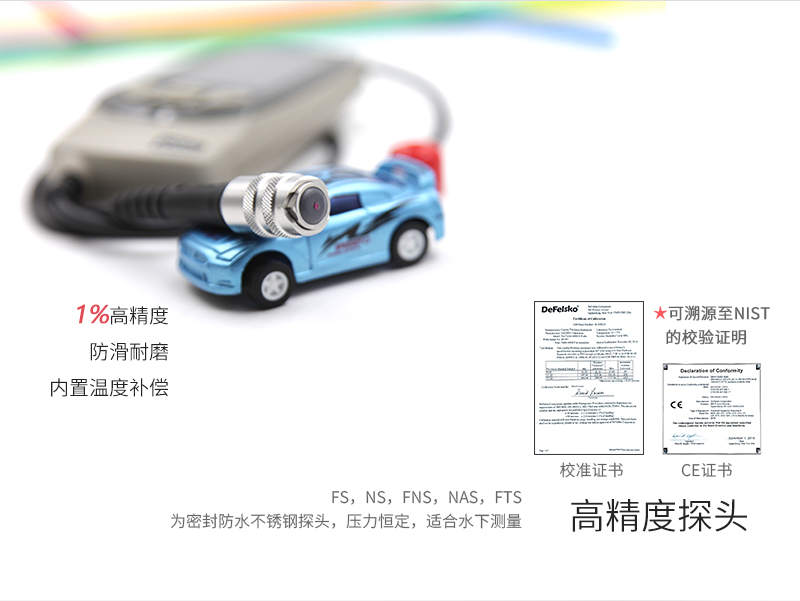

Detail of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge Figure 4

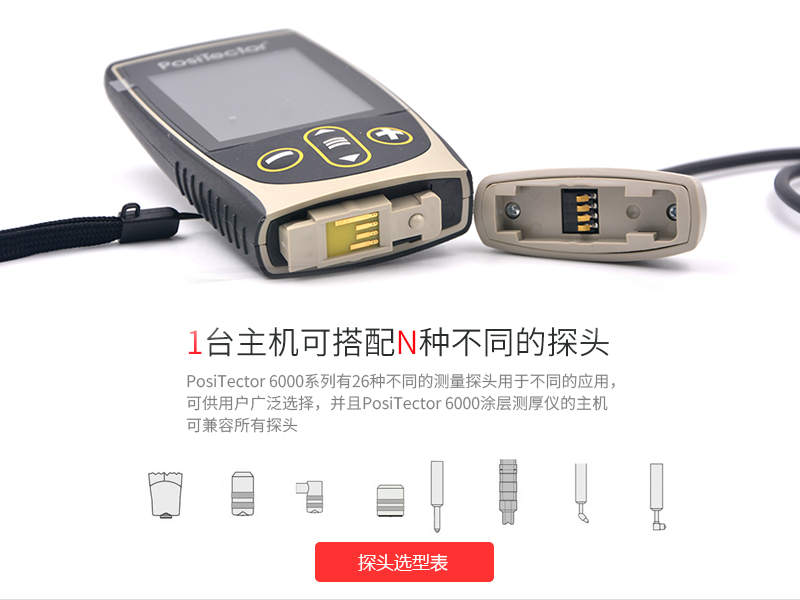

Detail Figure 5 of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge

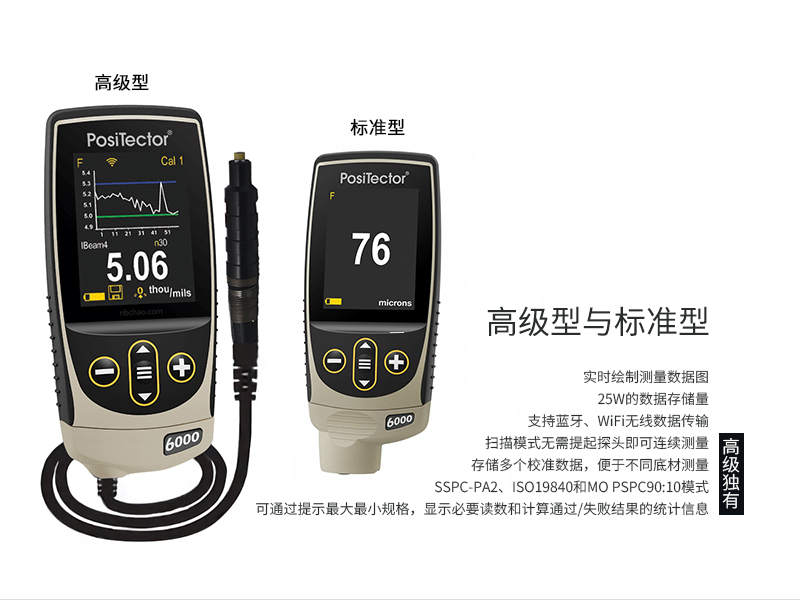

Detail 6 of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge

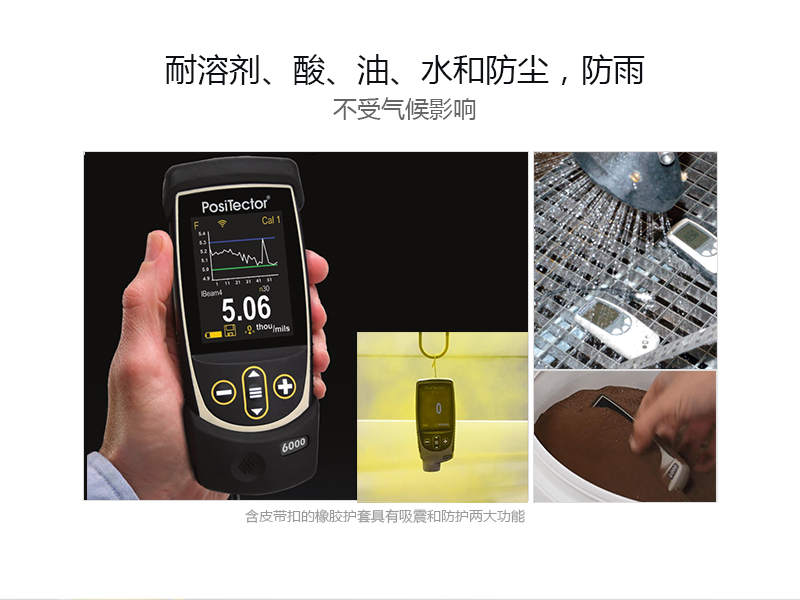

Detail Figure 7 of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge

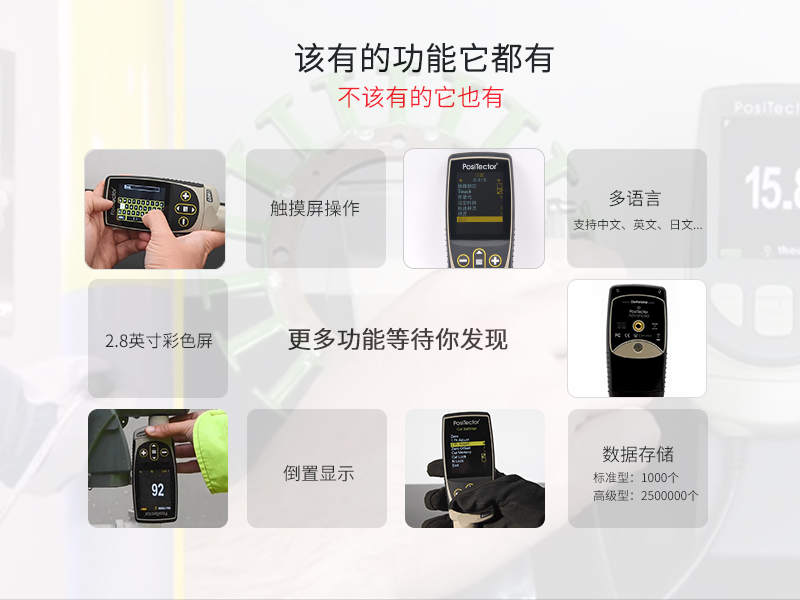

Detail of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge8

Detail of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge Figure 9

Detail Figure 10 of the Defelsko Positector 6000 FJS1 Coating Thickness Gauge

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QMainly on the cylindrical barrel structure measurement diameter of about 1m offshore fan pile foundation 5-20mm, there is a suitable coating thickness measurement equipment?
A Positector 6000 FJS1 magnetic Coating thickness gauge can be tested with a thickness measuring range of 25mm.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
