Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge for thick coatings

SE
Thick coating thickness measurement special, 38mm ultra-thick range, thick protective coating measurement, such as epoxy, fire-proof coatings, etc.
$1756.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

Defelsko PosiTector 6000 FLS1 Coating Thickness GaugeSPEC

Defelsko PosiTector 6000 FLS1 Coating Thickness GaugeDetails

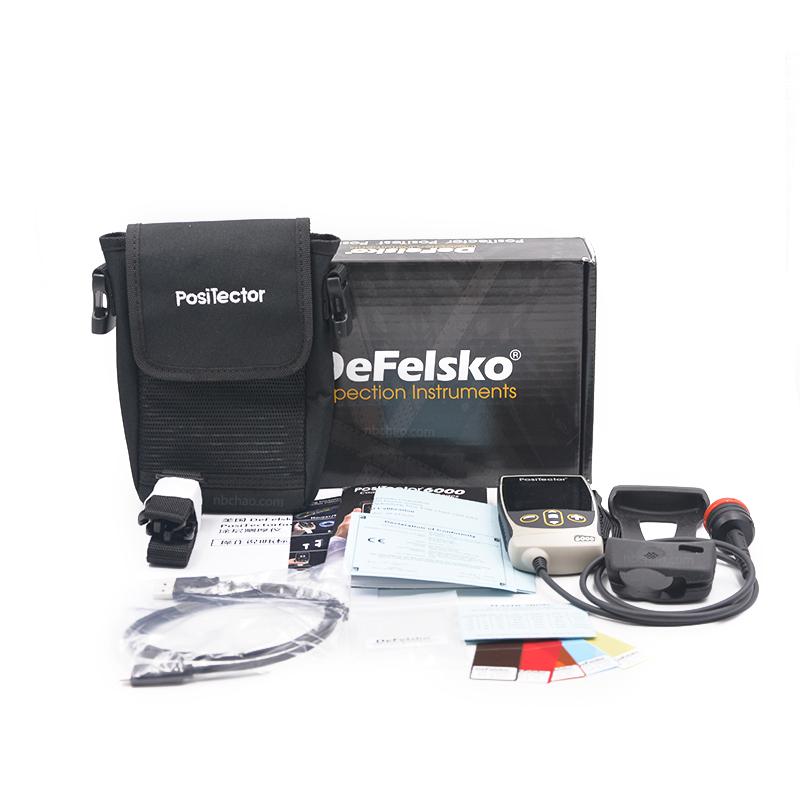

Defelsko PosiTector 6000 FLS1 Coating Thickness GaugePacking list

SKU
NB034740
Measurement principle
Magnetic Induction
Measurement range
0~38000μm
margin of error
±3%
Resolution
0.1μm
probe
FLS1 probe
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
without
Power Supply
3 * AAA alkaline battery
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2等
Calibrated Certificate
Yes.
Language
Chinese, English
Display screen
2.8-Inch color touchscreen
Interface
USB
supporting software
PosiSoft Software Suite
Machine Weight
137G (without battery)
Machine size
127*66*25.4mm
Data storage
1000 Measured values
Test environment
Non-ferrous metal substrate nonconductive coating environment
screen image saving
One hundred.
Protection level
IP65
Measurement speed
60 + readings per minute
PosiTector 6000 FLS1
Coating Thickness Gauge
Thick coating thickness measurement special, 38mm ultra-thick range, thick protective coating measurement, such as epoxy, fire-proof coatings, etc.

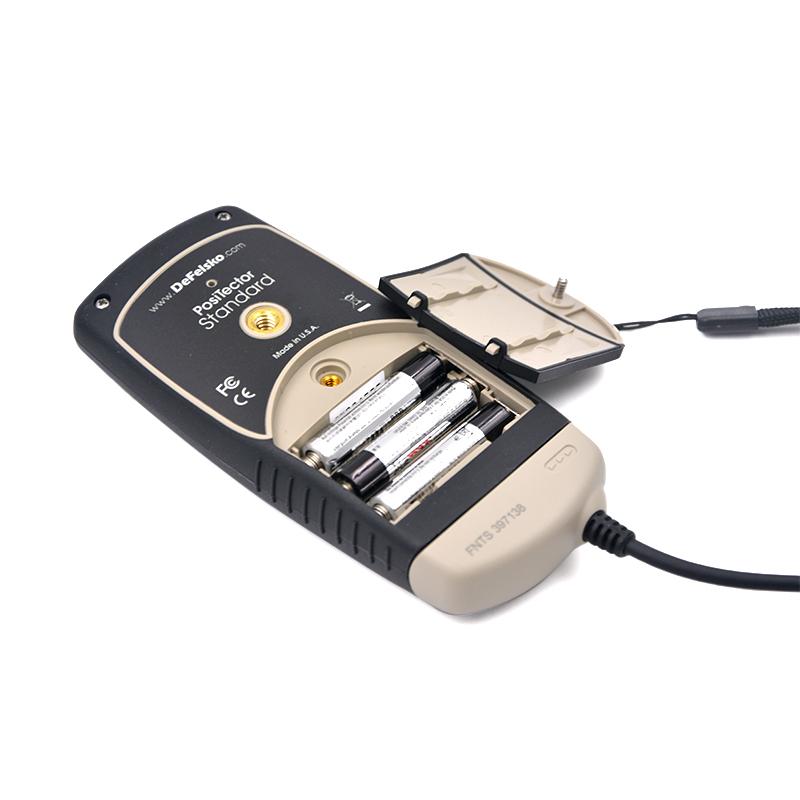

Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge for thick coatings Picture

Detail Figure 1 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Overview

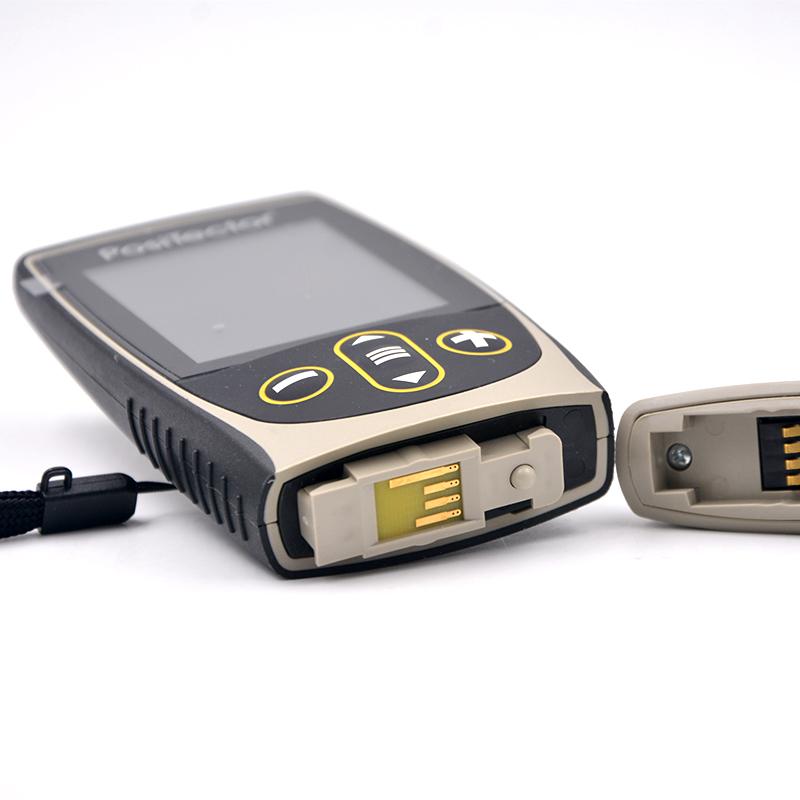

The Defelsko PosiTector 6000 FLS1 Aluminized Film Thickness Gauge is an eddy current Thickness Gauge for non-destructive testing of the thickness of non-conductive coatings on non-ferrous metal substrates, and is a thick coating Thickness Gauge that measures thickness in the thickness range of 0~13mm.The PosiTector 6000 FLS1 Aluminium Thickness Gauge is the standard version of the Positector 6000 Series of Thickness Gauges, featuring 1000 data storage, the ability to split and swap probes, and menu-based navigation for easy operation.Detail 2 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Substrate: Non-ferrous metals (aluminum, copper)

Coating: Non-conductive coating

FLS1 – Non-ferrous metals (aluminum, copper), thick protective coatings such as epoxy, fire retardant coatings, etc. Standard model

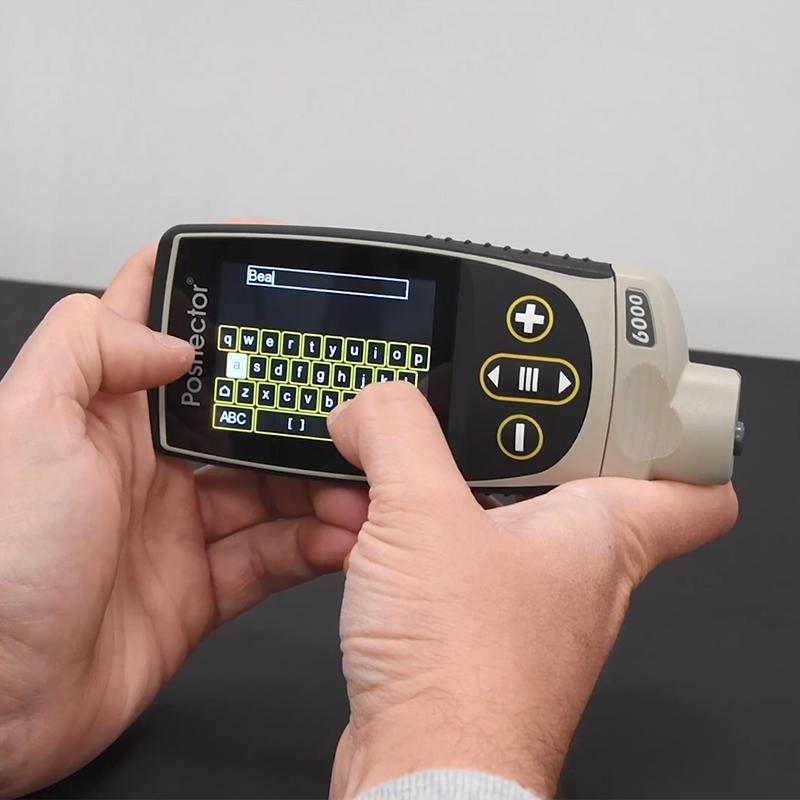

Detail 3 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

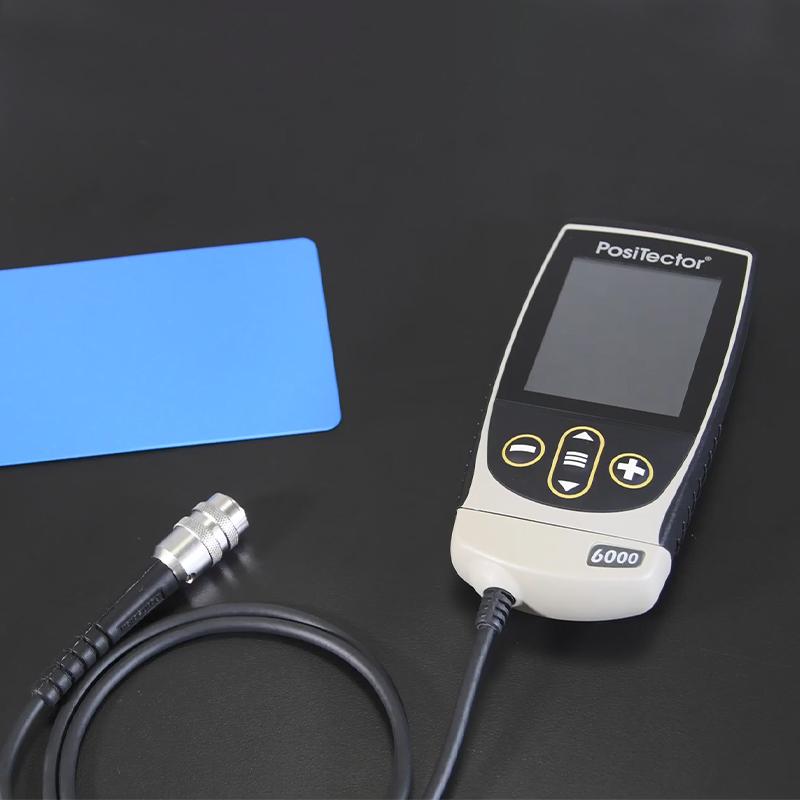

Detail Figure 4 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Detail Figure 5 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Detail 6 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Detail Figure 7 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Detail of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge8

Detail Figure 9 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Detail of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge 10

Detail Figure 11 of the Defelsko PosiTector 6000 FLS1 Coating Thickness Gauge

Recommended reading

★《How do you choose the Defelsko PosiTector 6000 Coating Thickness Gauge?》

★Defelsko PosiTector 6000 Series Coating Thickness Gauge Details (Text Version)

FAQ
QI want to measure the epoxy coating thickness on the Aluminum Panel, about 0.5-3 mm, which instrument should I choose?
A Recommended PosiTector 6000 FLS1, which is designed to measure nonconductive coatings on non-ferrous metals (such as aluminum), the measurement range 0-13mm fully covers your needs, and FLS1 Probe is designed for thick coatings, epoxy such protective coatings are particularly accurate.
QWe do fire-proof coatings construction, often to test coatings on aluminum, is this instrument suitable?
A Yes! The FLS1 model is designed for thick protective coating measurement, such as fire-proof coatings and epoxy coatings are its typical applications. It uses the eddy Current principle to measure the thickness of nonconductive coatings on aluminum materials very accurately, and also meets the relevant testing standards of fire-proof coatings.
QIs this thickness gauge complicated to operate? Our on-site workers need to use it.
A The operation is very simple, the menu navigation and 2.8-inch Touchscreen are clear at a glance, and the workers are quick to use. The Probe is freely removable, and the IP65 Protection Rating is suitable for the field environment. It can measure more than 60 readings per minute, which is highly efficient and durable.
QWhy can't the Defelsko Coating thickness gauge be charged?
A Hello, there are two solutions: 1. It is equipped with 3 ordinary AA batteries, please open it and replace it; 2. It can also be connected to a computer for direct use, but it cannot be charged (powered by a USB cable).
