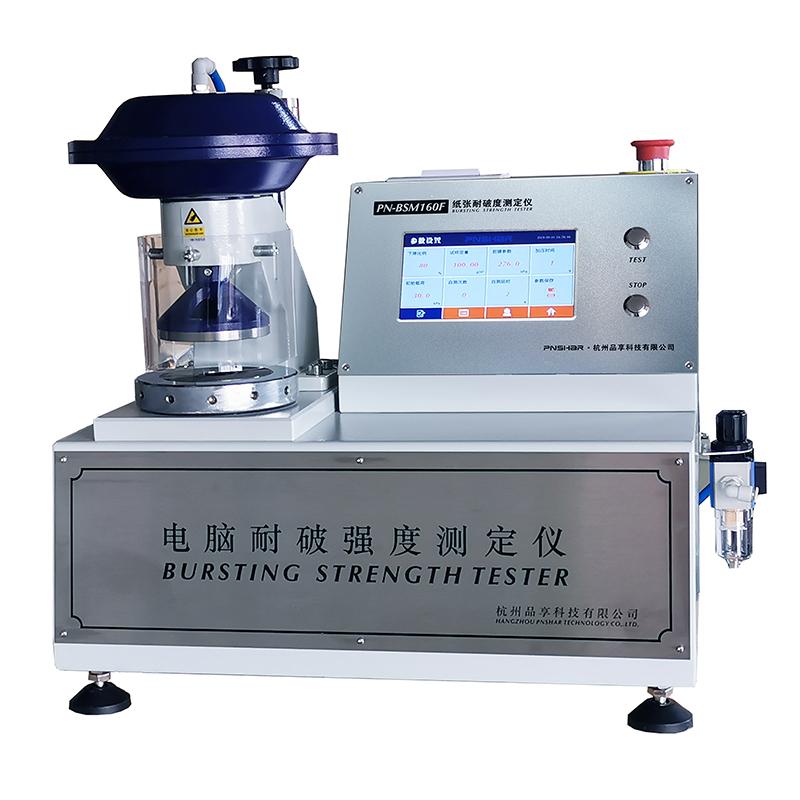

PNSHAR PN-BSM160F Cardboard Burst Strength Tester

PN-BSM160F

Cardboard Burst Strength Tester

Measurement range 70~1400kPa, oil feeding speed 95 +/- 5mL/min, indication variability ≤ 0.5%, suitable for single-layer and multi-layer paper of 70kPa~ 1400kPa, not suitable for composite (such as corrugated fibreboard or pad Cardboard).

Introduction

PN-BSM160F paper bursting strength Tester is a paper bursting strength Tester designed and developed by our company in accordance with the national standard GB/T 454 and ISO 2758. The instrument is a Mullen type instrument. It is suitable for single-layer and multi-layer paper between 70kPa and 1400kPa, and is not suitable for composite materials (such as corrugated cardboard or liner cardboard).

Bursting strength refers to the uniformly increased pressure that corrugated cardboard can withstand per unit area perpendicular to the surface of the sample under test conditions. Bursting strength is an important item to measure the quality of cartons, which reflects the ability of cartons to withstand the forces of handling, loading and unloading, impact, and tearing during the circulation process.

PN-BSM160F Paper Bursting Strength Tester has various parameter testing, conversion, adjustment, display, memory, printing and other functions included in the standard. It has data processing function, which can directly obtain the statistical results of various data, and can automatically reset. It is easy to operate, easy to adjust, and has stable performance.

Implementation standards

GB/T454, ISO2758, TAPPI T403

Features

1. Adopt new module circuit design, with WIFI Internet of Things function. After being connected to the Internet, the test results can be saved to the cloud server, and can be queried and generated through the dedicated QMS quality management system;

2. It has a prompt function for unplaced samples to reduce misoperation;

3. The sample clamping force is adjustable, parameters are preset, and one-click testing is available;

4. After the test is completed, return at high speed to improve test efficiency;

5. With emergency stop button and over-range prompt function;

6. It has statistical functions to display the average value, standard deviation and coefficient of variation;

7. Units can be switched: kPa, kgf/cm2, lbf/in2;

8. Can be connected to computer software, with the function of real-time display of pressure curve and data analysis, management, saving, printing and other functions.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
