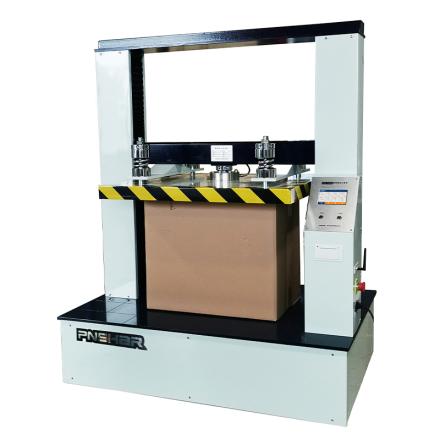

Specifications
| Power | AC380V 10A 50Hz three-phase five-wire Power |
| Error of indication | ±1% |
| Indication variability | ≤1% |
| Resolution | 1N |
| Force range | 220~50000N |
| deformation error | ≤ ±0.1mm |
| Plate size | 1500*1500 mm |
| Plate parallelism | ≤ Length of the long side of the platen * 0.2% mm |
| Working Travel | 50~1500mm |
| Pressurization speed | 10 +/- 1mm/min (1~ 120mm/min can be set) |
| return speed | 5~250mm/min |
| monitor | 5 "Color touchscreen |
| printout | modular integrated thermal printer |
| Communication interface | RS232 (std.)/USB (optional) |
| Operating Environment | Indoor temperature (20 +/- 10) ℃; Relative Humidity < 85% |
| Dimensions | 2056*1520*2610mm |
| Net Weight | 2500kg |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/34798/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
