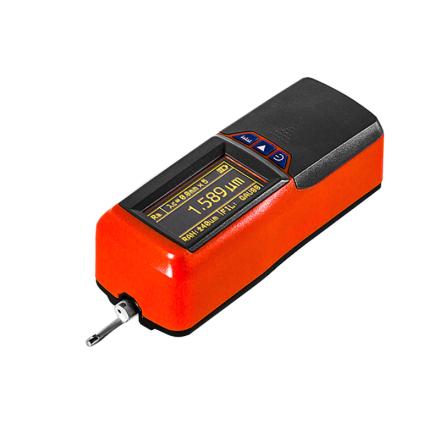

Specifications
| Measurement range -Z axis (vertical) | 160μm |
| Measurement range -X axis (horizontal) | 17.5mm |
| Resolution -Z axis (vertical) | 0．01μm/±20μm；0．02μm/±40μm；0．04μm/±80μm |
| Measurement Items - Parameters | Ra Rz==Ry(JIS) Rq Rt==Rmax Rp Rv R3z R3y Rz(JIS) Rs Rsk Rku Rsm Rmr |
| Measurement Items - Standard | ISO,ANSI,DIN,JIS |
| Measurement Items - Graphics | Linear dispersion, |
| filter | RC,PC-RC,Gauss,D-P |
| Sampling length | 0.25,0.8,2.5mm |
| Evaluation length (ln) | Ln= lr×n n=1~5 |
| Sensors - Measurement principles | Displacement Differential Inductance |
| Sensors - Stylus | Natural diamond, 90 cone angle, 5 μm tip radius |
| Sensors - Force Measurement | <4mN |
| Sensors - Guide | Carbide, coasting direction radius 40mm |
| Sensors - Coasting Speed | lr=0.25, Vt=0.135mm/s; lr=0.8, Vt=0. 5mm/s; lr=2. 5, Vt=1mm/s; |
| Error of indication | Not more than +/- 10% |
| Indication variability | Not more than 6% |
| Power | Built-in lithium-ion rechargeable battery, charged with DC5V, 800mA charger |
| Dimensions | 141×55×40mm |
| Weight | Approx. 400g |
| Operating Environment | Temperature: - 20 ℃~ 40 ℃; Humidity: < 90% RH |
| Storage and transportation environment | Temperature: - 40 ℃~ 60 ℃; Humidity: < 90% RH |
| Display range | Ra Rq：0.005μm ~ 16μm |
| Display range | Rz; R3z ; Ry ; Rt; Rp; Rm 0.02μm ~ 160μm |
| Display range -Sk | 0 ~ 100% |
| Display range -S; Sm | 1mm |
| Display range -tp | 0 ~ 100% |
