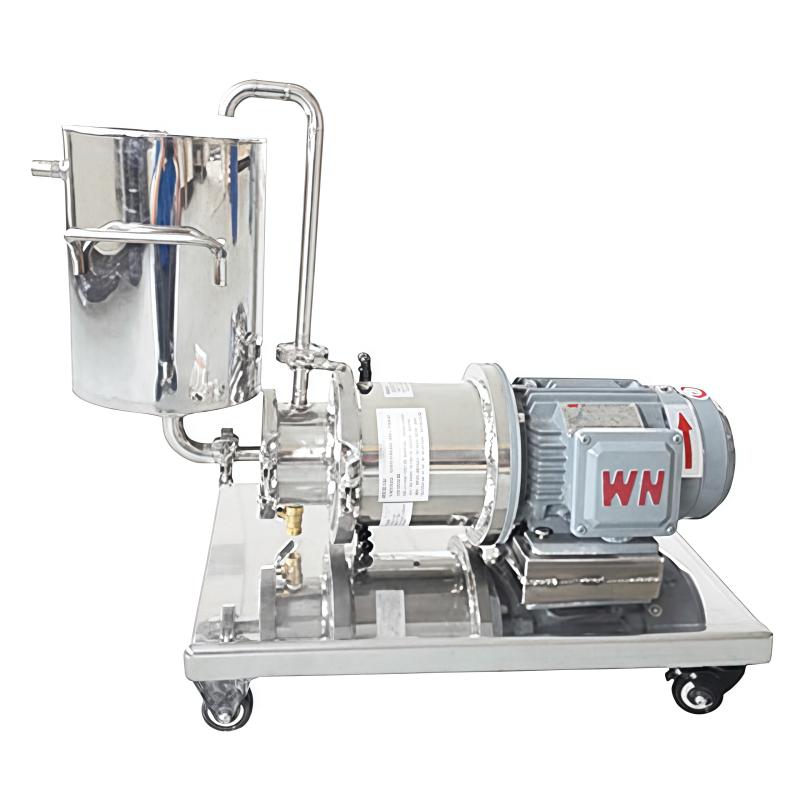

MUXUAN MXR-2.2-1 laboratory single stage emulsification pump

MXR-2.2-1

Laboratory single stage emulsification pump

Equipment introduction

The working chamber of the laboratory single-stage pipeline emulsification pump is equipped with a set of rotors and stators. The rotors and stators can be configured in different configurations from single layer, two layers to six layers. When the motor rotates at high speed, the multi-layer rotor stator generates strong suction force and sucks the material in. In the working chamber, during the process of the material from the suction port to the discharge port, it undergoes multiple dispersion, shearing and emulsification of the multi-stage and multi-layer stator, and undergoes circulation, continuous dispersion, shearing and emulsification to obtain a stable High quality product. It is suitable for mixing, dispersing, dissolving and emulsifying liquids or materials with good mutual solubility.

Principle

The laboratory single-stage emulsification pump adopts a horizontal structure; a set of rotors and stators are installed in a long and narrow working chamber, and the rotors and stators cooperate; the motor drives the intermediate shaft to run at high speed, and the rotor stator forms a vacuum, and the material is sucked into the rotor from the inlet of the Mixing Tank. In the stator cavity, the strong kinetic energy causes the rotor to generate a high linear speed, causing the material to fly out after strong impact, crushing, centrifugal extrusion, liquid layer friction, and shearing between the rotor and the stator. Under the action of force, strong turbulent flow is generated, and the material flows out from the outlet and enters the Mixing Tank circulation, so that the immiscible solid phase, liquid phase, gas phase and other media are uniformly fine, dispersed and emulsified in an instant, so that the product reaches Stable high quality products.

Application scope

[Material viscosity]: ≤20000 cps

[Production Capacity]: 5-20L per batch

[Application fields]: Suitable for dispersion, emulsification and homogenization of product materials in industries such as biology, food, coatings, inks, textile auxiliaries, cosmetics, lubricants, pesticides and other industries.

[Applicable materials]: Solids and liquids, liquids and liquids can be mixed to form solutions, colloids, suspensions or emulsions; such as juices, soups, dairy tissue homogenates, cosmetics, surfactants, asphalt , emulsifiers, oil field chemicals and more than a thousand kinds of materials.

Advantages

Simple and convenient operation

It has a self-circulating barrel with good conveying capacity. The solvent is self-circulating and easy to clean. There is no need for an additional conveying pump. The double-layer cooling barrel ensures low temperature rise of the equipment.

High experimental efficiency and stable product quality

The equipment has a linear speed of more than 20m/s, which can quickly distribute one phase of uniform materials into another or multiple materials to achieve fine homogenization, dispersion and emulsification effects. The product is stable and not easy to stratify.

High processing precision

The rotor and stator are made of forged materials and processed by CNC machining centers. The rotor-stator has a small gap, good shear fineness, and high emulsification and dispersion efficiency. It adopts a double-end mechanical seal design with no leakage and reduces maintenance costs.

Strong non-standard

The materials can be customized according to requirements such as SS304, SS316L/titanium alloy/titanium-molybdenum-nickel alloy and other unconventional materials; explosion-proof equipment can be customized, and frequency conversion speed regulation is optional.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
