CHINA Side press/Ring compression Tester NBC-D1
SECHINA side pressure/Ring compression Tester NBC-D1 is a microcomputer side pressure ring Compressive Strength Tester, LCD display, with side pressure, flat pressure, ring pressure, gluing four measurement modes.
Model：
NBC-D1
HuiTai
Manufacturer authorization
Similar products
-
CHINA NBC-8503 Side Compression/Ring Compression Strength Tester, Button Compression Strength Machine$ 915.00SE -
CHINA BLD-609A Side pressure/Ring compression testing machine$ 949.00SE -
HUIDA HD-6007 Side pressure ring compressive Strength Tester high-precision Sensors 200KG capacity$ 1408.00SE -
JINGHUAYIQI LD-YSY-02 Side pressure ring compression Strength Tester, touch screen panel$ 1041.00SE
HuiTai NBC-D1 Ring compression testing machineSPEC
HuiTai NBC-D1 Ring compression testing machineDetails
HuiTai NBC-D1 Ring compression testing machinePacking list
- SKU
- NB034840
- Force range
- 5~3000N
- Pressurization speed
- 12.5±1mm/min
- Force Resolution
- 0.01N
- Indication Accuracy
- ≤±1%
- Upper and lower platen parallelism
- <0.05mm
- Upper and lower pressure plate size
- F125mm
- Working Travel
- 80mm
- Dimensions
- 400*360*550mm
- Weight
- 56kg
NBC-D1
Ring compression testing machine
product features

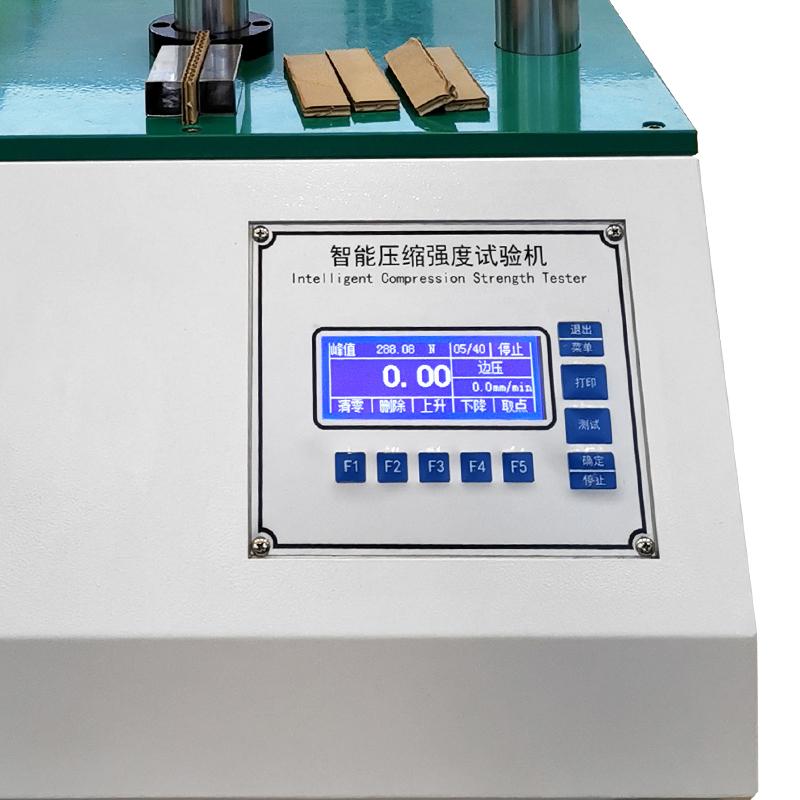

● LCD display, PVC control panel, humanized design
● Automatic measurement during the test, intelligent judgment of test results, and automatic return
● Microcomputer processing system, input the weight and size, and the strength result can be displayed after the test
● Microcomputer collects and calculates data within the pressure value, and prints test results with a micro-printer
● Four test modes, four strength tests of side pressure, flat pressure, ring pressure and adhesion
● Using synchronous motor transmission, the transmission is stable and accurate,
optional configuration
Ring Pressure Sampler, Ring Pressure Center Disk, Side Pressure Sampler, Side Pressure Guide Block, Flat Pressure Sampler, Adhesive Peel Holder
FAQ
QWhat is the diameter of this domestic (CN) side/Ring compression testing machine?
A
Hello, the diameter of the pressing plate is 125mm.
