CHINA Carton Compression Tester NBC-KY-1000
SE
NBC-KY-1000
HuiTai NBC-KY-1000 Carton compression testing machineSPEC
HuiTai NBC-KY-1000 Carton compression testing machineDetails
HuiTai NBC-KY-1000 Carton compression testing machinePacking list
- SKU
- NB034856
- Force range
- 10KN
- Capacity
- 2T
- Pressurization speed
- 10mm/min
- Force Resolution
- 1N
- Deformation resolution
- 0.1mm
- Plate size
- 600x800mm
- Power
- AC 220V 50/60 Hz 4A
- precision
- ≤±1%
- resolution
- 1/300000
- Transmission mechanism
- Taiwan, China motor driven high precision screw
Introduction

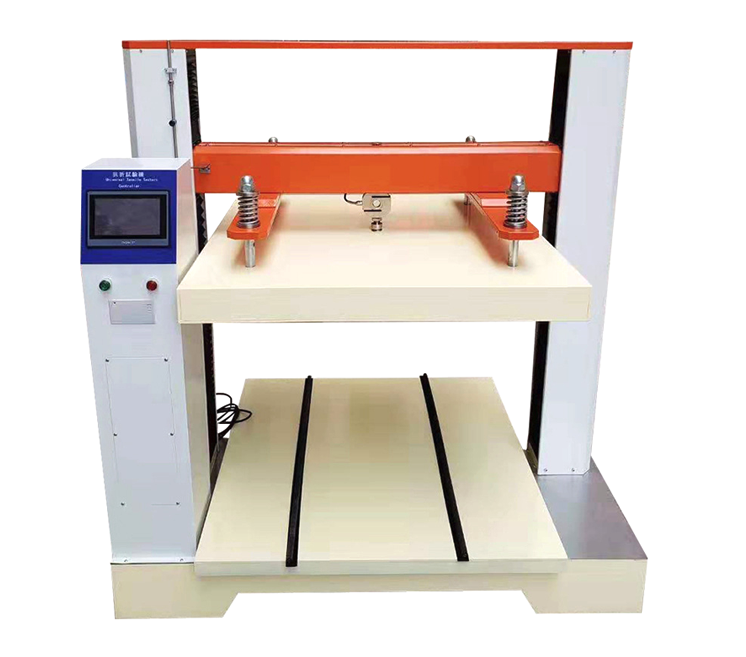

The carton compression testing machine is the most direct test instrument for checking the compressive strength of cartons or other packaging containers. It is used to determine the compressive capacity of cartons and can be used for pressure stacking tests. The test results can be used as factory stacked finished packaging boxes. An important reference for height or an important basis for designing packing boxes.
Applications
It is used to test the compressive strength and stacking strength of various packages and cartons. The results of the test can be used as an important reference for packaging, transportation and factory stacking height of finished product packaging boxes. The instrument adopts a new intelligent operation control system with a simple appearance design. The machine as a whole overcomes the defects of tall and bulky traditional products and is easy to carry.
Features
1. Full Chinese LCD visual operation interface, automatically return to the position after the test is completed, with rapid rise and fall functions. 20 sets of test data can be saved and printed out.
2. High precision, fully automatic test, simple and convenient operation, stable and reliable performance (built-in formulas for calculating the safe compressive strength of cartons and the total mass of stacking, which is convenient for users to calculate the comprehensive performance of cartons).
3. Three Operating Modes:
Strength test: it can measure the maximum pressure resistance and displacement of the box;
Fixed value test: the overall performance of the box can be tested according to the set pressure and displacement;
Stacking test: According to the requirements of national standards, stacking tests under different conditions such as 12 hours and 24 hours can be carried out.
Standards
GB/T 4857.4-92 Pressure test method for packaging and transportation packages
GB/T 4857.3-92 Static load stacking test method for packaging and transportation packages
