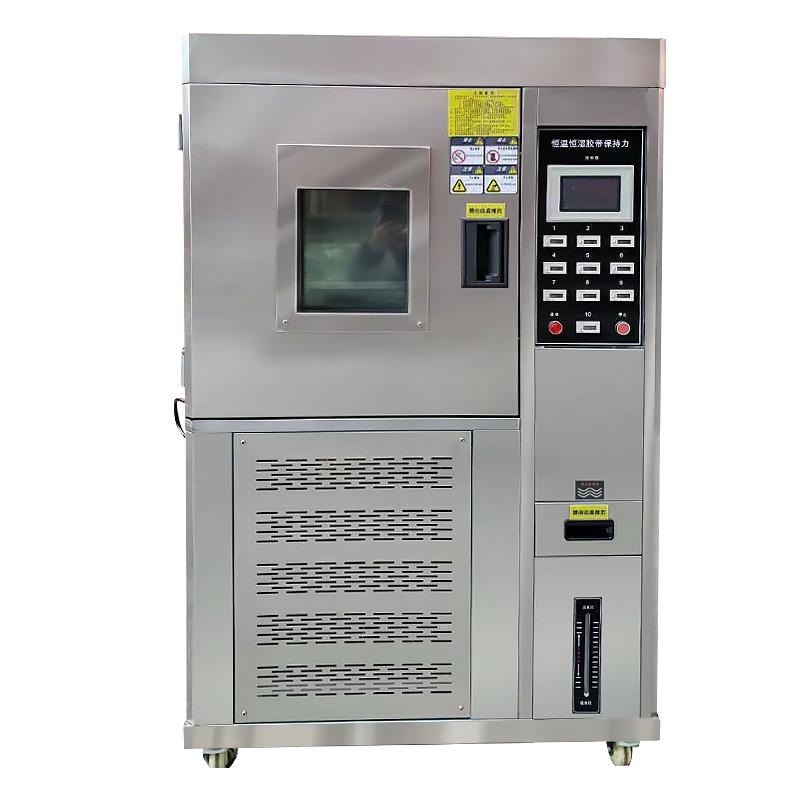

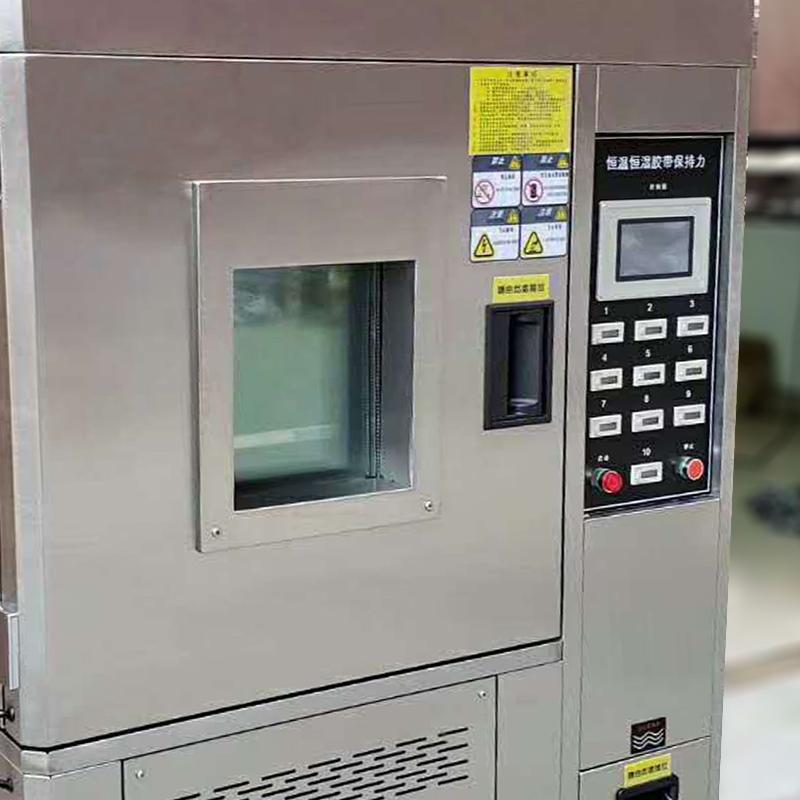

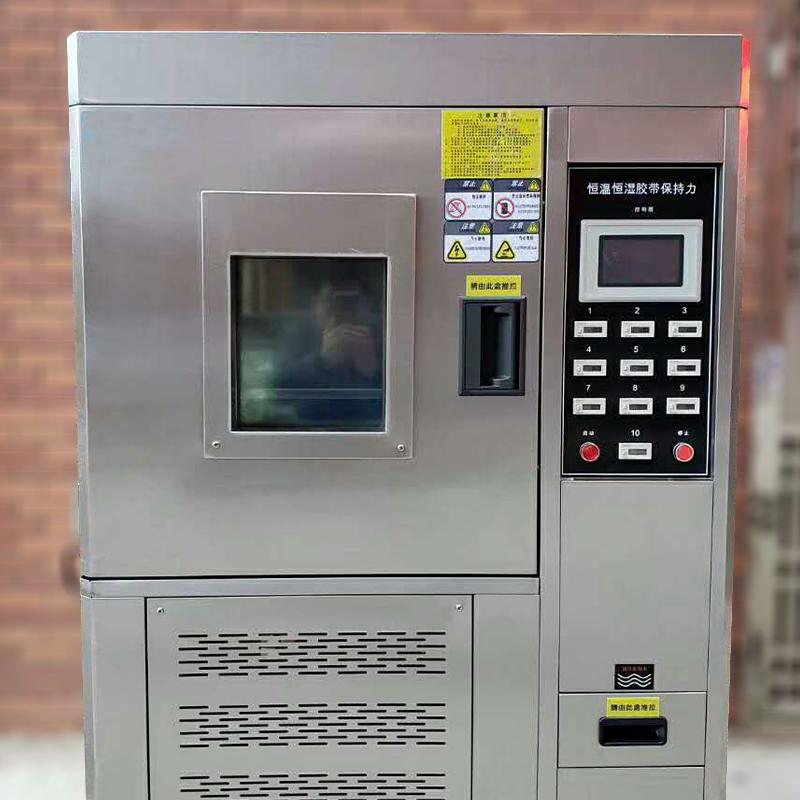

CHINA Constant temperature and humidity tape retention Tester NBC-1108 10 stations
SE
NBC-1108
HuiTai NBC-1108 Constant temperature and humidity tape retention testing machineSPEC
HuiTai NBC-1108 Constant temperature and humidity tape retention testing machineDetails
HuiTai NBC-1108 Constant temperature and humidity tape retention testing machinePacking list
- SKU
- NB034862
- Inner box size
- 500*400*500mm
- Analytical Accuracy
- Temperature: ± 0.01 ℃; Humidity: ± 0.1% R.H
- Temperature fluctuation
- ±0.5℃
- Temperature Uniformity
- ±2℃
- Heating rate
- 2 ℃ -5 ℃/min (from normal temperature to maximum temperature, nonlinear no-load)
- Cooling rate
- 0.5 ℃ -1.5 ℃/min (from normal temperature to minimum temperature, non-linear no-load)
- Humidity range
- 20%~98%R.H
- Humidity fluctuation
- ±2.0%R.H.
- Humidity Deviation
- ±2%
- station number
- 10 workstations
- Test steel plate
- 10 sets (mirror stainless steel plate) 50 mm (L) × 50 mm (B) × 1.5 mm (D)
- timer
- 10 sets, 0~9999 hours 59 minutes 59 seconds
- Weight
- 200G, 1000g, 10 each (including the Weight of the loading plate) (the Weight is made of stainless steel)
technical features
1. It adopts 7-inch TEMI880 color touch screen display, which is intuitive and easy to operate, and has the function of saving historical data.
2. Reserve the function of switching on and off, end the planning setting, automatically save the data curve after power failure, etc.
3. After the test, the product under test will automatically return to normal temperature to avoid frost and condensation protection mechanism.
4. Using servo refrigerant flow control technology to effectively save energy by more than 30%
5. The experiment is carried out cyclically without affecting the impact time
6. The use of pure aluminum fin evaporator can effectively reduce the energy storage time and save energy
Chamber size

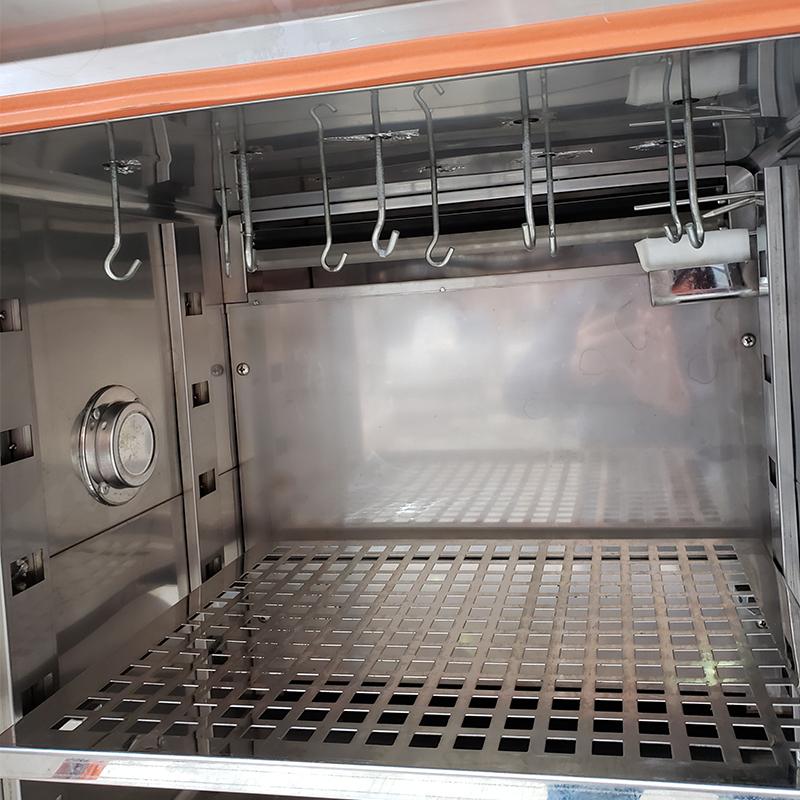

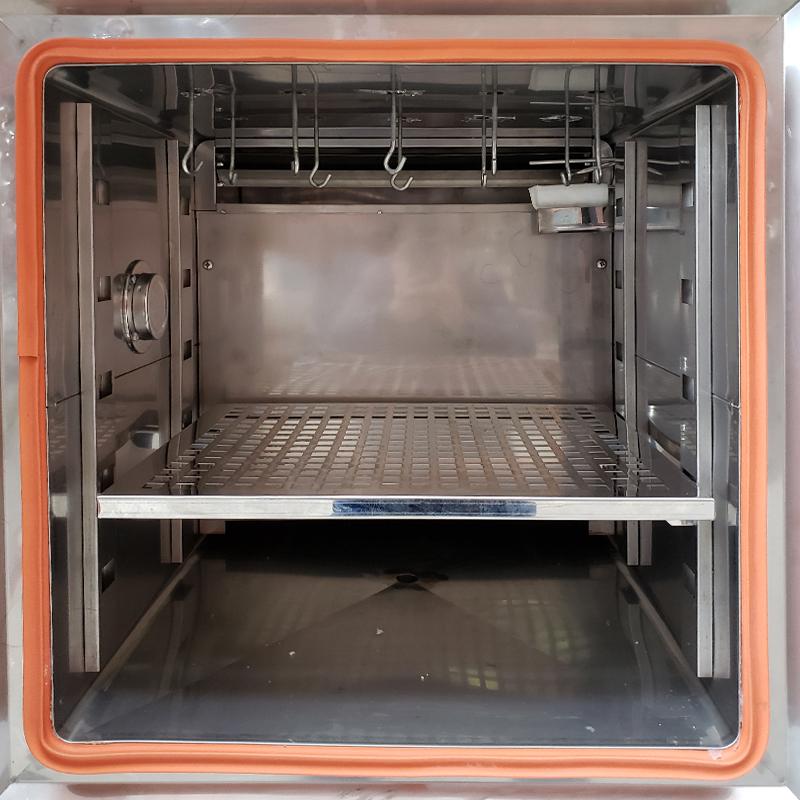

Inner box size: 500*400*500 (mm)
Outer box size: 1050*870*1700 (mm)
Test chamber performance
1. Analysis accuracy: temperature: ±0.01℃; humidity: ±0.1%RH,
2. Temperature range: -40℃～+150℃
3. Temperature fluctuation: ±0.5℃
4. Temperature uniformity: ±2°C
6. Heating rate: 2°C-5°C/min (from normal temperature to the highest temperature, non-linear no-load)
7. Cooling rate: 0.5°C-1.5°C/min (from normal temperature to the lowest temperature, non-linear no-load)
8. Humidity range: 20%～98%RH
9. Humidity fluctuation: ±2.0%RH
10. Humidity deviation: ±2%
11. Microcomputer control, LCD liquid crystal display;
12. Automatic timing and locking;
13. The station or 10 stations can be timed independently without interfering with each other.
14. Test steel plate: 10 sets (mirror stainless steel plate)
15. Test steel plate: 50 mm(L)×50 mm(B)×1.5 mm(D)
16. Timer: 10 groups, 0～9999 hours 59 minutes 59 seconds
17. Weights: 200g, 1000g, 10 each (including the weight of the loading plate) (the weights are made of stainless steel)
| name | brand | place of origin |
| Temperature Controller | TEMI850 | South Korea |
| Electromagnetic contactor | Taian | Taiwan, CHINA |
| thermal relay | Taian | Taiwan, CHINA |
| solid state relay | Aix | Hongkong |
| Intermediate relay | Aix | Hongkong |
| sensor | Song Qi | Taiwan, CHINA |
| Time Relay | Song Ling | Taiwan, CHINA |
| No fuse switch (air switch) | Shilin | Taiwan, CHINA |
| power switch button | Jin HongDa | Taiwan, CHINA |
| Liquid expansion gas switch | RAINBOW | South Korea |
| motor | Amada | Taiwan, CHINA |
| wind mill | Jian Yu | Taiwan, CHINA |
| compressor | Taikang | France |
| The electromagnetic valve | Sagi Palace | Japan |
| dryer | DANFOSS | Denmark |
| condenser | Zhongli | Taiwan, CHINA |
| Evaporator | Zhongli | Taiwan, CHINA |
| heater | Teide | Taiwan, CHINAese system |
| buzzer | Zhifeng | Taiwan, CHINA |
| condenser fan | Mal | Germany |
| Refrigerant | dupont | U.S. |
| Frozen oil | SUN | U.S. |
| Fluorescent lamp ballast | OSRAM | Germany |
| Heat Exchanger | ALFA LAVAL | Switzerland |
