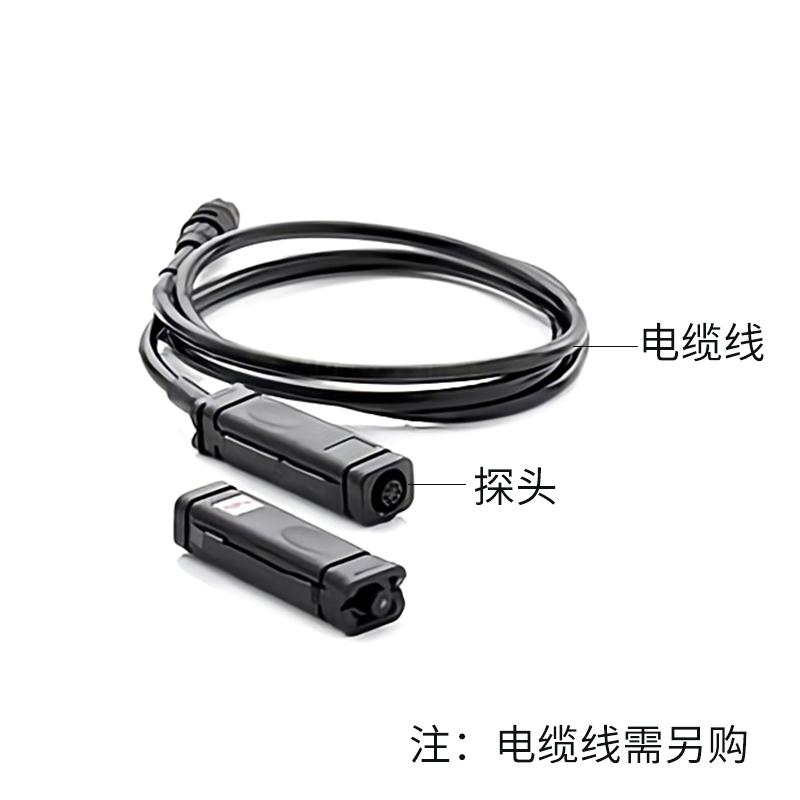

Nix Fe/NFE5mm dual-use Thickness Gauge probe for QNix7500 Thickness Gauge

The German QNix Fe/Nfe5mm Thickness Gauge probe is a supporting probe for the QNix7500 coating Thickness Gauge. It adopts the principle of magnetic Induction and eddy Current thickness measurement, and the thickness measurement range is 0~5000 microns.

Model：

7500 5FNF

Qnix

Contact

Details SPEC

Qnix 7500 5FNF probeSPEC

Qnix 7500 5FNF probeDetails

Qnix 7500 5FNF probePacking list

SKU: NB034873

Measurement principle: Magnetic Induction + eddy Current

Measurement range: 0~5000μm

margin of error: ±2~3.5％

Minimum measurement surface: Φ25mm

Minimum radius of curvature: Convex: 5mm; Concave: 25mm

thinnest substrate: Fe：200μm；NFe：50μm

Interface: USB or RS232

7500 5FNF

probe

Introduction

The German QNix Fe/Nfe5mm Thickness Gauge probe is a dual-purpose coating Thickness Gauge for magnetic induction and eddy current. The thickness measurement range is 0~5000 microns. The Fe/Nfe5mm Thickness Gauge probe is a matching probe for the QNix7500 anti-corrosion layer Thickness Gauge. , the measurement accuracy is 0~1999Î¼m: Â±(1Î¼m+2%); 2000~5000Î¼m: Â±3.5%.

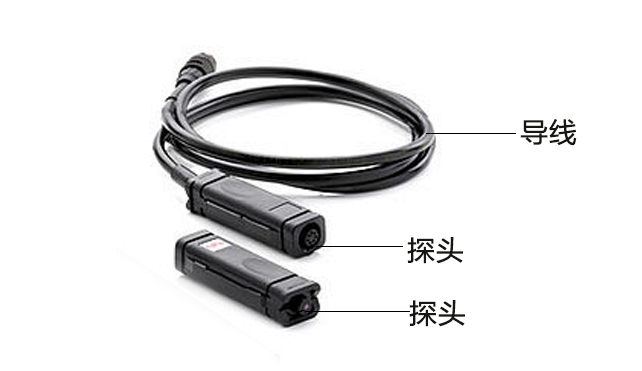

Qnix 7500 5FNF probe details Figure 1

Qnix 7500 probe model table

model	Fe-2000	Fe-5000	Nfe-2000	Nfe-5000	Fe/Nfe-2000	Fe/Nfe-5000
matrix	iron	iron	non-iron	non-iron	Iron/non-iron	Iron/non-iron
Probe form	Integrated/split	Integrated/split	Integrated/split	Integrated/split	Integrated/split	Integrated/split
Measuring range	0~2000Î¼m	0~5000Î¼m	0~2000Î¼m	0~5000Î¼m	0~2000Î¼m	0~5000Î¼m
measurement accuracy	0~1999Î¼m: Â±(1Î¼m+2%)	0~1999Î¼m: Â±(1Î¼m+2%) ; 2000~5000Î¼m: Â±3.5%	0~1999Î¼m: Â±(1Î¼m+2%)	0~1999Î¼m: Â±(1Î¼m+2%) ; 2000~5000Î¼m: Â±3.5%	0~1999Î¼m: Â±(1Î¼m+2%)	0~1999Î¼m: Â±(1Î¼m+2%) ; 2000~5000Î¼m: Â±3.5%
Minimum measuring surface	Fe: Ï25mm; NFe: Ï25mm
Minimum radius of curvature	Convex surface Ï5mm, concave surface Ï25mm
Minimum substrate thickness	Fe: 200Î¼m; NFe: 50Î¼m
