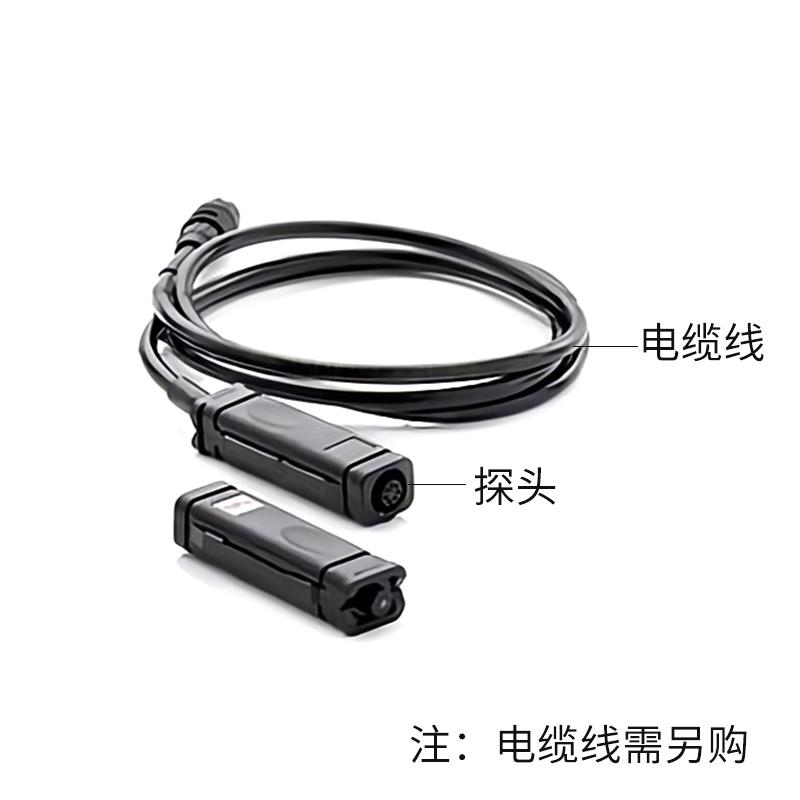

Germany NFe 5mm eddy current thickness probe QNix7500 Thickness Gauge
QNix NFe5mm Thickness Gauge probe is a dedicated thickness probe for QNix7500 Thickness Gauge, with a thickness measurement range of 5000 microns. This Thickness Gauge probe is a Thickness Gauge probe based on eddy current principle, and the measurement surface is not less than φ 25mm.
Model：
7500 NFe 5mm
Qnix
Qnix 7500 NFe 5mm probeSPEC
Qnix 7500 NFe 5mm probeDetails
Qnix 7500 NFe 5mm probePacking list
- SKU
- NB034875
- Measurement principle
- Eddy Current
- Measurement range
- 0~5000μm
- margin of error
- ±2~3.5％
- Minimum measurement surface
- Φ25mm
- Minimum radius of curvature
- Convex: 5mm; Concave: 25mm
- thinnest substrate
- 50μm
- Interface
- USB or RS232
7500 NFe 5mm
probe
Introduction
The German QNix NFe5mm Thickness Gauge probe is an eddy current coating Thickness Gauge probe with a thickness measurement range of 0~5000 microns. The NFe5mm Thickness Gauge probe is a matching probe for the QNix7500 anti-corrosion layer Thickness Gauge, with a measurement accuracy of 0~1999 μm. : ±(1μm+2%); 2000~5000μm: ±3.5%.
Qnix 7500 probe model table
| model | Fe-2000 | Fe-5000 | Nfe-2000 | Nfe-5000 | Fe/Nfe-2000 | Fe/Nfe-5000 |
| matrix | iron | iron | non-iron | non-iron | Iron/non-iron | Iron/non-iron |
| Probe form | Integrated/split | Integrated/split | Integrated/split | Integrated/split | Integrated/split | Integrated/split |
| Measuring range | 0~2000μm | 0~5000μm | 0~2000μm | 0~5000μm | 0~2000μm | 0~5000μm |
| measurement accuracy | 0~1999μm: ±(1μm+2%) | 0~1999μm: ±(1μm+2%) ; 2000~5000μm: ±3.5% | 0~1999μm: ±(1μm+2%) | 0~1999μm: ±(1μm+2%) ; 2000~5000μm: ±3.5% | 0~1999μm: ±(1μm+2%) | 0~1999μm: ±(1μm+2%) ; 2000~5000μm: ±3.5% |
| Minimum measuring surface | Fe: Ï25mm; NFe: Ï25mm | |||||
| Minimum radius of curvature | Convex surface Ï5mm, concave surface Ï25mm | |||||
| Minimum substrate thickness | Fe: 200μm; NFe: 50μm | |||||
