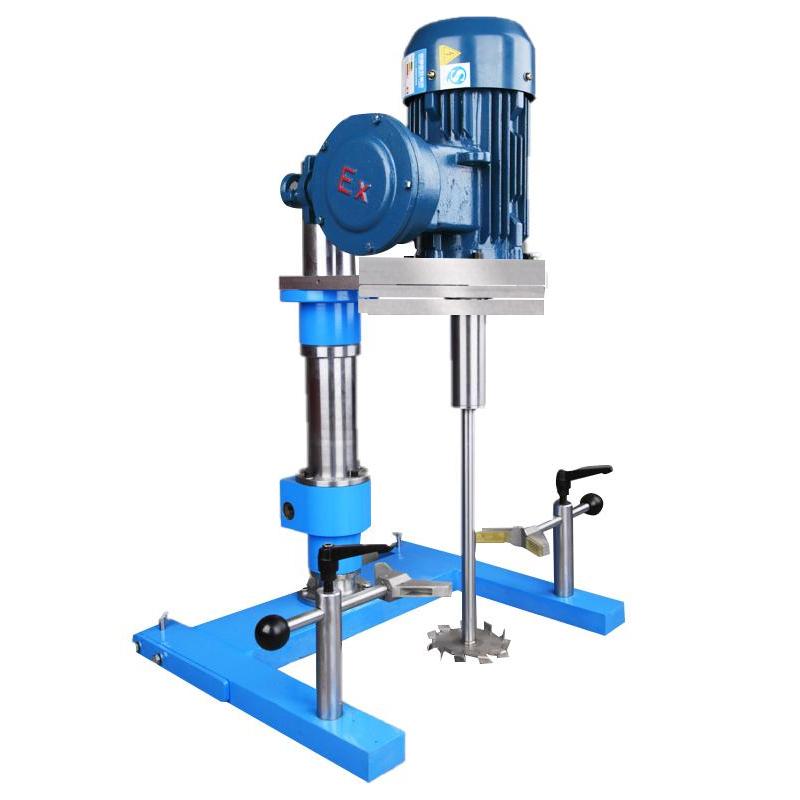

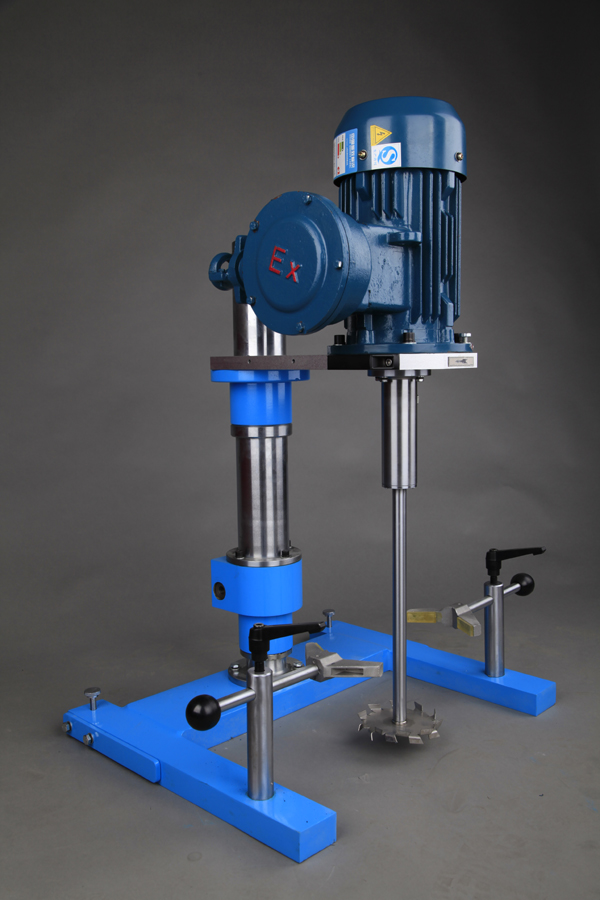

MODERNER WJ-2.2B Variable Speed Stirrer (Explosion-proof Frequency Converter)

WJ-2.2B (fully explosion-proof)

Variable Speed Stirrer

Explosion-proof frequency conversion, Motor power AC 2.2kW, Speed range 0~ 4000rpm, Impeller configuration φ 120mm, lifting stroke 420mm.

Device overview

WJ-2.2B variable speed mixer (explosion-proof frequency conversion) is a small mixing equipment used for dispersing, blending and stirring various liquid materials in explosion-proof occasions. This machine provides a single electrical control box and an explosion-proof and anti-corrosion operation button box (installed and connected by the user himself). It adopts an explosion-proof motor, frequency conversion speed regulation, and has functions such as stirring speed display.

structure

1. The electrical control of this machine adopts explosion-proof motor frequency conversion speed regulation, and the operation control adopts explosion-proof button box.

2. The lifting device is composed of a lifting column, a motor bracket, and a balance system. Release the locking handle on the lifting column and the motor will move up and down. Please lock the handle after moving to the proper position.

3. The stirring device is composed of stirring shaft, bearing sleeve, dispersing blade, etc., and is directly connected with the motor.

4. The barrel clamping device is composed of a barrel gripper, a locking handle, etc.

Packing list：Host X1, dispersion disc φ 120mmx1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
