QBY film pendulum Hardness Gauge YONGLIDA stopwatch count

QBY

Film pendulum Hardness Gauge

Compliant with GB/T1730 and ISO1552 standards, specially designed for testing the anti-deformation resistance of films. The instrument uses stopwatch counting to ensure accurate measurement of coating hardness, suitable for hardness testing of various Coatings, Paints and varnishes. Swing rod length 500mm, mass 120g

Introduction of QBY coating pendulum Hardness Tester

Yonglida QBY coating film pendulum Hardness Tester is a pendulum Hardness Tester with stopwatch counting. It is manufactured according to GB/T1730 and ISO1552 standards and is used to measure the deformation resistance of coating film. The pendulum rod length of QBY coating pendulum Hardness Tester is 500±1mm, and the total mass of the pendulum is 120±1g.

QBY coating pendulum Hardness Tester principle of use

Under specified conditions, the ratio of the time required for a pendulum with a certain mass to swing a certain amplitude on the coating film to the time required for the pendulum to swing the same amplitude on the glass. It is represented by 0~1.

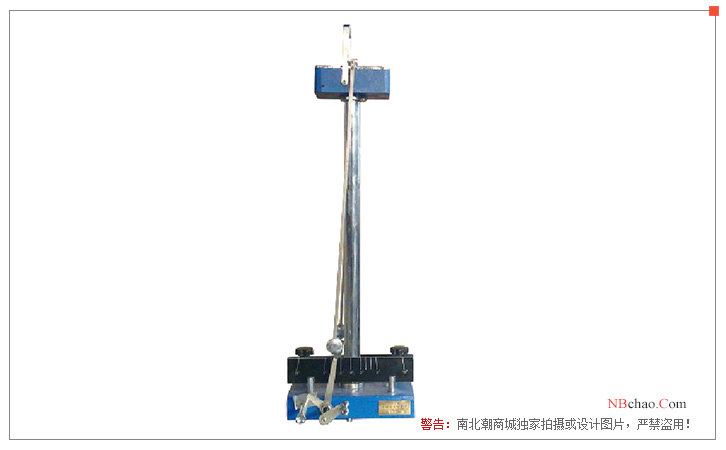

QBY coating pendulum Hardness Tester display

Packing list：host X1, manual X1, certificate X1, warranty card X1, windshield X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
