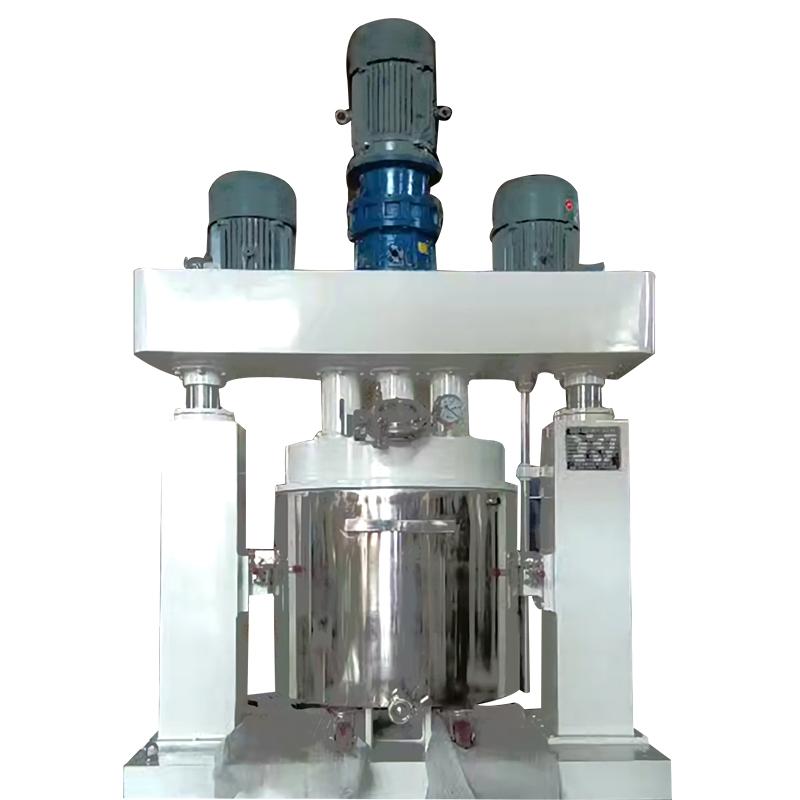

MUXUAN MXF-60L Three-axis dispersion mixing mixer, volume 36L

MXF-60L

Three-axis dispersion mixing mixer

Equipment introduction

There are three different types of agitators in the high-viscosity three-axis high-low speed vacuum mixing mixer kettle. One of the low-speed agitators rotates around the axis of the kettle body, and the other two high-speed stirring devices rotate around their own axes at different speeds. The material undergoes complex movements in the kettle and is subjected to strong shearing and mixing. The mountain-shaped wall scraper in the equipment rotates around the axis of the kettle body to scrape out the raw materials stuck to the wall and bottom and mix them to make the effect more satisfactory. The equipment has good sealing performance, can be electrically heated (water cooled) and vacuumed, and has good exhaust and defoaming effects. The cylinder head of the dispersing machine can be lifted and lowered hydraulically, and the cylinder body can be moved freely, making the operation very convenient. The form of the disperser mixer can be multi-layer paddle type, frame type, butterfly type, impeller type, etc. according to the material requirements.

1. The mixer is a high-efficiency, multi-functional, mandatory mixer. It usually adopts the mode of lifting the frame, cylinder cover and mixing blades, while the material cylinder moves.

2. The mixer consists of three motors. The middle motor drives the "mountain"-shaped edge and bottom scraping mechanism through a reducer. The two high-speed motors on the side are directly connected to the high-speed dispersing plate. The high-speed motor is usually equipped with a frequency converter for speed regulation to meet the requirements. Process requirements for various products.

3. Mixers usually use thickened steel plates and special sealing structures to adapt to vacuuming and pressurization situations.

4. The mixer can usually be configured with multiple movable material cylinders, which are usually designed into a jacket structure to achieve heating or cooling.

5. The mixer is usually equipped with a series of hydraulic extruders to realize the extrusion of paste materials.

The (trapezoidal) soft seal between the mechanical seal and the kettle body allows the material to be operated under vacuum;

The equipment kettle lid can be lifted and lowered hydraulically, and the cylinder can be moved freely, making it very convenient to operate. When faced with the production of high-viscosity materials, a matching hydraulic extruder will be customized for you. You only need to move the material cylinder to the extruder for extrusion. The material can be discharged and discharged, which is easy to operate and highly efficient.

Features

1. The kettle body adopts a unique seal, so that the materials can be mixed and stirred under vacuum, and air bubbles can be completely eliminated.

2. The kettle body can be heated by electric heating, steam heating and oil-water circulation heating. Cooling is achieved by jacketed coils. The frame-type mixer in the middle has a wall scraping shaft, which can scrape the wall while stirring. To achieve better mixing effect of materials.

3. The inner wall of the kettle is finished with a large vertical lathe to ensure that the movable scraper completely scrapes off the material on the inner wall and bottom of the kettle when rotating.

4. The two sets of high-speed disperser shafts in the kettle cause various materials to undergo strong shearing, dispersion and mixing, and the effect is ordinary

mixer several times.

5. The high-speed disperser in the kettle adopts variable frequency speed regulation, and different speeds can be selected according to different processes and different viscosities.

Application scope

Production capacity: 1-5000L

Application: mixing, reaction, dispersion, dissolution, conditioning and other processes of multi-component solid-liquid, solid-liquid, liquid-liquid phase materials, such as adhesives, sealants, mold glues, silicone sealants , organic silicone, polyurethane sealant, anaerobic adhesive, sealant, ointment, electronic slurry, lithium ion battery slurry, adhesive, pigment, ink, ointment paste material, grease, paint, paste cosmetics, additives For the preparation of various highly viscous materials, laboratory mixers are only used for experiments and small batch trial production.

Comparison of series parameters of high-low speed mixing and dispersing mixers

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
