QHD Pendulum damping Tester YONGLIDA meets GB and ISO standards
SEIn accordance with GB/T1730 and ISO1522 standards, the instrument provides accurate hardness data by measuring the damping characteristics of films through the principle of Konig swing bar.
$484.00/set
PromotionLoading...
Coupon
Model：
YongLiDa QHD Pendulum damping TesterSPEC
YongLiDa QHD Pendulum damping TesterDetails
YongLiDa QHD Pendulum damping TesterPacking list
- SKU
- NB003491
- Swing bar type
- Konig摆
- Konig pendulum Mass
- 200g
- Konig oscillation period
- 1.4±0.02S
- Swing Time on Konig Glass
- 250±10S
- Number of Swings on Konig Glass
- 356±14
- Konig start and end swing angle
- 6°/3°
- Application standard
- GB/T1730、ISO1522
QHD
Pendulum damping Tester
In accordance with GB/T1730 and ISO1522 standards, the instrument provides accurate hardness data by measuring the damping characteristics of films through the principle of Konig swing bar.
Introduction of QHD pendulum damping Tester
Yonglida QHD swing rod damping Tester is a Hardness Tester designed according to GB/T1730 and ISO1522 standards. QHD swing rod damping Tester is mainly used for damping on single or multi-layer coatings of paints, varnishes and related products. Experiment to test the hardness of the paint film.

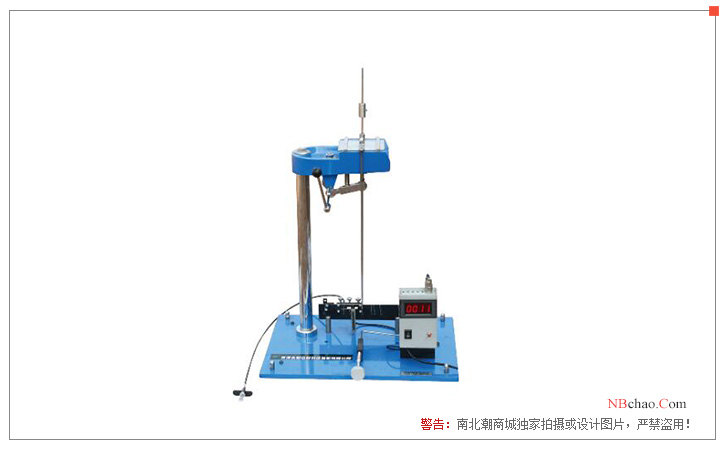

Display of QHD pendulum damping Tester
FAQ
QWhat standards are used to regulate pendulum damping Hardness testing?
A
Some relevant standards include GB/T 1730 (Chinese national standard), ISO 1522 (international standards organization), ASTM D4366 (American Society for Testing and Materials), etc., which specify the methods and requirements of hardness testing.
QQHD pendulum damping tester is how to measure the film Hardness?
A
The QHD pendulum damping tester expresses the hardness of the paint film by swinging the swing rod on the paint film and recording the swinging damping time (in seconds). The principle is that according to the interaction between the swing rod and the surface of the paint film, the softer the paint film, the faster the swing attenuation, and the higher the Hardness, the slower the swing attenuation. Using Koenig and Platinum Saatz pendulums with different structures and parameters will produce different test results, so only one swing rod can be selected for testing.
QIs the P pendulum of Yonglida QHD Pendulum tester to be purchased separately?
A
Hello, yes, you can consult the customer service of NBchao. Com Mall to buy.
QDoes the YONGLIDA Pendulum damping tester meet the ISO1522 standard?
A
The QHD Pendulum damping tester can refer to
