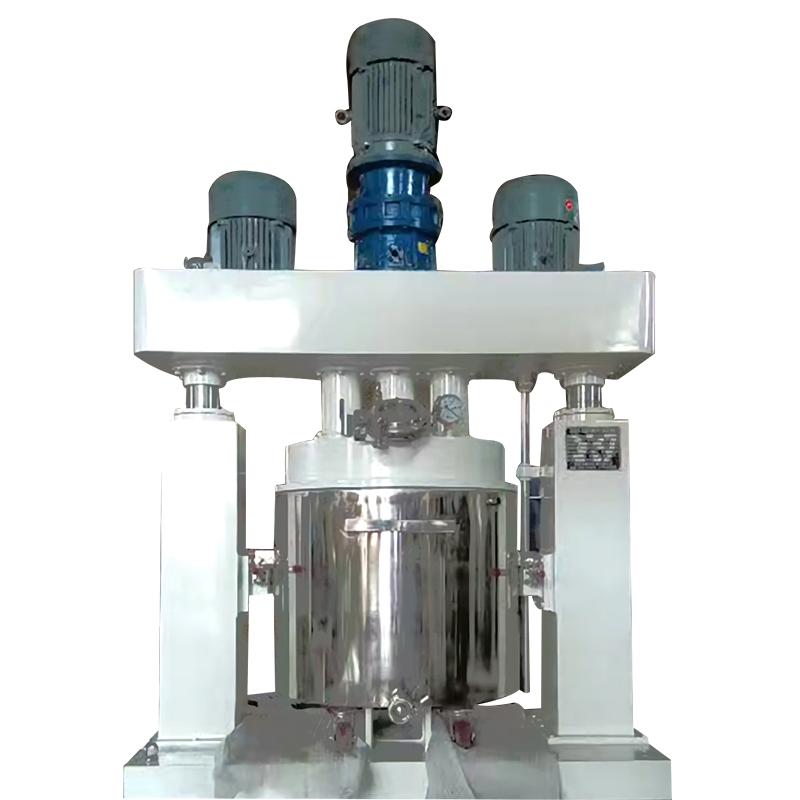

MUXUAN MXF-5000L Vacuum dispersion mixing mixer, volume 2400L

MXF-5000L

Three-axis dispersion mixing mixer

Introduction to the device

High viscosity three-axis high-low speed vacuum stirring mixer There are three different forms of agitators in the kettle, one of which is rotating around the axis of the kettle, and the other two high-speed stirring devices rotate around their own axis at different speeds, so that the material makes complex movements in the kettle, and is subjected to strong shearing and mixing. In the equipment, the Yamagata wall scraper rotates around the axis of the kettle body, scraping out the raw materials that stick to the wall and the bottom to participate in the mixing, so that the effect is more satisfactory. The equipment has good sealing, can be electrically heated (water cooled) and vacuumed, and has a good exhaust defoaming effect. The cylinder head of the dispersing machine can be hydraulically lifted, and the cylinder block can be moved freely, which is very convenient to operate. The form of disperser agitator can be multi-layer paddle type, frame type, butterfly type, impeller type, etc. according to the material requirements.

1. The mixer is a kind of high-efficiency, multi-functional, compulsory mixer, he usually adopts the mode of lifting the frame, cylinder head and mixing paddle, while the material cylinder moves.

2. The mixer is composed of three motors, the motor in the middle drives the "mountain" shaped scraping and scraping mechanism through the reducer, and the two high-speed motors on the side are directly connected to the high-speed dispersion plate, and the high-speed motor is usually equipped with a frequency converter to regulate the speed to meet the process requirements of various products.

3. The mixer usually adopts thickened steel plate and special sealing structure to adapt to the occasion of Vacuum Pumping and pressurization.

4. The mixer can usually be configured with multiple movable tanks, which are usually designed with a jacket structure to achieve heating or cooling.

5. The mixer is usually equipped with a series of hydraulic extruders to realize the extrusion of paste materials.

(trapezoidal) soft seal between the mechanical seal and the kettle body, so that the material can be operated under vacuum;

The equipment kettle cover can be hydraulically lifted, the cylinder can be moved freely, the operation is very convenient, in the face of high viscosity material production, will be customized for you to match the hydraulic extruder, only need to move the cylinder to the extruder, extrusion discharge, easy operation, high efficiency.

Equipment features:

1. The kettle body adopts a unique seal, so that the material can be mixed and stirred under vacuum, and the bubbles are completely removed.

2. The kettle body can be electrically heated, steam heated and oil-water circulating heating. The jacketed inner coil allows for cooling. The middle frame agitator has a scraping shaft, which can scrape the wall at the same time. Make the material achieve better mixing effect.

3. The inner wall of the kettle is finished by a large vertical lathe, so as to ensure that the material on the inner wall of the kettle and the bottom of the kettle is completely scraped off when the movable scraper rotates.

4. The dispersers of two groups of high-speed dispersion shafts in the kettle make all kinds of materials be sheared and dispersed and mixed by strong columns, and the effect is ordinary

Mixer several times.

5. The high-speed disperser in the kettle adopts frequency conversion speed regulation, and different speeds can be selected according to different processes and different viscosities.

Application

Production capacity: 1-5000L

Application field: multi-component solid-solid-liquid, solid-liquid, liquid-liquid phase material mixing, reaction, dispersion, dissolution, quenching and tempering processes, such as adhesives, sealants, mold glue, silicone sealants, silicone gels, polyurethane sealants, anaerobic adhesives, sealants, ointments, electronic pastes, lithium-ion battery slurries, adhesives, pigments, inks, ointment paste materials, greases, paints, paste cosmetics, additives and other high viscosity preparation, laboratory mixers are only used for experimental small batch trial production.

High-low speed mixing and dispersionComparison of mixer series parameters

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
