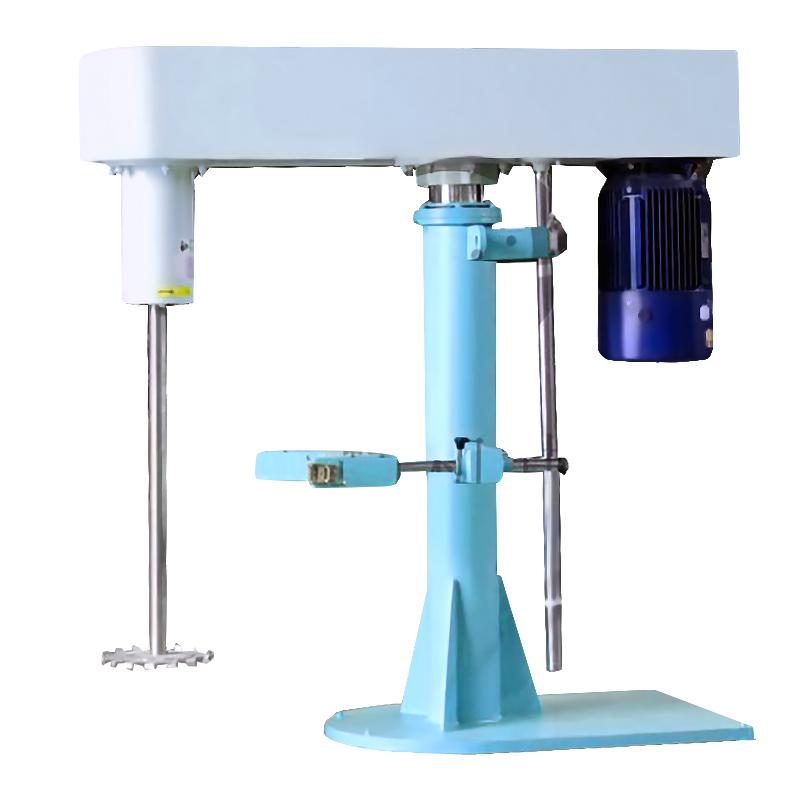

MUXUAN MXF-55 Hydraulic Lifting Disperser 2500L/55KW

MXF-55

Hydraulic Lifting Disperser

Introduction

MXF series hydraulic lifting and dispersing machine has the function of dispersion and stirring, which belongs to the mass operation products; the equipment has frequency converter stepless speed regulation, which can run for a long time, stable operation and low noise; the mixing disc is easy to disassemble, and the dispersion disc of different specifications and forms can be replaced according to the process characteristics; the lifting structure adopts the hydraulic cylinder as the actuator, the lifting is stable, the integrated oil tank is selected, and the environmental protection is free without leakage; the product is the preferred equipment for solid-liquid dispersion and mixing

Scope of application

It is suitable for dispersion, stirring and mixing of product materials in biological, food, coating, ink, textile auxiliaries, cosmetics, lubricating oils, pesticides and other industries.

Product Features

1. Beautiful appearance, easy operation, flexible and stable lifting, firm structure and durability;

2. Complete varieties to meet the different production needs of users;

4. The hydraulic lifting type is especially suitable for high-power dispersing machine, with stable lifting, firm structure and long service life;

5. According to the process requirements, explosion-proof and ordinary type, atmospheric pressure type or closed vacuum type can be selected

6. The frame body is made of carbon steel paint, and the sealed type has a sealed pull cylinder standard matching design, and is equipped with a double-end mechanical seal as standard, and the non-sealed type has no mechanical seal design, and the non-sealed pull cylinder and the cylinder head are optional. The explosion-proof type has an external standard operation box, and the non-explosion-proof operation design is integrated with the electric control box.

Advantages

1. High dispersion efficiency

The speed of the equipment can reach 2930rpm (high power 1450rpm), and the linear speed is more than 20m/s, which can quickly disperse the powder evenly into the liquid material due to the high shear force, and the material is evenly dispersed and forms a good suspension effect.

2. Easy to operate

The equipment is used as a lifting actuator through the oil cylinder, and the dispersing machine is controlled by a control valve to rise, stop and descend, which is simple to operate and has high stability; the dispersion disc is fixed with the hexagon bolt and the main shaft, which can be easily and quickly disassembled and replaced, and the cleaning is easy, and different dispersion discs can be replaced according to the process conditions to achieve a better dispersion effect; with different clamping methods (belt, hand crank, pneumatic), the mixing drum can be quickly fixed to prevent the displacement of the drum in the work and cause accidents　

3. Strong non-standard

Various types of non-standard products can be customized, such as explosion-proof type, airtight type, type with lifting cover, coaxial/biaxial composite type, multi-cylinder type, kettle type, etc., and the material can be customized according to requirements.

Comparison of parameters of MXF series hydraulic lifting disperser

☆ The above are the technical parameters of the standard product, with "water" as the medium test, and the input Voltage can be customized according to the needs of 110V/220V/380V/415V, etc.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
