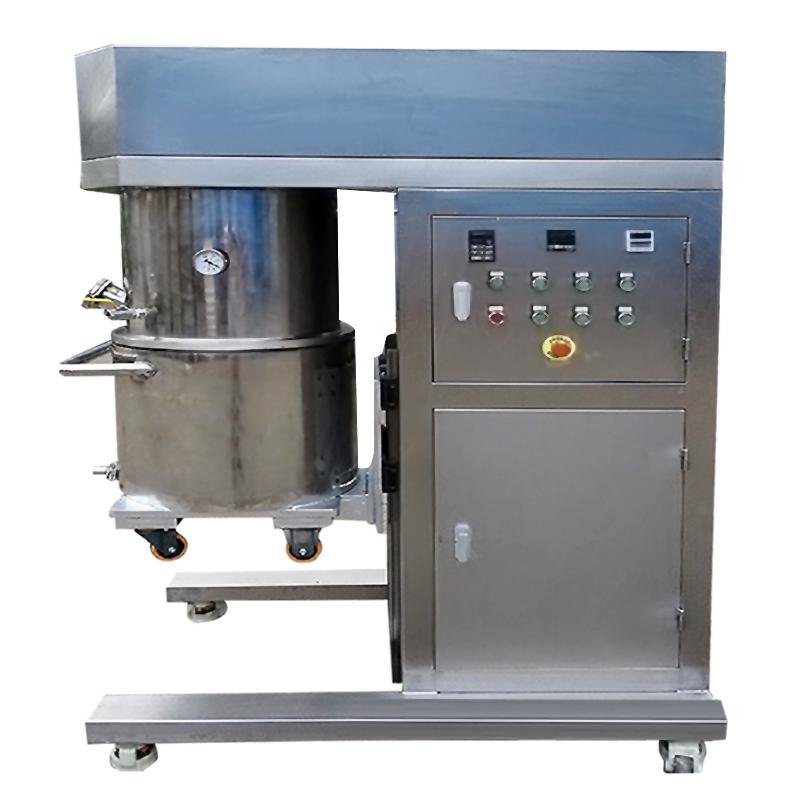

MUXUAN XJ-100L Production Planet Stirrer 80L

XJ-100L

Planet Stirrer

Introduction to the device

XJ series double planetary mixing mixer is a multi-functional equipment, suitable for electronic paste, lithium-ion battery slurry, adhesive, mold glue, silicone sealant, silicone gel, polyurethane sealant, anaerobic glue, pigment, ink, ointment and other electronic chemical, building materials, pesticides, food industry liquid and liquid, solid and liquid material mixing reaction, dispersion, dissolution emulsification and other physical and chemical reactions.

Application

Production capacity: 1-1000L

Application field: multi-component solid-solid-liquid, solid-liquid, liquid-liquid phase material mixing, reaction, dispersion, dissolution, quenching and tempering processes, such as adhesives, sealants, mold glue, silicone sealants, silicone gels, polyurethane sealants, anaerobic adhesives, sealants, ointments, electronic pastes, lithium-ion battery slurries, adhesives, pigments, inks, ointment paste materials, greases, paints, paste cosmetics, additives and other high viscosity preparation, laboratory mixers are only used for experimental small batch trial production.

Operating Principle

The low-speed stirring anchor makes the material turn up and down in the closed container. Shearing and mixing, the high-speed operation of the toothed dispersion disc and the mixed material produce a strong impact and shear, the agitator rotates around the axis of the kettle body at the same time, and rotates around its own axis at different speeds, so that the material does complex movement in the kettle, subject to strong shearing and rubbing, in addition, the wall scraper in the equipment rotates around the axis of the kettle, scrapes the material stuck to the wall to participate in the mixing, so that the effect is more satisfactory, the kettle body adopts a special sealing structure to carry out the vacuum of the pressurizer, which has a good exhaust defoaming effect, the kettle body jacket can be heated and cooled according to the needs of users, and the equipment cylinder head is hydraulically lifted, and the cylinder body can be moved freely and the operation is very convenientIn addition, the stirring paddle and scraper can be completely separated from the cylinder block as the beam rises, and it can be cleaned cheaply.

Structural composition

The double planetary mixer is divided into a geared motor, a cap, a planetary carrier, a mixer, a wall scraper, a barrel, a double-column hydraulic lifting system, a vacuum system and a frame. It is a new type of mixing device developed by innovation and improvement on the basis of digesting and absorbing domestic (CN) and foreign professional technology.

This device can work under vacuum, and can continuously discharge water and other volatiles, so it can be used as a detachableGas kettle use. The drum can be heated or cooled by oil and water circulation or steam as required. addThe thermal temperature is displayed by a temperature controller on the control panel.

Comparison of parameters of XJ series double planetary mixing mixer

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
