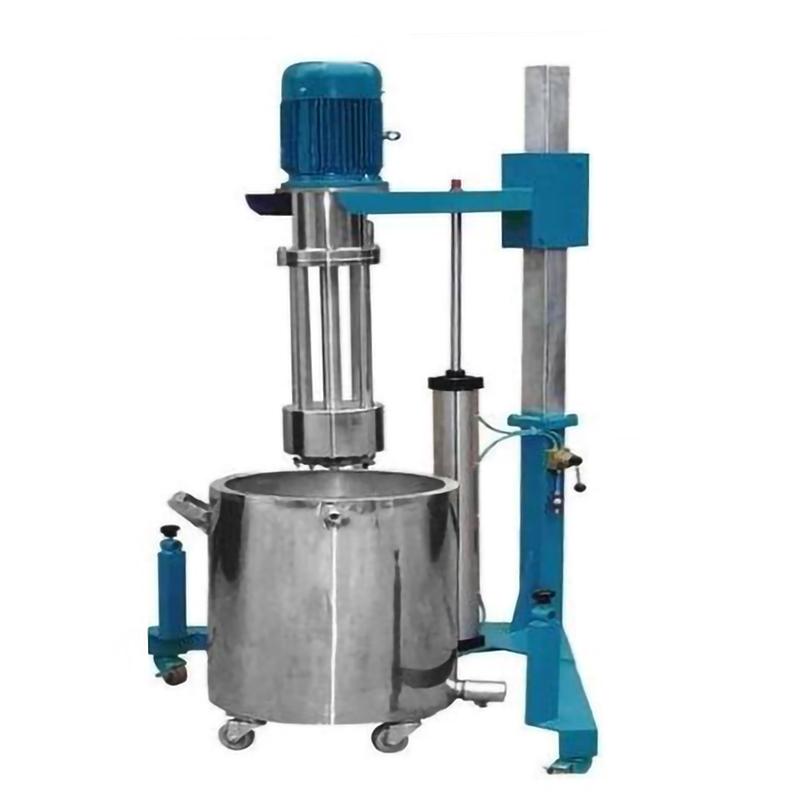

MUXUAN MXY-7.5 Wet Basket Grinder 7.5kw/40-200L Pneumatic Lifting

MXY-7.5

Basket Grinder

Introduction to the device

Pneumatic lifting basket mill is an economical wet dispersed grinding equipment developed for scientific research institutions and enterprises and institutions. The equipment can run for a long time, the speed is stable and the noise is low, and the two production processes of dispersion and grinding are completed at the same time, so as to effectively reduce the fineness of medium and low viscosity materials in a short time.

Scope of application

【Material viscosity】:≤5000cps(mPas)

[Applicable materials]: materials with high fineness requirements, such as interior wall latex paint, industrial paint, wood paint, various color pastes, water-based oil-based inks, pesticide suspensions, etc.

Operating Principle

The motor of the pneumatic lifting basket mill drives the lever and the bottom dispersion disc to rotate at high speed, so that the upper part of the dispersion disc and the inside of the basket cavity form a vacuum, and the slurry is sucked into the basket grinding cavity. The grinding medium in the paddle drive cavity produces force in all directions, and the particles in the material are constantly collided and rubbed by the medium, and the particle size becomes smaller, and the particle size range becomes narrower; the high-speed operation of the dispersion disc produces vortex to suck out the material in the cavity and circulate to the feed, which has a very significant dispersion and mixing effect, and realizes the cylinder work through the air valve rotation or solenoid valve jog control, and uses the cylinder lifting to drive the motor and the working head to lift.

Advantages

● High grinding efficiency and good product fineness

The speed of the equipment can reach 2800rpm, the powerful arc impeller kinetic energy drive, and the zirconia lever make the grinding medium in the cavity move irregularly, collide and friction with each other at high speed, so that the particle size of the powder becomes smaller rapidly;

● Easy to operate and easy to clean

The equipment comes with an energy-saving inverter, which can directly control the start and speed regulation of the equipment; the equipment uses the cylinder as a lifting actuator, and has a pneumatic control valve to control the rise, stop and fall of the grinding device, with low air consumption and simple operation; with a manual barrel clamping device, the grinding barrel can be quickly fixed to prevent the barrel from displacement and accidents caused by displacement in the work; the frame is equipped with casters, which occupies a small space and is easy to move.

● The temperature rise is small, and the product is stable

The ingredient barrel is equipped with a double-layer cooling jacket, which is cooled by water during the operation of the equipment, which has a good cooling effect and a small conventional temperature riseAt 10º, the grinding chamber can be customized with cooling.

● Strong non-standard

Non-standard explosion-proof type can be customized, the grinding cavity can be customized with zirconia material, and the equipment material can be customized SS316L stainless steel.

Comparison of basket sand mill parameters

◆ The material contact part material can be customized according to the material characteristics of 304/316/Hastelloy/titanium-molybdenum-nickel alloy and other materials.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
