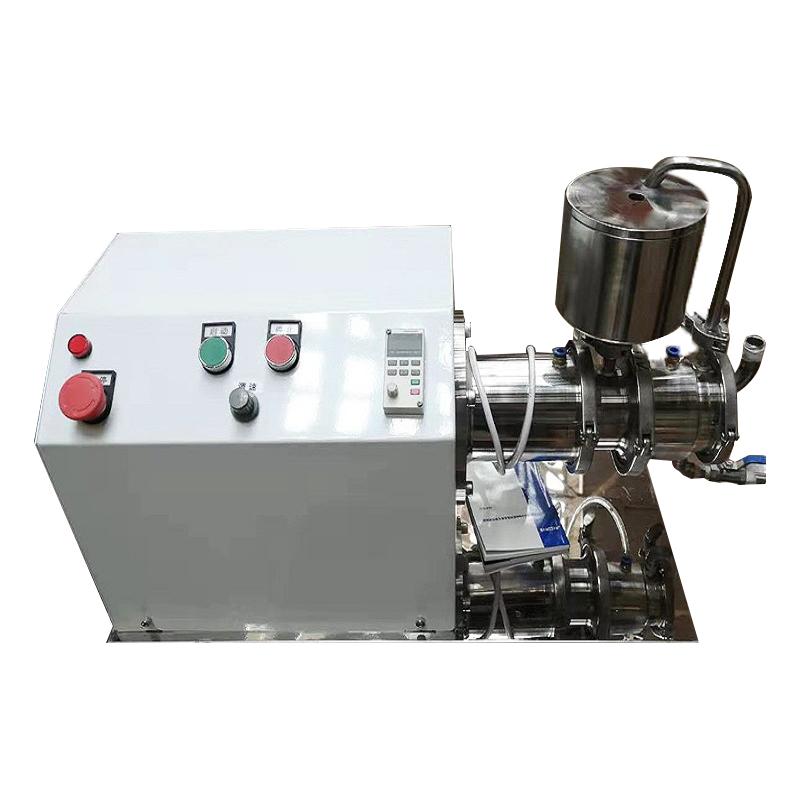

MUXUAN SWS-B2 laboratory pin horizontal sand mill 4KW

SWS-B2

Laboratory pin horizontal sand mill

Introduction to the device

The laboratory rod pin horizontal grinding mill is a high-performance wet grinding equipment. The equipment adopts a continuous Operating Mode, and selects imported ultra-fine pure zirconia beads, which has the advantages of high grinding efficiency, good grinding fineness, wide range of use and good wear resistance. At the same time, the cavity is lined with zirconia to reduce pollution, increase the cooling area and efficiency, solve the problem of difficult heat dissipation, and self-circulation system, no need to be equipped with a transfer pump, reduce the difficulty of cleaning. It is widely used in coatings, inks, pigments, color pastes, cosmetics, pesticides, and other industries.

Scope of application

[Applicable Materials]: Materials with high fineness requirements such as coatings, pigments, cosmetics, interior wall latex paints, industrial paints, wood paints, various color pastes, water-based oil-based inks, pesticide suspensions, etc.

Features

Easy to operate: As a test machine, it is small in size, high in efficiency and strong in operability;

Wide range of viscosity This equipment is standard and suitable for 6000cP or less;

Stable performance As a standard model, this experimental equipment has a stable structure and high reliability;

Self-circulation system There is no need for a separate transfer pump, which reduces the difficulty of cleaning.

Advantages

The grinding efficiency is high and the product fineness is good

The speed of the equipment can reach 3000rpm, the powerful arc impeller kinetic energy drive, and the zirconia lever make the grinding medium in the cavity move irregularly, collide and friction with each other at high speed, so that the particle size of the powder becomes smaller rapidly;

Easy to operate and easy to clean

The equipment comes with an energy-saving inverter, which can directly control the start and speed regulation of the equipment; manually pour the materials that need to be ground into the feeding hopper, the equipment has a self-circulation function, and the grinding process can be completed by opening the machine, and the materials can be discharged from the bottom discharge port of the grinding chamber after the grinding is completed, and the cavity is lined with zirconia to reduce pollution; the cooling area and efficiency are increased to solve the problem of difficult heat dissipation; the self-circulation system does not need to be equipped with a transfer pump to reduce the difficulty of cleaning.

The temperature rise is small, and the product is stable

The grinding chamber is equipped with a double-layer cooling jacket, which is cooled by water during the operation of the equipment, which has a good cooling effect

Strong non-standard and long service life

The overall stainless steel design is beautiful and durable. Double-acting mechanical seals are used for durability and leak-free, reducing maintenance costs. Non-standard explosion-proof type can be customized, the grinding cavity can be customized with zirconia material, and the equipment material can be customized SS316L stainless steel

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
