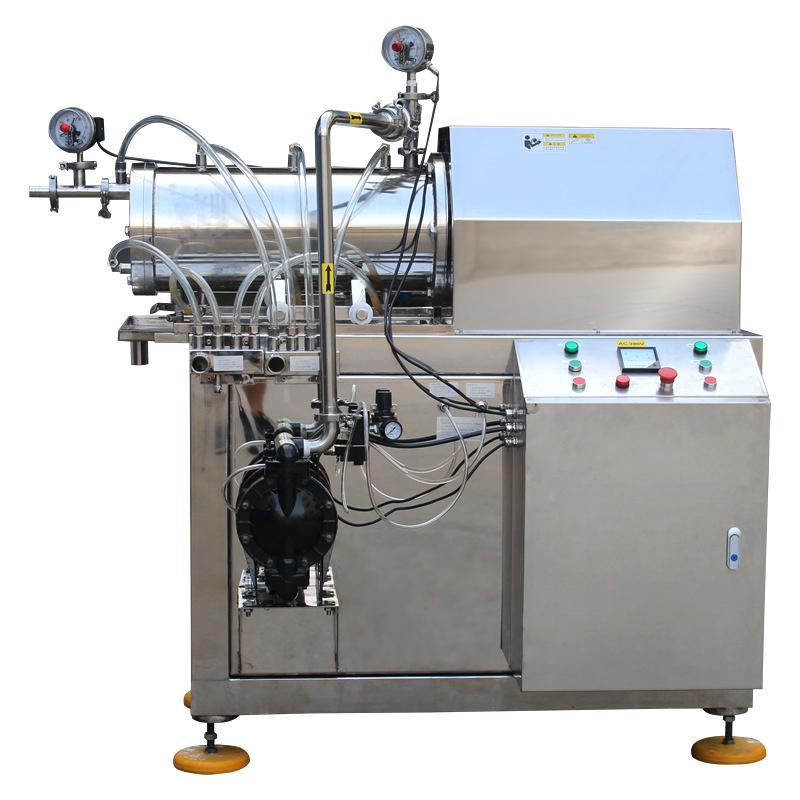

MUXUAN BWS-60 Sand Mill 37kw/60L

BWS-60

Stick pin sand mill

Introduction to the device

The rod pin sand mill is a closed wet grinding equipment with continuous Operating Mode. The equipment is simple to operate, good reliability, complete specifications, is one of the more widely used wet grinding equipment in the market, the performance and structure are very mature; the sealing structure adopts double-end mechanical seal, and is equipped with double-end mechanical seal cooling system, which has reliability and durability; with temperature and pressure monitoring and protection, can ensure product quality; the selection of zirconium oxide beads has the advantages of high grinding efficiency, good grinding fineness, wide range of use and good wear resistance.

Applicable materials

[Material viscosity]: ≤20000cps [Production capacity]: 20-2000L [Application field]: It is suitable for the dispersion and grinding of product materials in biological, cosmetic, food, coatings, inks, color pastes, dyes, pesticides and other industries.

[Applicable materials]: materials with a viscosity of less than 20000cps and high grinding fineness requirements, such as latex paint, industrial paint,

More than 1,000 kinds of materials such as color paste, water-based ink, pesticide suspension, lithium battery slurry, etc

Operating Principle

The Diaphragm Pump forms a circulating grinding process between the material in the tank and the grinding chamber. The grinding medium with high filling rate in the cavity is driven by the rotation of the dial to produce irregular movement in all directions, and the particles in the material are constantly collided and rubbed by the grinding medium, and at the same time, the screen separates the material and the grinding medium, and the material continuously circulates from the tank to the grinding chamber to achieve the purpose of smaller particle size and narrower particle size range.

Advantages

1. The energy consumption ratio is low and the cost performance is high

The equipment drive adopts the motor to transmit the power to the spindle through the large and small pulleys, which is easy to start, and the grinding disc adopts a special disc structure, which consumes less power, and is a cost-effective product in the grinding machine equipment.

2. Easy to operate and clean

The equipment has an on-site operation box, integrated design with the rack, easy to operate, with a bead bucket, the grinding chamber is easy to connect and disassemble with the frame, and is equipped with a pulley device to detach the cylinder, which can effectively clean the cavity and zirconium beads for materials of different colors and varieties.

3. The product is stable

The grinding chamber is equipped with a special cooling water jacket, which is cooled by water during the operation of the equipment, which has a good cooling effect, and the equipment has temperature and pressure monitoring, which can set the "protection value" and has stable quality.

4. The specifications are complete and can be customized non-standard

The equipment specifications range from 10L to 100L, with complete specifications, non-standard customized explosion-proof type, and polyurethane lining of grinding cavity can be customized.

Comparison of parameters of rod pin sand mill series

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
