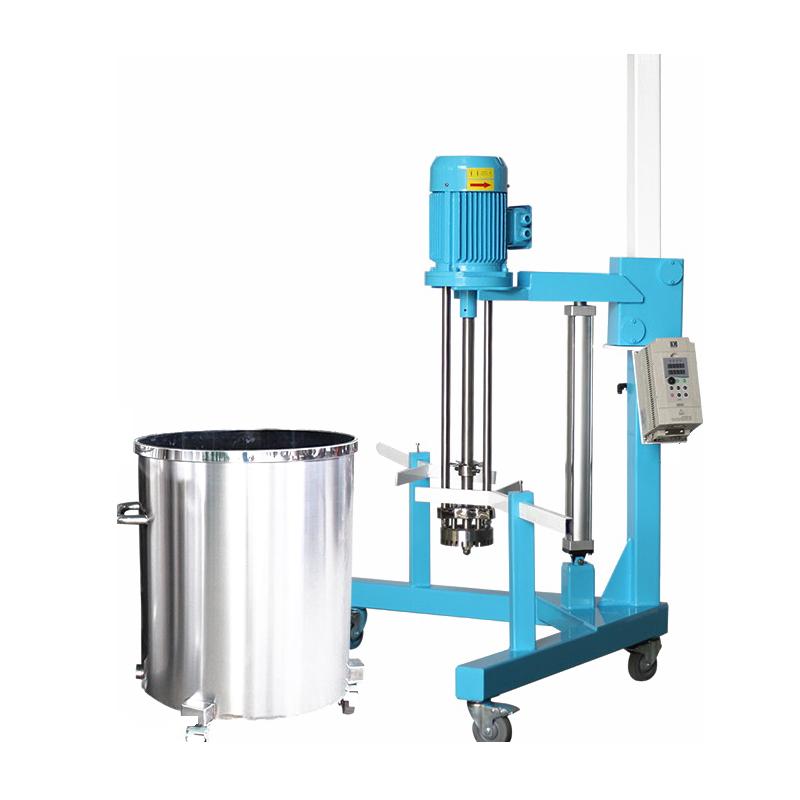

MUXUAN MXR-3 High Shear Mulser 3KW Pneumatic Lift

MXR-3

High Shear Mulser

Introduction to the device

Pneumatic/manual bracket lifting, batch high shear emulsifier is an emulsifier fixed on various containers, or installed on pneumatic/manual bracket lifting, convenient for movement and lifting of the main engine, can be made into a closed vacuum type, and cooperate with other kettle equipment to achieve automatic production of the system. The particle size of liquid-liquid and solid-liquid materials is narrowed by mechanical external force, so that one phase is evenly distributed into another phase or more phases, so as to achieve the effect of refinement, homogenization and dispersion, so as to form a stable emulsion state. The working head is made of new two-way materials and stainless steel forgings. There are two kinds of upper and lower positions, and three installation methods are adopted: vertical, offset and oblique. In pressurized applications, double-acting mechanical seals with sealed self-lubricating systems are used.

Scope of application

【Material viscosity】:≤8000 cps(mPas)

[Production capacity]: 30L-300L

[Application field]: It is suitable for the dispersion, emulsification and homogenization of product materials in biological, food, coatings, inks, textile auxiliaries, cosmetics, lubricating oils, pesticides and other industries.

[Applicable materials]: solid and liquid, liquid and liquid mixed to form solution, colloid, suspension or emulsion can be used, such as juice, soup, dairy products, tissue homogenate, cosmetics, surfactants, asphalt, emulsifiers, oilfield chemicals and other more than 1,000 kinds of materials.

Applicable process

It is used for simple operation in multiple open containers, or can be made into a closed vacuum type, which can independently complete the process of mixing, dispersing, emulsifying, crushing, homogenizing, and reacting on different containers, and can do cleaning work in the interval of each batch of material processing. The processing capacity of each batch is from 30 liters to 300 liters, which is suitable for pilot batch, material dispersion, homogenization, emulsification, crushing, polymerization, suspension, dissolution.

Features

1. The design of the whole machine is reasonable, the structure is simple, and it is equipped with brake casters, which is flexible and convenient to move;

 2. Excellent material selection, lower noise, and more stable operation to ensure the high quality of the whole machine;

 3. Compressed air is used as the lifting power, and the manual hydraulic cylinder is used for lifting, no leakage pollution, explosion-proof;

4. Suitable for small and medium-sized batch production, space-saving;

5. Suitable for motor batch emulsifier below 11KW;

6. The frame body is made of carbon steel brush paint, and it can also be customized into stainless steel surface polishing;

Advantages

High efficiency and good product quality

Quickly distribute a phase uniform material into another or a variety of materials to achieve the effect of refinement, homogenization, dispersion and emulsification, and the product is stable and not easy to stratify.

High machining accuracy and long life

The rotor stator is made of forging material and CNC numerical control, the rotor stator gap is small, the shear fineness is good, the emulsification and dispersion efficiency is high, and the cooling Mixing Tank is optional, so that the equipment can run for a long time and the temperature rise is low.

Modular design, easy maintenance

The equipment has a compact structure, adopts modular design, electric lifting, beautiful atmosphere, labor-saving, installation-free, according to the viscosity of the material, select and match the appropriate single/Mixing Tank, which can meet the use of different Operating Conditions.

Strong non-standard

Various types of non-standard products can be customized, such as explosion-proof type, airtight type, manual lifting type, etc., and the material can be customized according to the requirements of SS304/SS316L/Hastelloy/titanium-molybdenum-nickel alloy and other materials. At the same time, different emulsifying heads can be customized according to the viscosity of the material to meet the needs of the laboratory or small batches.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
