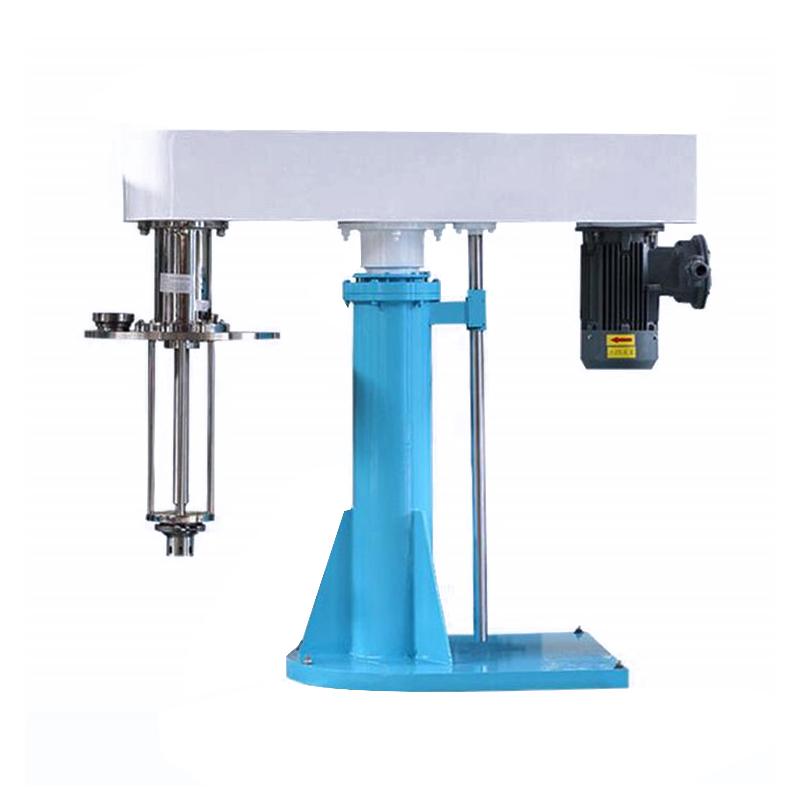

MUXUAN MXR-30 Hydraulic Lifting High Shear Mulser 30KW/1200L

MXR-30

Hydraulic Lifting High Shear Mulser

Introduction to the device

The hydraulic lifting high shear emulsifier can be applied to various containers, and can be made into a closed vacuum type, which can be used with other kettle equipment to realize the automatic production of the system. The particle size of liquid-liquid and solid-liquid materials is narrowed by mechanical external force, so that one phase is evenly distributed into another phase or more phases, so as to achieve the effect of refinement, homogenization and dispersion, so as to form a stable emulsion state. The working head is made of new two-way materials, stainless steel forgings, and the closed vacuum type adopts double-end mechanical seals with sealed self-lubricating system.

Scope of application

【Material viscosity】:≤8000 cps(mPas)

[Application field]: It is suitable for the dispersion, emulsification and homogenization of product materials in biological, food, coatings, inks, textile auxiliaries, cosmetics, lubricating oils, pesticides and other industries.

[Applicable materials]: solid and liquid, liquid and liquid mixed to form solution, colloid, suspension or emulsion can be used, such as juice, soup, dairy products, tissue homogenate, cosmetics, surfactants, asphalt, emulsifiers, oilfield chemicals and other more than 1,000 kinds of materials.

Applicable process

It is used for operation in multiple open containers, or can be made into a closed vacuum type, which can independently complete the process of mixing, dispersing, emulsifying, crushing, homogenizing, and reacting on different containers, and can do cleaning work in the interval of each batch of material processing. It is suitable for dispersion, homogenization, emulsification, crushing, polymerization, suspension and dissolution of materials.

Features

1. Beautiful appearance, easy operation, flexible and stable lifting, firm structure and durability;

2. New structural design, different intrinsic quality;

3. Complete varieties to meet the different production needs of users;

4. The hydraulic lifting type is especially suitable for high-power and high-shear emulsification, with stable lifting, firm structure and long service life;

5. According to the process requirements, explosion-proof and ordinary type, atmospheric pressure type or closed vacuum type can be selected

6. The frame body is made of carbon steel paint, and the sealed type has a sealed pull cylinder standard matching design, and is equipped with a double-end mechanical seal as standard, and the non-sealed type has no mechanical seal design, and the non-sealed pull cylinder and the cylinder head are optional. The explosion-proof type has an external standard operation box, and the non-explosion-proof operation design is integrated with the electric control box.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
