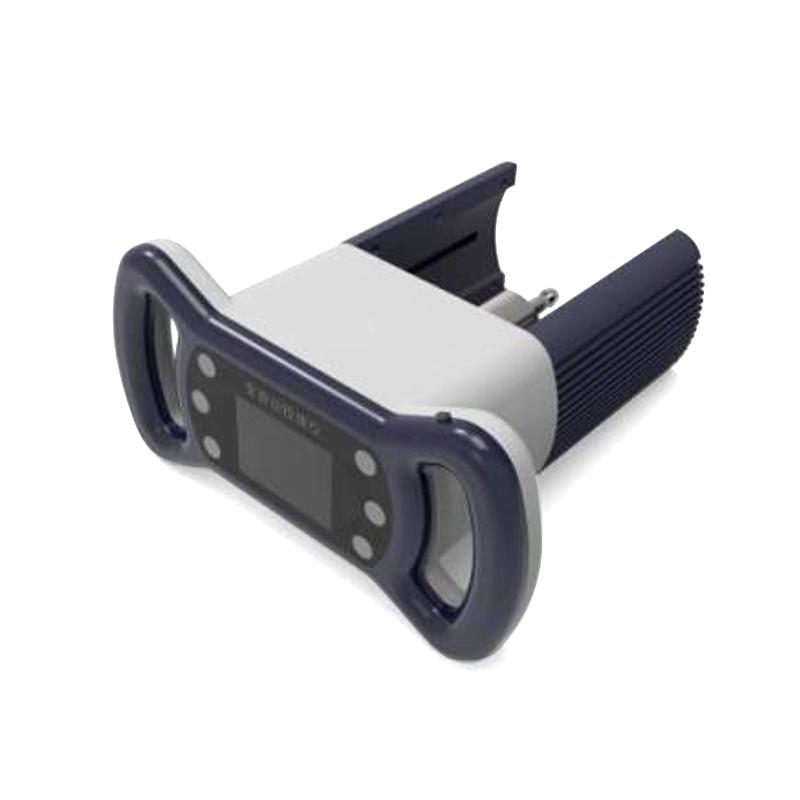

Runjie RJLB-10 automatic drawing instrument
SE
RJLB-10
RunJie RJLB-10 Automatic drawing instrumentSPEC
RunJie RJLB-10 Automatic drawing instrumentDetails
RunJie RJLB-10 Automatic drawing instrumentPacking list
- SKU
- NB035098
- Large pulling force
- 10kN
- Effective detection range
- 1% -100% of the maximum test force
- tensile stroke
- 50mm
- Drawing speed
- 0.1mm/min~50mm/min
- Accuracy class
- 0.5%F.S
- Sensors
- High Precision External S-Type Sensors
- Drive mode
- Stepper motor drive
- Dimensions
- 330*300*160mm
- Weight
- 3.5kg
- Power
- 12.8V rechargeable battery
RJLB-10 automatic drawing machine is a new type of testing instrument. It is suitable for the detection of the rivet pullout force of fixed heat insulation materials in construction projects, the bond strength of wall heat insulation materials, the bond strength of exterior wall facing bricks, various boards, paints, coatings and other materials. It is suitable for production inspection, development research and other fields such as factories, construction engineering quality inspection stations, construction companies, product quality inspection institutes, scientific research institutions, road and bridge sites, etc.
The Detector is designed with electromechanical integration, and the whole set of instruments is integrated as a whole. Including mechanical parts such as motor drive, sensor, lead screw, reaction force support, etc. At the same time, the measurement display circuit is embedded in the instrument, and the data can be directly observed. The instrument is equipped with travel limit and positive and negative force value overload protection functions, and has the characteristics of adjustable test speed, high load measurement accuracy and convenient operation. The testing machine has a beautiful appearance and exquisite workmanship.
Features
Integrated design, light weight and portable.
Embedded measurement display circuit, real-time display of measurement data, easy to use.
Touch screen control, friendly human operation interface.
Automatic test and breaking judgment, easy to use.
Peak hold function, easy to record data.
Multi-point force value correction, the data is more accurate.
Lithium battery powered, convenient for outdoor use.
Standards
JGJ144-2019 "Technical Standards for External Thermal Insulation Engineering of Exterior Walls"
JG158-2013 "Rubber powder polystyrene particle external wall insulation system"
JG149-2006 "Expanded Polystyrene Board Thin Plastering Exterior Wall External Thermal Insulation System"
JGJ110-2017 "Inspection Standard for Bonding Strength of Decorative Bricks in Construction Engineering"
JGJ126-2015 "Code for Construction and Acceptance of Exterior Wall Facing Brick Project"
