Defelsko PosiTest G Coating Thickness Gauge for Eletroplating, thin paint layer, steel phosphating film thickness measurement with certificate

PosiTest G

Coating Thickness Gauge

0~200µm dial type coated platings Thickness Gauge, no power supply, underwater testing, explosion-proof, can measure the surface sample Coating thickness.

Overview

Defelsko PosiTest G Coating Thickness Gauge is a pointer coating Thickness Gauge produced and developed by Defelsko in the United States, with a simple appearance and structure, no battery power supply, and a pointer gauge and sound to indicate the completion of the measurement, small size, and easy to carry.The PosiTest G Coating Thickness Gauge is suitable for measurementsThe non-magnetic coating on steel is suitable for thickness measurement of electroplating, thin paint film, and phosphate film on steel, with a measurement range of 0~200 microns.

Features

Precision

 --Each gauge comes with a calibration certificate traceable to the U.S. IST

 --Each model can be matched with calibration standards and procedures

 --High wear-resistant carbide probe is conducive to the durability of service life and the durability of excellent accuracy

 --The adjustable center of the dial makes it easy and convenient to adjust the adjustment

 --Comply with international and domestic (CN) testing standards

durable

 --Special textured shell, no fear of mechanical impact, water, acid or solvent

 --Unique overall design, full support, forced positioning, no possibility of rotation and movement during the measurement process

 --Choose to measure with sufficient support or use only the probe contact coating of the front measuring arm

 --Long-lasting magnetism of rare earth cobalt magnets, no batteries required

 --Explosion-proof, very safe

 --1 year guarantee

Easy to use

--Equipped with visual prompts and audible prompts to remind the completion of the measurement

--The "V" groove probe housing design and unique instrument base facilitate positioning and measurement on cylindrical samples

--Compact, lightweight, precise balance, not affected by gravity (gravity), can be used anywhere

--GO/O-GO (Start/Disable) buttons can be preset for quick measurements

--Probe placement and dial rotation are just one finger operation

--The included wrist strap and instructions are kept in a high-quality leather case

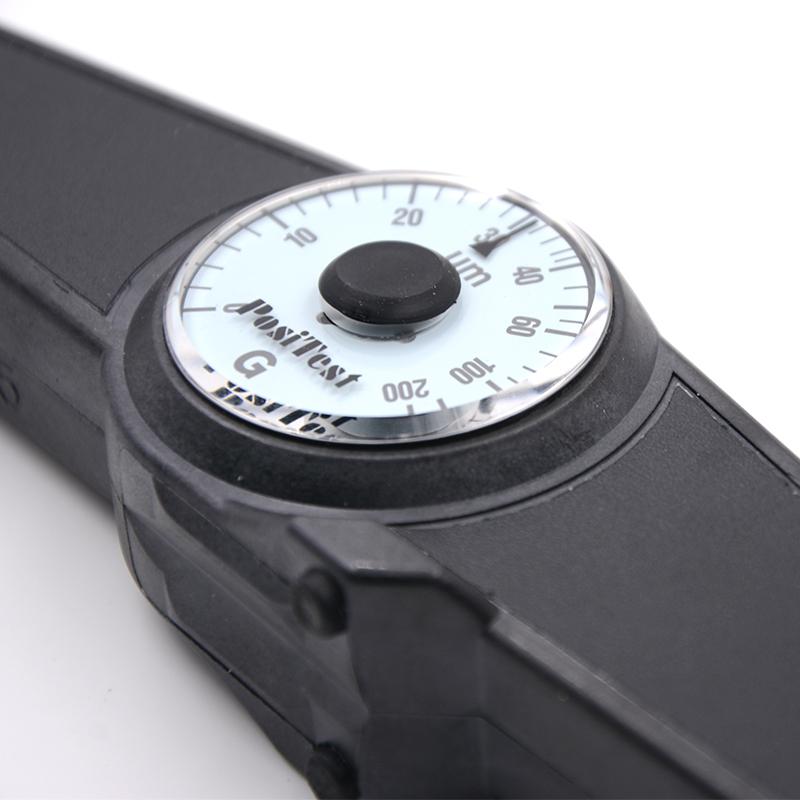

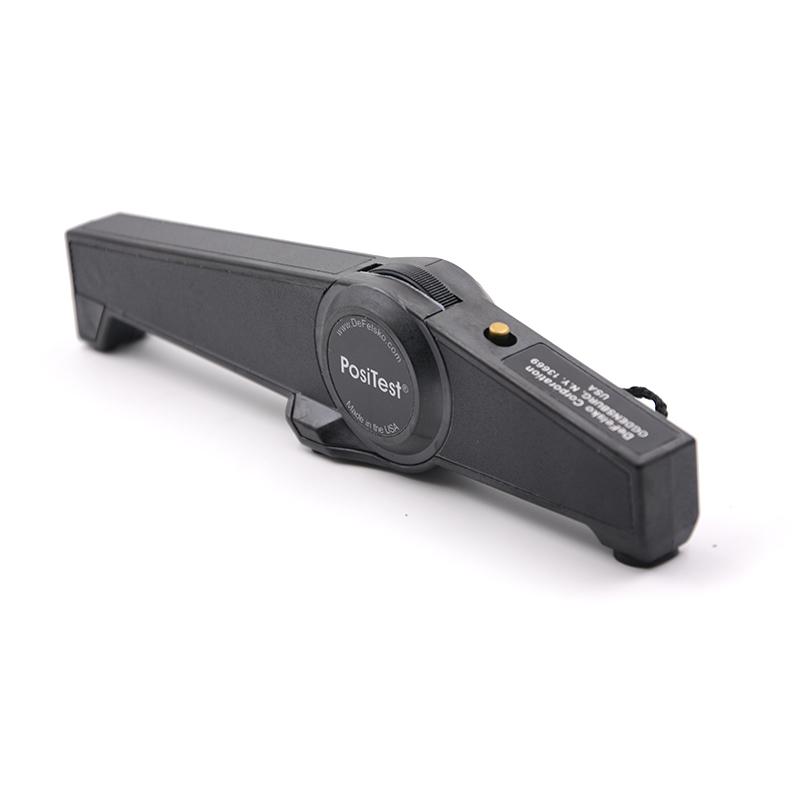

Live shot

PosiTest G Mechanical Coating Thickness Gauge Operation

1) Place the coating gauge vertically on the object to be measured, so that the probe can touch the surface of the object to be measured.

2) PressPosiTest G Coating Thickness GaugeGO/NO-GO button (i.e., gold button on the gauge)

3) Gently shake the wheel until you hear a "click", and the thickness indicated by the dial pointer at this moment is the thickness of the coating to be measured.

Overview of parameters

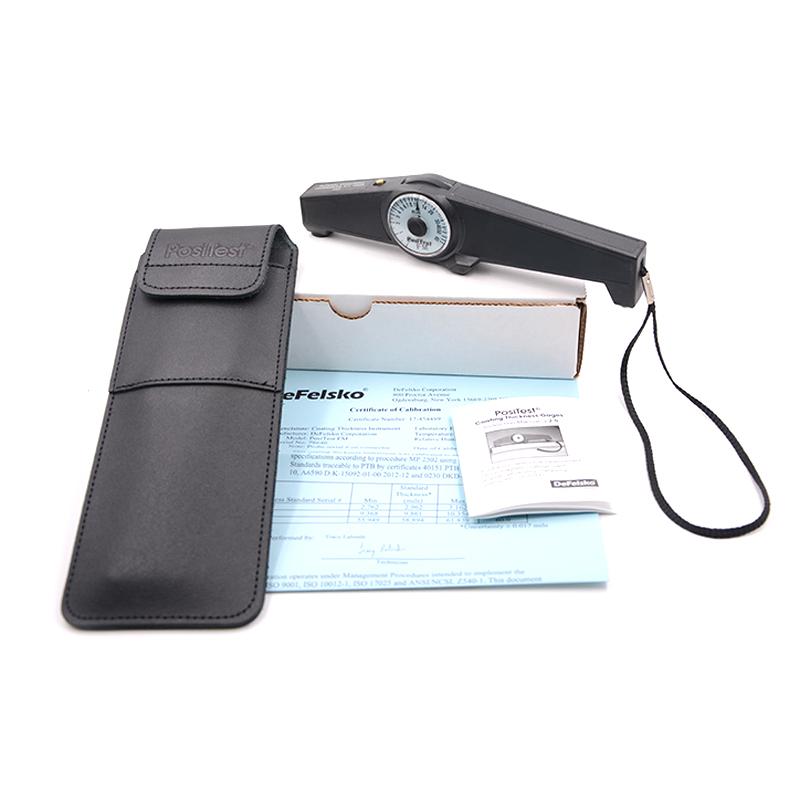

Packing list：Thickness gauge × 1, calibrating certificate × 1, English operation manual × 1, protective bag × 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
