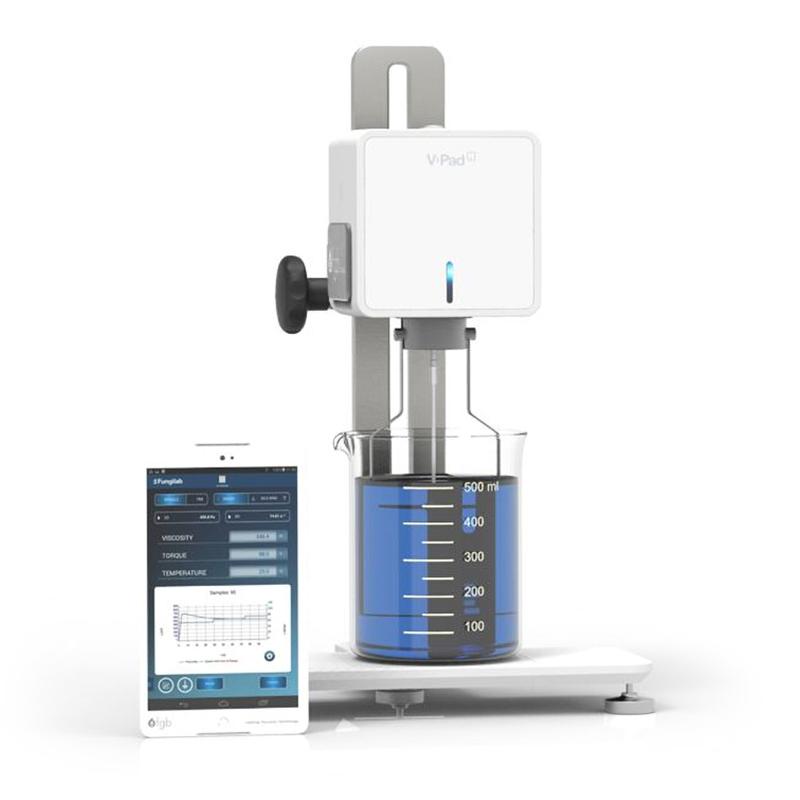

Fungilab V-pad L Rotational Viscometer 6 million cP

V-pad L

Rotational viscometer

Data Display

• Speed: rpm or S-1

• Viscosity: cP, P, mPa.s, Pa.s, cSt, St, mm²/s

• Percent of full scale: %

• Sample temperature: ℃ or OF

• Shear speed (SR): S-1

• Shear stress (SS): N/m2, Pa, Dyne/m2

• Density (customer input required): g/cm³ or Kg/m³

• Note: Shear stress and shear rate can only be displayed when the coaxial rotor L2C+L3C is used.

Viscosity measurement

• Dynamic viscosity (cp or mPas)

• Kinematic viscosity (cSt) (before viscosity measurement, the customer needs to enter the sample density value in advance)

program measurement

• Multi-step program measurement mode can be used and edited;

• Programs can be stored for quick recall later;

• You can choose TTT (stop measuring when reaching a certain torque) and TTS (stop measuring when reaching a certain time period) measurement mode, multi-step measurement and slope measurement.

data storage

• All test data will be stored in a comprehensive database;

• Can activate or cancel quality detection line (QCL) alarm and over-range alarm;

• Users have access to program parameters for each measurement experiment.

Customer customized

• Customers can create measurement speeds (0.01 to 250rpm);

• Can activate or cancel quality detection line (QCL) alarm and over-range alarm;

• Customers can customize the horizontal and vertical coordinates on the measurement curve.

Self-checking function : Viscometer self-checking function, sound and light alarm reminder

Range function : After selecting a combination of rotor and speed, the maximum range under this combination will be automatically calculated.

Tablet control : All parameters can be modified via access via an 8-inch tablet, and the mobile app is available for free in the Google Play Store

Language : Multiple languages ​​available

QCL : Select and set up sample quality detection line

IAM : Data measurement and upload times are adjustable

Graph mode : displays experimental data with real-time graphs

Report export : Test results are exported in PDF and CSV formats

Calibration : Allows the user to enable viscosity and temperature calibration (this calibration will be reset to factory calibration)

Offset : Adjust temperature by offset

Heldal (only available in V-COMPACT): Helical viscosity measurement mode, suitable for measuring non-Newtonian fluid samples

Accessories : Small sample adapter (APM) and low viscosity adapter (LCP) optional

PPR : Rotor quick disassembly and assembly device

Optional

Small sample volume sample adapter APM, low viscosity sample adapter LCP, high viscosity sample adapter Heldal, standard silicone oil, Water Bath, universal adapter, PPR quick release system (V-PAD optional), double-layer temperature-controlled beaker (V-PAD optional) ), blade rotor (yield stress), cone-plate system.

Parameter comparison

Resolution according to viscosity range measurement

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
