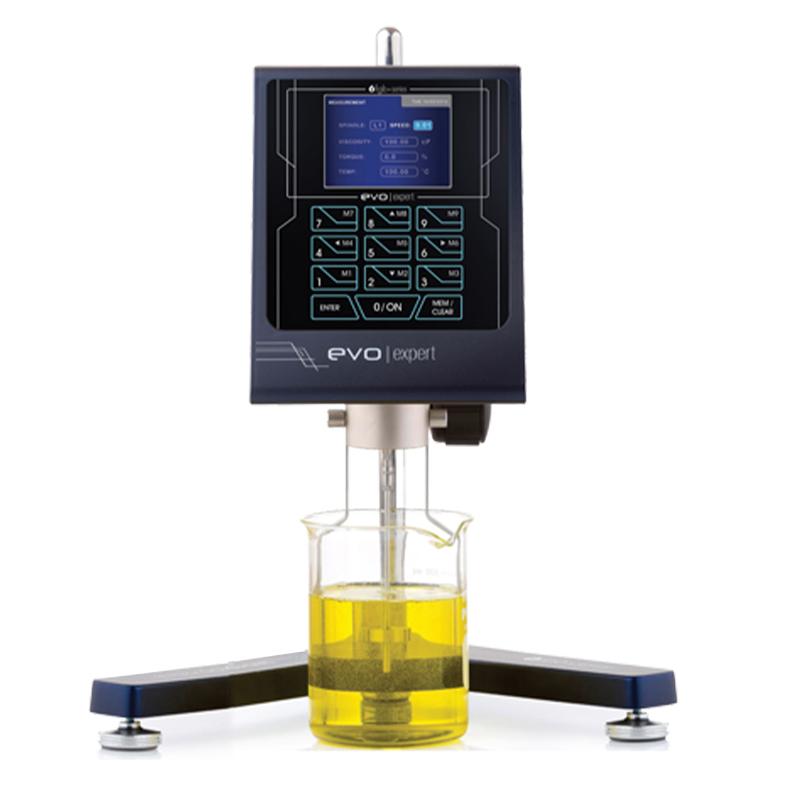

Fungilab EVO EXPERT R Rotational Viscometer Viscometer 40 million cP

EVO EXPERT R

Rotational viscometer

Features

• Data Display:

            Speed: rpm

            Viscosity: cP (mPa.s) or cSt

            Sample temperature: ℃ or ℉

            Shear stress (SS): N/m²

            Rotor: SP

            Percent of full scale: %

            Shear speed (SR): S -1

            Density (customer input required): g/cm 3

Note: Shear stress and shear rate can only be displayed when a coaxial rotor is used.

• Viscosity measurement:

            Dynamic viscosity (cP or mPa.s)

            Kinematic viscosity (cSt) (before viscosity measurement, the customer needs to enter the sample density value in advance)

• Unit conversion:

            Convert SI units to CGS units

• Program measurement:

            Multi-step program measurement mode can be used and edited, and the rotation speed can be customized;

            Can store 9 programs for quick recall later;

            TTT (stop measuring when a certain torque is reached) and TTS (stop measuring when a certain time period is reached) measurement modes, multi-step measurement and gradient measurement can be selected.

            Data models: Bingham, Casson, Casson NCA/CMA, Power Law, IPC Paste, Herschel-BulkLey, Thix index, etc.

• Self-check function:

            Viscometer self-test function, sound and light alarm reminder

• Range function:

            After selecting the rotor and speed combination, the maximum range under this combination will be automatically calculated, and the temperature will be read through the RTD PT100 temperature probe.

• User-defined viscosity and temperature calibration

• 10 languages ​​available

Standard configuration

Main unit, 3-level leveling knob, standard viscosity spindle kit (4 pcs for L type, 6 pcs for R type and H type), rotor protection legs, rotor bracket, instrument bracket, PT100 temperature probe, USB data cable, FDB data analysis software (The software complies with FDA 21CFR Part 11), carrying case, power cord, calibration certificate, operating manual.

Optional

Small sample volume sample adapter APM, low viscosity sample adapter LCP, high viscosity sample adapter Heldal (T-type rotor), standard silicone oil, Water Bath, universal adapter, 8-inch plate, PPR quick release system, paddle rotor.

Series model

FDB data analysis

FDB software:

•Can realize programming, record experimental process, and display experimental results in real time

•The software is intuitive, easy to understand and operate

feature:

•Viscosity measurement process control.

•Easy to use and eliminates user error when collecting data

•Real-time display of viscosity measurement curves and corresponding parameters

•Clear view of program options using flanges

•Custom Graduation capabilities for graphics

•Different types of experiments can be programmed: simple curves, gradient and multi-step curves

•Different experiments are recorded in different databases. The documents are clearly marked and can be classified and fuzzy checked.

•Different flow curves can be plotted in the same chart for easy comparison

•Can display 12 different charts at the same time

Packing list：Main unit, 3-level leveling knob, standard viscosity rotor kit, rotor protective legs, rotor bracket, instrument bracket, PT100 temperature probe, USB data cable, FDB Data analysis software, suitcase, power cord, calibrate certificate, operation manual.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
