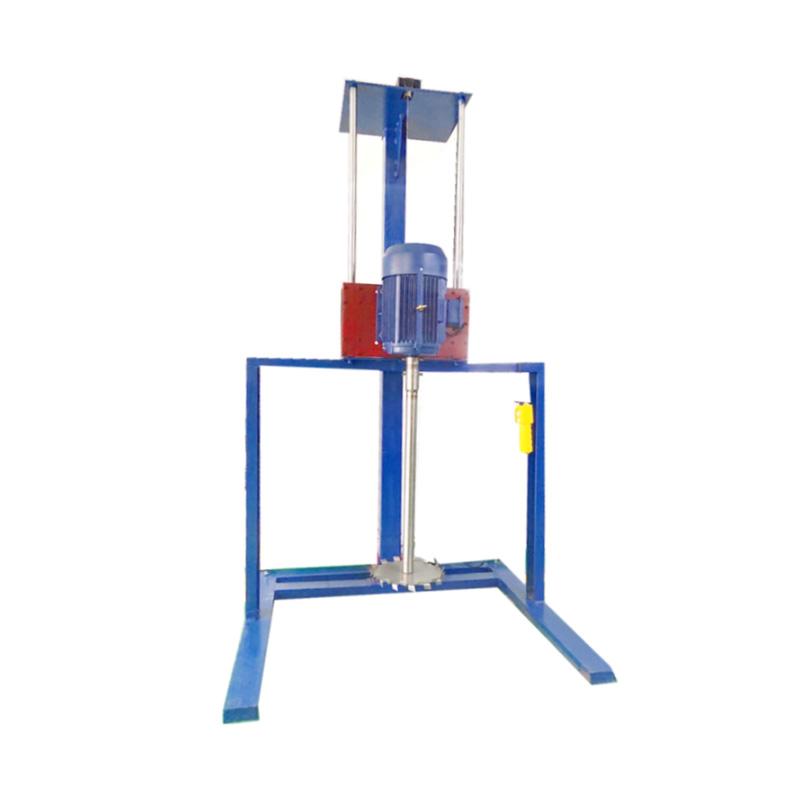

Qiwei JFS-7500 High Efficiency Three-Phase Asynchronous Disperser

JFS-7500

High Efficiency Three Phase Asynchronous Disperser

overview

The frequency conversion multi-purpose dispersing machine is a new type of environmental protection laboratory product designed and developed by our factory using new technologies at home and abroad. This product integrates the functions of stirring, sanding and dispersing into one experimental equipment.

This equipment has the advantages of small size, low noise, no commutation interference, no carbon brush mechanical wear, and environmental protection. The number directly displays the rotating shaft speed, and is equipped with a dispersing impeller and a sanding blade. It can adapt to the needs of different tests in the laboratory, and can directly calculate the relationship between the linear speed of the stirring, dispersing and sanding blades, the viscosity of the material and the chemical reaction rate according to the displayed shaft speed, and provide correct data for large-scale production.

structure

1. The machine adopts electric lifting system, which is convenient for lifting.

2. A new type of variable frequency motor is adopted, and the stepless speed regulation of the motor is implemented through an intelligent variable frequency controller. Using digital PID technology, the control precision is high, and the 4-digit digital tube directly displays the spindle speed.

3. The dispersing impeller and sanding disc are directly connected to the rotating shaft with screws.

Install

1. When in use, fix the selected sanding disc or dispersing impeller with the rotating shaft.

2. Rotate the motor locking bolt, adjust the height of the rotating shaft and the container, clamp the motor base and the container, put in the material and cover the container.

Operation Guide

1. Plug in the power supply, the meter will display "0".

2. Turn the potentiometer knob to the left to the end. Press the "Run" key to start working.

3. Press the "Stop" button, the motor stops running.

4. Cut off the power and shut down.

Packing list：Complete-built unit X1, manual X1, certificate X1, warranty card X1, dispersion plate X2, governor X1　　

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
