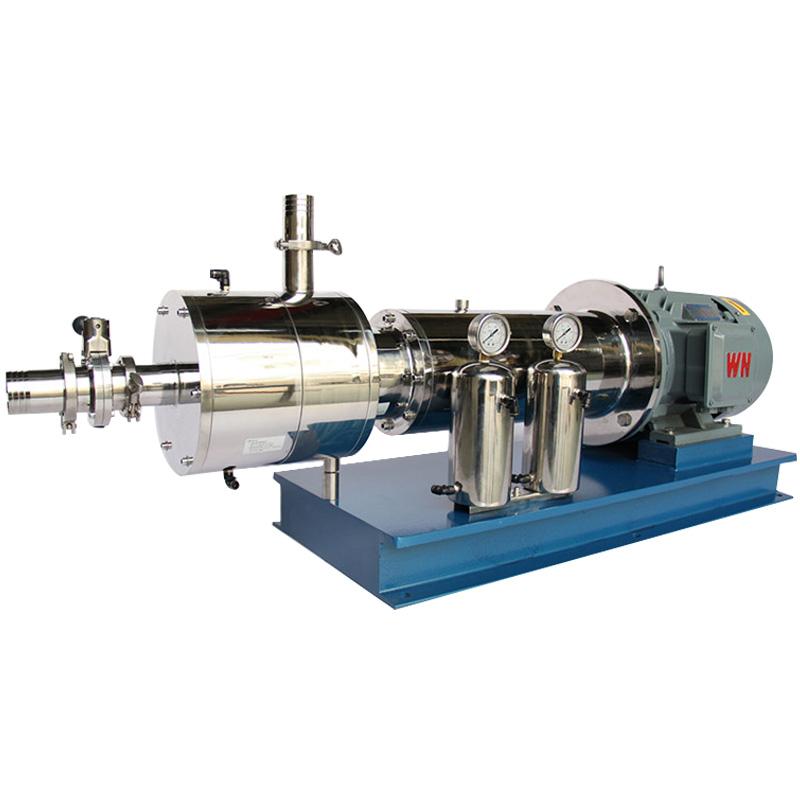

MUXUAN MXR-45-3 Three-stage emulsification pump line type high shear homogeneous Mulser 45kw

MXR-45-3

Three stage emulsification pump

Rotation speed up to 3000 rpm, Processing capacity 50m3/h, stainless steel body and double mechanical sealing design, suitable for a variety of materials efficient emulsification dispersion.

Equipment introduction

The pipeline-type high shear homogenizing emulsifying machine is a fast and efficient homogenizing emulsifying machine for continuous production or cyclic processing of fine materials. The motor drives the rotor to run at high speed, and the particle size of liquid-liquid and solid-liquid materials is narrowed through the action of mechanical external force, so that one phase is evenly distributed into another or multiple phases to achieve refinement, homogeneity and dispersion. Emulsification effect, thus forming a stable emulsion state. The front stage of the single-stage pipeline high shear emulsifier can be equipped with a feeding pump, which has certain applicability to medium and high viscosity materials. The equipment has low noise, smooth operation, and no dead ends. One hundred percent of the materials pass through the functions of dispersion and shearing. It has the function of short-distance and low-lift conveying.

working principle

The three-stage pipeline high-shear emulsifier adopts a horizontal structure. There are three sets of rotors and stators installed in the long and narrow working chamber. The rotors and stators can be designed as a single-stage two-layer or single-stage six-layer mechanism. The rotors and stators are dually coupled and highly coordinated. The motor drives the intermediate shaft to run at high speed, and the rotor and stator form a vacuum. The material is sucked into the rotor and stator cavity from the inlet. The strong kinetic energy causes the rotor to generate a relatively high linear speed, causing the material to undergo strong impact and crushing between the rotor and the stator. , centrifugal extrusion, liquid layer friction, shearing and then flying out. Under the action of a variety of different directions of force, strong turbulence is generated, and the material flows out from the outlet. Multiple cycle operations are possible.

Application scope

[Application fields]: Suitable for dispersion, emulsification and homogenization of product materials in industries such as biology, food, coatings, inks, textile auxiliaries, cosmetics, lubricants, pesticides and other industries.

[Applicable materials]: Solids and liquids, liquids and liquids can be mixed to form solutions, colloids, suspensions or emulsions; such as juices, soups, dairy homogenates, cosmetics, surfactants, asphalt , emulsifiers, oil field chemicals and other materials.

Product advantages

1. Powerful self-priming ability, continuous dispersion and emulsification effect.

2. The rotation speed can reach 3000 rpm, which can be adjusted through the experimental speed of energy-saving and environmentally friendly frequency converter.

3. Designed and manufactured with stainless steel body, optional Siemens motor, and optional high-grade stainless steel motor cover.

4. The rotor and stator are manufactured by CNC processing from a single piece of forging material, with high precision and high linear speed.

5. Adopt double-end mechanical seal design, no leakage, reduce maintenance costs; jacket cooling design machine can run for a long time.

6. Various connection methods such as flange quick connection and quick installation can be provided according to actual needs. Products using special pressure and temperature environments can be customized. Imported pressure buffering and mechanical seal water shortage protection systems are optional.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
