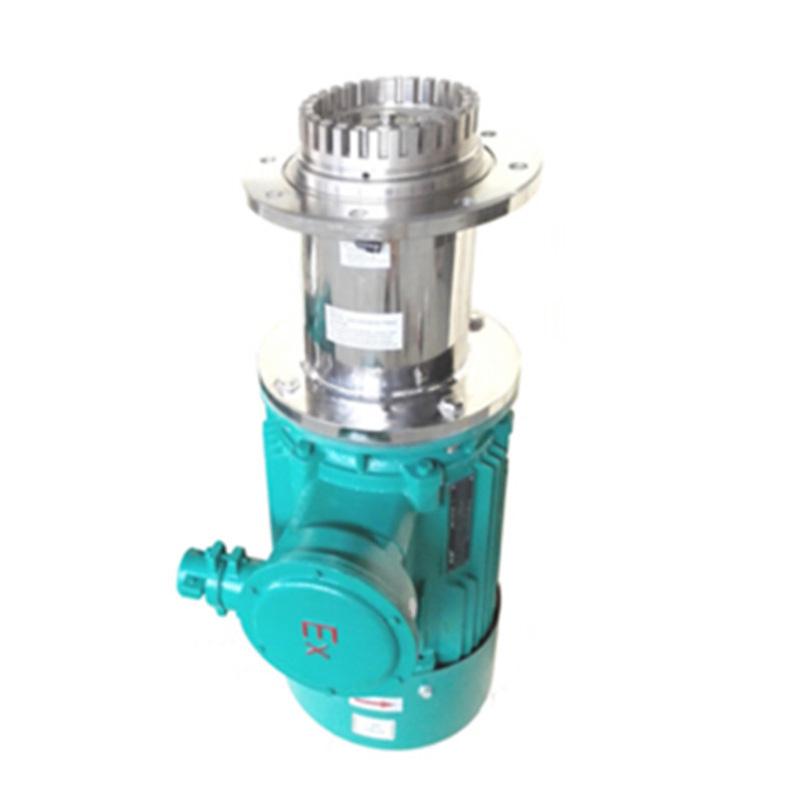

MUXUAN MXR-D37 Bottom Mulser 37kw

MXR-D37

Bottom Mulser

Equipment introduction

The kettle bottom emulsifier is a crushing, emulsifying and homogenizing equipment installed at the bottom of the reaction kettle. It can solve the sedimentation at the bottom of the kettle that cannot be solved by other equipment. It can crush, emulsify, mix, homogenize, and disperse the materials at the bottom of the kettle. , can be combined with different mixer forms such as dispersing and stirring to achieve multi-purpose functions in one machine. The equipment is suitable for a wide range of viscosity and temperature, and can be customized to meet the needs of vacuum (100mbar), explosion-proof (ATEX), and pressure conditions.

Application scope

[Application fields]: Suitable for dispersion, emulsification and homogenization of product materials in industries such as biology, food, coatings, inks, textile auxiliaries, cosmetics, lubricants, pesticides and other industries.

[Applicable materials]: Solids and liquids, liquids and liquids can be mixed to form solutions, colloids, suspensions or emulsions; such as juices, soups, dairy products, tissue homogenates, cosmetics, surfactants, Asphalt, emulsifiers, oil field chemicals and other materials.

Applicable process

It is used for installation and use at the bottom of open or closed containers for mixing, dispersing, emulsifying, crushing, homogenizing, reaction and other processes. Used for cleaning between each batch of material processing.

●Suitable for normal pressure, vacuum and pressure-resistant Operating Conditions

●Suitable for dispersion, emulsification, homogenization, dissolution and suspension

●Power supply: 380V, 50/60Hz

●Contact material: 304/316L, special materials need to be customized

●Sealing form: PTFE, skeleton seal, double-end mechanical seal

working principle

The strong centrifugal force of the cauldron bottom emulsifier shakes the material from the radial direction, and the material is initially dispersed and emulsified in the narrow gap between the rotors. At the same time, it is subjected to centrifugal extrusion, impact and other forces.

The cauldron bottom emulsifier generates a linear speed of at least 15m/s at the outer end of the high-speed rotating rotor, which can reach 50m/s, and forms strong mechanical and hydraulic shear, liquid layer friction, impact and tearing, so that the material is fully Dispersing, emulsifying, homogenizing, crushing, and ejecting through the stator slot at the same time. Materials are continuously ejected from the radial direction at high speed. The flow direction is changed under the resistance of the material itself and the container wall. At the same time, under the action of the upper and lower axial suction generated in the rotor area, two strong upper and lower churning turbulences are formed. The material goes through several cycles to complete the wet material processing processes of dispersion, emulsification, homogenization, crushing and mixing.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
