Bossio SWF-90C Wire and cable for railway passenger cars 10 * 60mm/90 ℃

BOSSIO SWF-90C Railway Passenger Car Wire and cable special type temperature sticker is irreversible Thermometric Paper, measurement temperature 90 ℃, specification size 10 * 60mm, temperature grid shape Cube, Encasement specification 1 sheet 44 pieces.
Model：
Certificate
Contact
Details SPEC CAT

Bossio SWF-90C Wire and cable for railway passenger carsSPEC

Bossio SWF-90C Wire and cable for railway passenger carsDetails

Bossio SWF-90C Wire and cable for railway passenger carsPacking list

SKU
NB035350
Reversibility
Irreversible
number of temperature grids
1 grid
Measurement temperature ℃
90℃
Specifications and Dimensions
10*60mm
Temperature grid shape
Cube
Encasement Specifications
1 sheet of 44 tablets
Color change
White → black
SWF-90C
Wire and cable for railway passenger cars

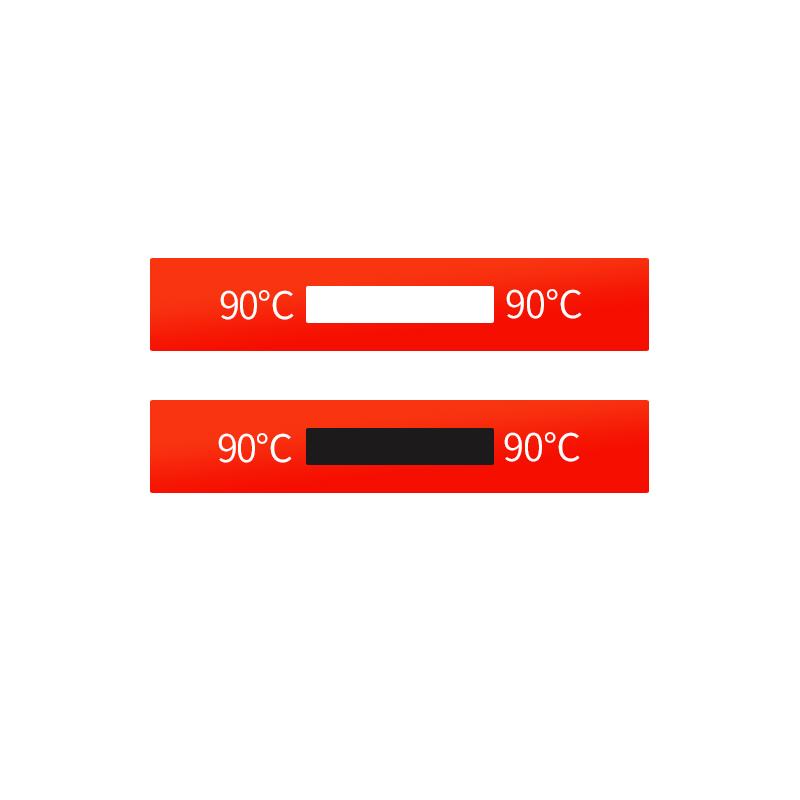

Bossio SWF-90C Wire and cable for railway passenger cars 10 * 60mm/90 ℃ Picture

Introduction

SWF series special temperature stickers for railway passenger car wires and cables are produced in accordance with the standard of CHINA Railway Corporation TJ/CL442-2015 "Interim Technical Conditions for Temperature Sensors for Railway Passenger Car Wires and Cables", and have passed the quality inspection of national credible institutions. The product has good flexibility, strong adhesion, easy pasting, irreversible color (black) after overtemperature, and has a recording function.

The temperature sensor has a unique color-changing temperature indication function, digital display function, and self-adhesive, which is widely used in the connection parts of the control cabinet (power distribution cabinet, electrical integrated control cabinet, air conditioning control cabinet, power conversion box, lighting control box, circuit breaker, contactor, thermal relay, fuse, etc.) and wires and cables of various types of air-conditioned passenger cars (including high-speed rail, bullet trains, and subways) to monitor the temperature of the connection parts.

Storage and service life

1. The temperature sensor can be stored at room temperature, it is non-toxic, tasteless, and non-irritating to the skin, and it should be kept away from heat sources (such as: heatingtablets, electric stoves, etc.)

2. Due to the complexity of the use site of the temperature sensor, when the temperature sensor is pasted on the temperature monitoring part, it is normal at the normal temperatureUsed for 10 years.

SWF railway passenger car wire and cable special type temperature sensor

Bossio SWF-90C Railway Passenger Car Wire and Cable Special Temperature Sensing Sticker Details Figure 1

SWFA railway passenger car wire and cable special type temperature sensor

Bossio SWF-90C Railway Passenger Car Wire and Cable Special Type Temperature Sensing Sticker Details Figure 2

SWFB railway passenger car wire and cable special type temperature sensor

Bossio SWF-90C special type temperature sensor for railway passenger car wire and cable detailed figure 3

SWFC railway passenger car wire and cable special type temperature sensor

Bossio SWF-90C Railway Passenger Car Wire and Cable Special Type Temperature Sensing Sticker Details Figure 4

FAQ
QHow long does this Thermometric Paper need to be kept warm before it changes color?
A When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.
