INESA SHANGFEN L3 visible Spectrophotometer

SE
Dual beams of light and high-performance gratings, 8-inch touchscreen, supports advanced functions such as dynamic time scanning, linear regression and concentration direct reading. USB interface realizes data interaction with PC, supports mass storage and secondary development
Model：
Contact
Details SPEC VIDEO CAT

ShangFen L3 Visible Spectrophotometer SPEC

ShangFen L3 Visible Spectrophotometer Details

ShangFen L3 Visible Spectrophotometer Packing list

SKU
NB035524
Optical inspection system
Proportional double beam of light
monochromator
Czerny - Turner
focal length
160mm
grating line number
1200 gr/mm
Detector
Import Detector
Light spectrum bandwidth
1.8nm
wavelength setting
touchscreen input
Wavelength range
325~1100nm
Wavelength Accuracy
±0.5nm
Wavelength Repeatability
≤0.2nm
Light source switching wavelength
340nm
stray light
≤ 0.05% (T) (measured as NaNO2 at 360nm)
Photometric range
0.0~200.0%T、-0.301~4.000A、0.000~9999C
Photometric Accuracy
±0.5%T；±0.004Abs（0 ~ 0.5A）；±0.008Abs（0.5 ~ 1A）
Luminosity Repeatability
≤0.2%T；0.002A(0~0.5A)；0.004A(0.5~1A)
Noise level
≤ 0.2%T；0.002Abs（0 ~ 0.5A）；0.004Abs（0.5 ~ 1 A）
L3
Visible Spectrophotometer
Dual beams of light and high-performance gratings, 8-inch touchscreen, supports advanced functions such as dynamic time scanning, linear regression and concentration direct reading. USB interface realizes data interaction with PC, supports mass storage and secondary development

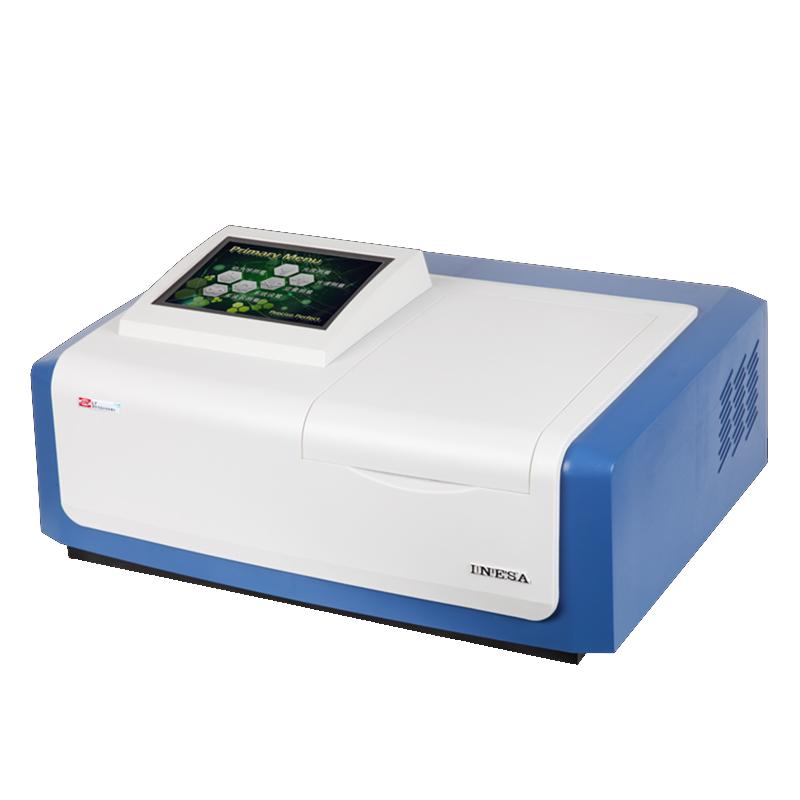

INESA SHANGFEN L3 visible Spectrophotometer Picture

Introduction

The L3 visible Spectrophotometer adopts a professional proportional monitoring dual-beam optical path system and low-noise circuit design, which has good reliability and stability. It can meet the application needs from daily analysis to scientific research.

main feature

  • Adopting professional optical, mechanical and electrical design, it has stable performance and ultra-high cost performance.

  • It adopts 8-inch color touch LCD display, which is flexible and convenient to operate.

  • It adopts a proportional monitoring double-beam optical path structure and is equipped with a high-performance "blazed holographic grating", a low stray light and high-resolution monochromator, which has outstanding optical precision, measurement accuracy, reproducibility and stability.

  • Unique automatic adjustment "0%" to "100%", automatic 8-cell cuvette holder.

  • It has various advanced functions such as kinetic time scan, GOTOλ, linear regression, concentration direct reading, peak and valley detection, etc.

  • Using a thermal plotter (optional), it can perform data printing, fixed-wavelength long-term scanning, linear regression and other curve drawings.

  • It has a USB interface and can directly interact with a PC, which strengthens the processing functions of the instrument such as detection data and scanned spectra, realizes mass storage of test documents, and also provides convenience for users’ secondary development.

  • Professional power-off protection measures can memorize measured data, scanning spectra, regression equations, instrument correction values, etc., and enable quick initialization into the test state after power-on.

Optional

thermal graphics printer

UVwin8 visible spectrum software

Other specifications of cuvette holders are optional

other

Light source: Imported 12V 20W tungsten halogen lamp

Power supply Voltage: AC220V±22V 50Hz±1Hz

Rated power: 120W

Standard 1cm cuvette holder
