FANGZHOU PHS-320 Intelligent Multifunctional Acidity Meter GLP Function Management 0.001pH/0.01mV

PHS-320

Intelligent multifunctional acidity meter

Advantages:

High-resolution, multi-parameter measurements

With a resolution of 0.001 pH/0.01 mV, it has extremely high accuracy and multi-parameter measurements of pH, mV, RelmV, ORP, and T-values

Multiple measurement modes

Five measurement modes, real-time, timed, auto-fast, auto-medium-speed, auto-slow measurement, more accurate measurement of sample pH

Large-capacity data storage is safe and reliable

Built-in large-capacity memory, the number of stored data groups can reach millions of groups, which is convenient for data storage and traceability

The product quality is reliable

The key components of the instrument are imported components, with integrated design, no moving parts, and high reliability performance

Application

, blood products, food and * product testing, agricultural products, beverages, universities and scientific research, blood products

Features

• Large screen true color TFT LCD display, chart display, menu navigation operation

• 10 sample ID numbers, 10 personnel ID numbers, with GLP setting and query function, truly realize GLP function management

• Multi-parameter measurements, pH, mV, Relmv, ORP, ISE, T-values

• 0.001pH/0.01mV high-precision resolution, meeting high standard measurement requirements

• 7 groups of 33 kinds of pH standards, one-key calibration, up to 5 points, automatic identification, calibration, and chart display data curve function

• ATC automatic recognition, automatic/manual temperature compensation

• Five measurement modes: real-time, timed, auto-fast, auto-medium, auto-slow

• It has an equipotential function to meet the use of different zero-potential electrodes

• It has a self-diagnosis function to judge the working status of the host and the performance of the electrode

• Dual clock and date display shows the current time and provides a time reference for digital recording functions

• The timer storage time can be adjusted within (0-6000) seconds

• Through the effective management of GLP function, data can be consulted, exported, printed, deleted, etc

• Equipped with special electrodes, it can accurately measure pure water, soil, trace samples, high viscosity and low ion concentration

The RS232 serial port provides three application modes:

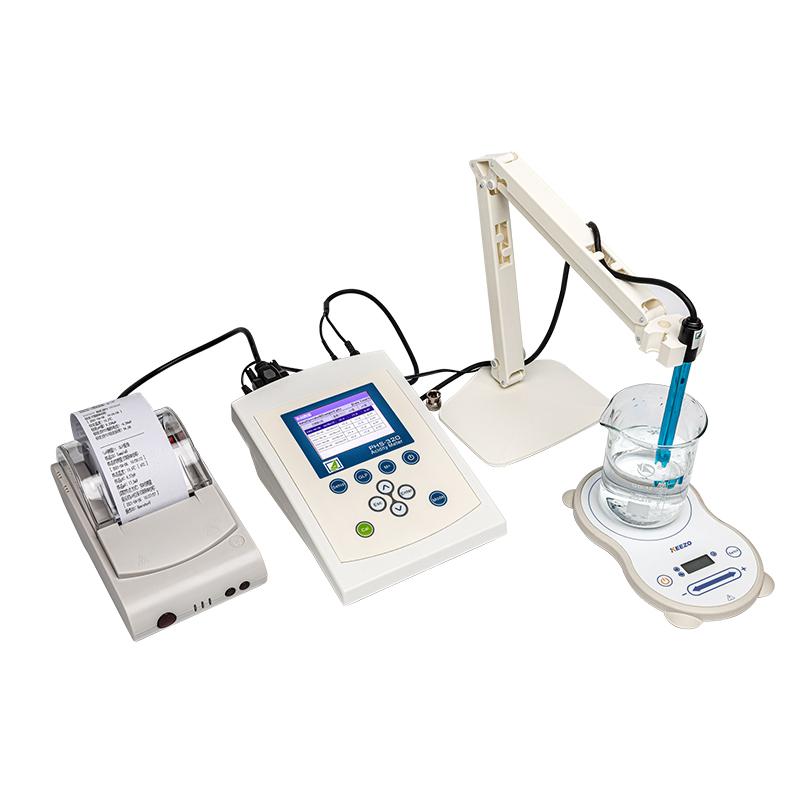

1. Connect to the micro printer to print the report results, and its formats include simple format, normal format, GLP format, and custom format

2. Send data to the computer for data statistics: The built-in software protocol of the instrument directly transmits the stored data to the office Excel, office Word or notepad and other software texts of the computer, which is convenient for users to archive statistics, analyze and compare the measurement data

3. Two-way transmission control function

Instrument structure

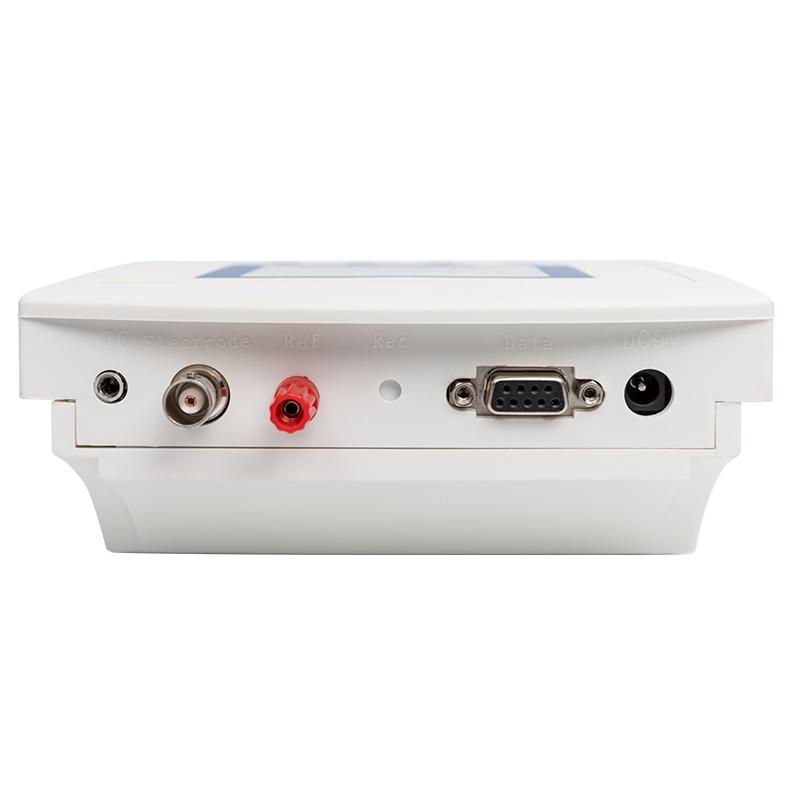

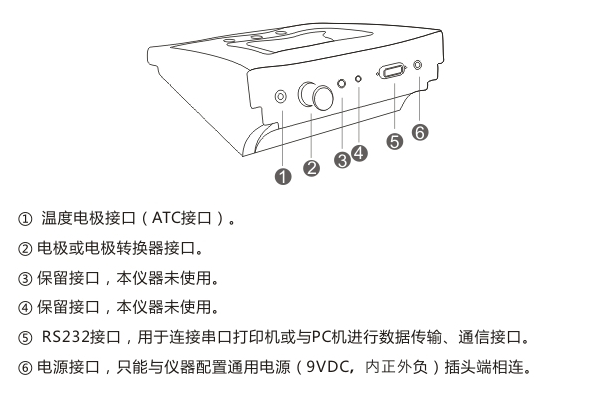

Figure 1: API description

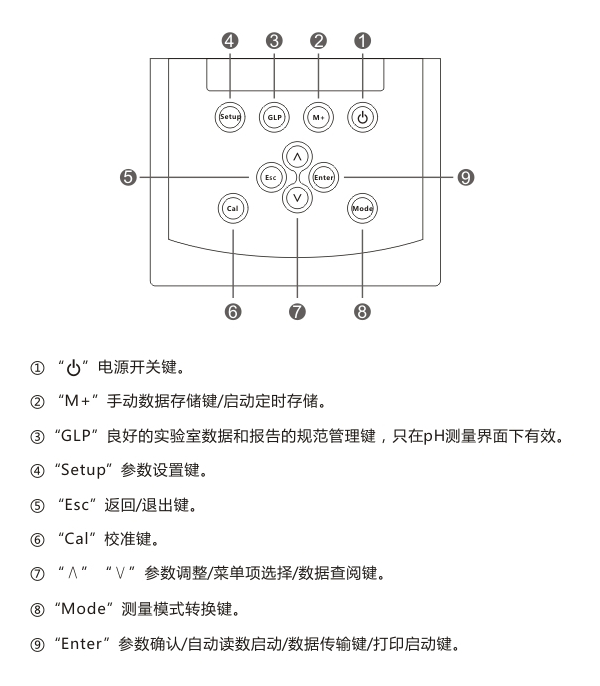

Figure 2: Description of the buttons

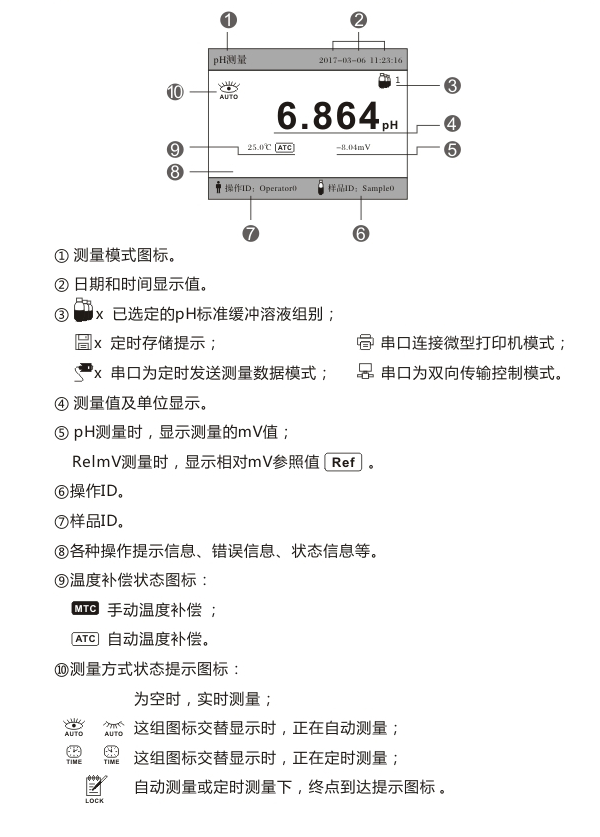

Figure 3:Displays an icon description

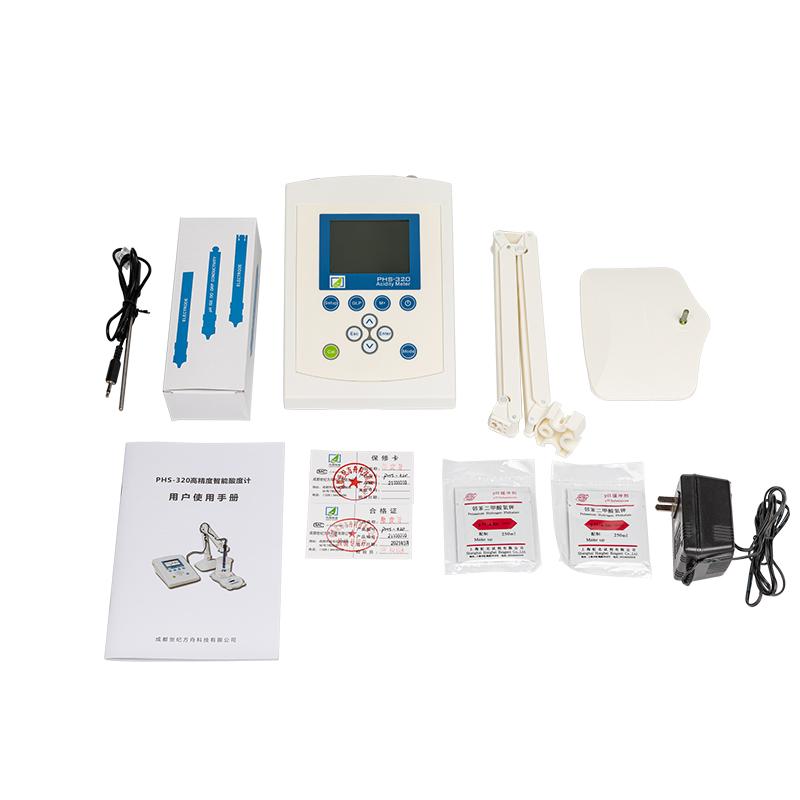

Packing list：Electrode X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
