FANGZHOU FZ-650 2-in-1 planar electrode for solid and semi-solid soft, wet surfaces

SE
FANGZHOU FZ-650 two-in-one planar electrode measurement range 0-14.00pH, temperature range 0-80 ℃, branch material plastic shell, reference structure single salt bridge, FZ-650 two-in-one planar electrode application range Suitable for pH measurement of solid and semi-solid soft, wet surfaces. Such as: Agar foster base, meat products, dough, paper, skin, cheese, jelly.
$133.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

FZchina FZ-650 Two-in-one planar electrodeSPEC

FZchina FZ-650 Two-in-one planar electrodeDetails

FZchina FZ-650 Two-in-one planar electrodePacking list

SKU
NB035582
PH range
0~14.00pH
Temperature range
0~80℃
Branch pipe material
plastic shell
reference type
Single salt bridge
reference type
Ag/Agcl
hydraulic junction
Sand core + PELLON salt bridge
sensitive film
Flathead
inner filling solution
non-padding
Connector
BNC
Application
Suitable for pH measurement of solid and semi-solid soft, wet surfaces. Such as: Agar foster, meat products, dough, paper, skin, cheese, jelly.
FZ-650
Two-in-one planar electrode

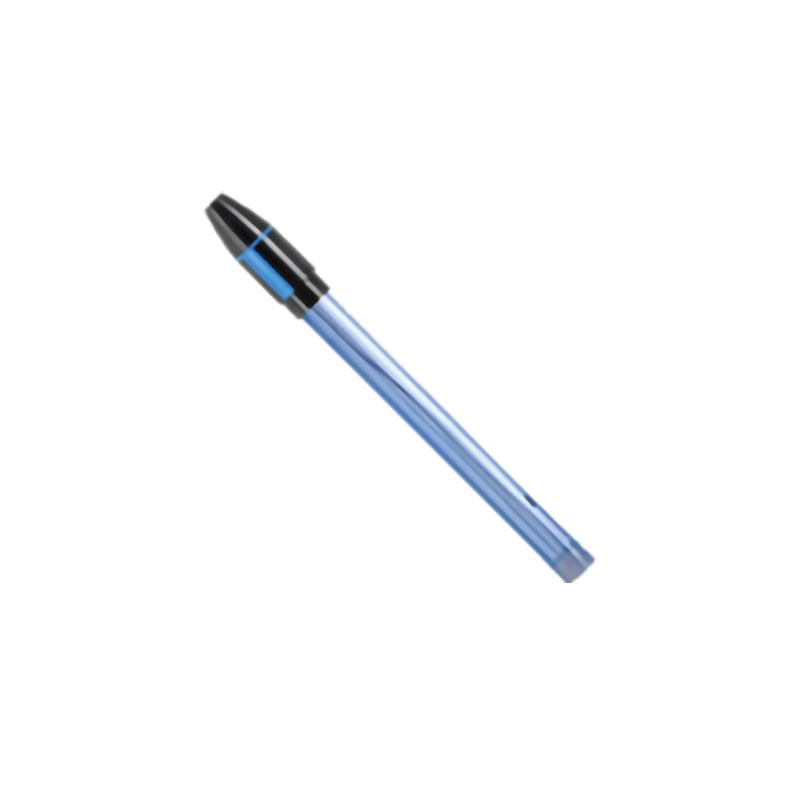

FANGZHOU FZ-650 2-in-1 planar electrode for solid and semi-solid soft, wet surfaces Picture

LABOratory Special Sample Electrode

modelFZ-610 two-in-one electrodeFZ-620 two-in-one electrodeFZ-630 two-in-one electrode
Measuring range2-12.00pH2-12.00pH0-14.00pH
temperature range5-90℃5-90℃5-60℃
Branch materialglass shellglass shellglass shell
Reference structureDouble fluid worldDouble fluid worldsingle salt bridge
Reference typeAg/AgclAg/AgclAg/Agcl
liquid junctionCyclic PTFE bridgeCeramic Sand Core Salt BridgeCeramic Sand Core Salt Bridge
Sensitive filmBulbLow Impedance BulbBulb
Filling fluidnot fillablecan be filledcan be filled
interfaceBNCBNCBNC
ApplicationSuitable for measuring samples with high-low ionic strength: acid rain, rainwater, tap water, seawater, supply water, distilled water, sewage.Suitable for measuring low conductivity samples: water samples with low conductivity and low concentration of H+ or OH- ions, such as: measuring pure water and ultrapure water, water for injection, distilled water, sterilized purified water, soft surface water.Suitable for measuring samples that are easy to block the electrode: the components in the sample have strong adhesion and very little water, and are easy to adhere to the surface of the glass bulb or reference salt bridge, such as: emulsion, food, cosmetics, pigments , paint, soil, sewage.
modelFZ-640 two-in-one electrodeFZ-650 two-in-one planar electrodeFZ-660 two-in-one electrode
Measuring range0-14.00pH0-14.00pH0-14.00pH
temperature range0-80℃0-80℃0-80℃
Branch materialglass shellplastic caseglass shell
Reference structuredouble salt bridgesingle salt bridgedouble salt bridge
Reference typeAg/AgclAg/AgclAg/Agcl
liquid junctionAnnular Sand Core Salt BridgeSand core + PELLON salt bridgeRing Sand Core Double Salt Bridge
Sensitive filmBulbshort hairBulb
Filling fluidcan be fillednot fillablecan be filled
interfaceBNCBNCBNC
ApplicationSuitable for measurement: samples containing protein, samples containing silver ions.Ideal for pH measurement of solid and semi-solid soft, wet surfaces. Such as: agar medium, meat products, dough, paper, skin, cheese, jelly.Suitable for organic sample measurement, special external reference filling liquid.
modelFZ-670 two-in-one electrodeFZ-680 two-in-one planar electrodeFZ-690 two-in-one electrode
Measuring range0-14.00pH0-14.00pH0-14.00pH
temperature range5-60℃0-60℃0-90℃
Branch materialglass shellplastic caseglass shell
Reference structuresingle salt bridgesingle salt bridgedouble salt bridge
Reference typeAg/AgclAg/AgclAg/Agcl
liquid junctionCeramic Sand Core Salt BridgeAnnular Sand Core Salt BridgeCeramic Sand Core Salt Bridge
Sensitive filmBulbshort hairBulb
Filling fluidcan be fillednot fillablenot fillable
interfaceBNCBNCBNC
ApplicationSuitable for measuring mixed liquid samples: water samples have no precipitation after long-term storage, and have good fluidity, such as: fruit juice, beer, milk, blood protein, wine.Ideal for pH measurement of solid and semi-solid soft, wet surfaces. Such as: agar medium, meat products, dough, paper, skin, cheese, jelly.It is suitable for the measurement of strong acid, strong alkali and some organic samples. Such as: organic samples, according to organic samples with external salt bridge.
