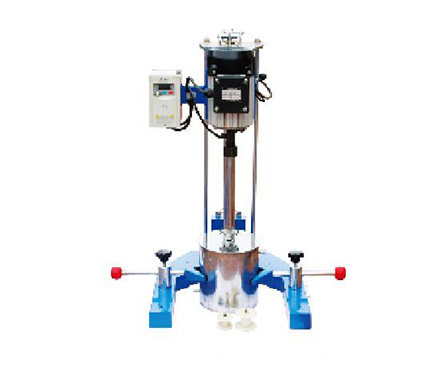

QSJ-II FM Disperser YONGLIDA Power 2200W
The motor power of YONGLIDA FM sand mill Disperser QSJ-II is 2200W, which integrates two functions of sand mill and dispersion. QSJ-II FM sand mill Disperser is suitable for Coating experiment dispersion test.
Model：
YongLiDa QSJ-II FM Sanding Disperser 2200WSPEC
YongLiDa QSJ-II FM Sanding Disperser 2200WDetails
YongLiDa QSJ-II FM Sanding Disperser 2200WPacking list
- SKU
- NB003564
- Motor Power
- 2200W
- Speed regulation range
- 2200~2400rpm
- Power
- 220V 50Hz
QSJ-II
FM Sanding Disperser 2200W
Overview of QSJ-II frequency modulated sand grinding and dispersing machine
Yonglida QSJ-II frequency modulated sand grinding and dispersing machine is a dual-function paint testing equipment with two functions of sand grinding and dispersing. It uses the high-speed rotating dispersing impeller to generate shear force to evenly disperse solid materials. in liquid. The QSJ-II frequency modulated sand grinding and dispersing machine has a motor power of 2200W and a maximum speed of 2200-2400 rpm.

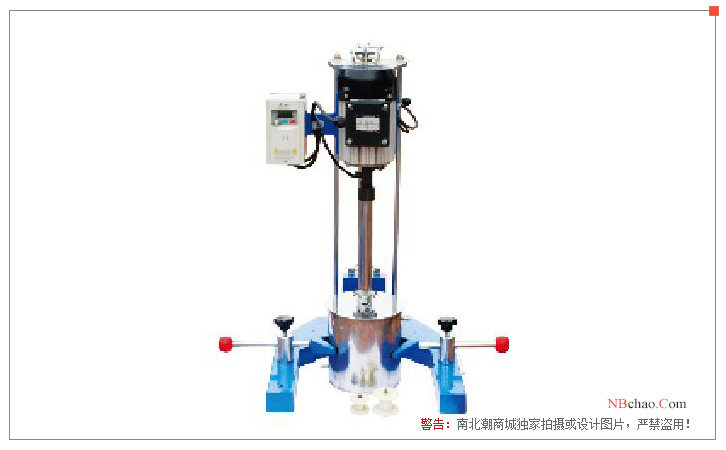

QSJ-II frequency modulated sand grinding and dispersing machine display diagram
Parameter comparison of QSJ frequency modulated disperser
| model | QSJ-III | QSJ-II | |
| electric motor | 750W 220V 50Hz | 550W 220V 50Hz | 2200W 220V 50Hz |
| Speed âârange | 0~6000r/min | 0~7500r/min | Up to 2200~2400r/min |
| Diameter of impeller | Φ50mm | Φ50mm | - |
| Dispersion barrel volume | 2L | 1.2L | - |
| Lifting stroke | 200mm | 200mm | - |
FAQ
QDoes the YONGLIDA FM Disperser 2200W meet the GB/T21868.1 standard?
A
The QSJ-II FM Sanding Disperser 2200W can refer to
Standard
