Lithium battery laboratory coater copper foil coated with lithium battery film 6.9μm accuracy 0.1μm
TBJ-X3+RDS 3# 3/8''
zy TBJ-X3+RDS 3# 3/8'' Automatic Film ApplicatorSPEC
zy TBJ-X3+RDS 3# 3/8'' Automatic Film ApplicatorDetails
zy TBJ-X3+RDS 3# 3/8'' Automatic Film ApplicatorPacking list
- SKU
- NB035663
- Drawdown blade Accuracy
- ±0.003mm
- Spreader thickness range
- 0~10Mm drawdown blade can be lifted
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Coating size
- 300*400mm
- Spreader speed
- Digital display, different speeds
- Vacuum Area
- 300 * 400Mm (can be customized)
- Vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Drawdown blade
- length
- Coating rod specification
- 1 imported 6.9μm wire rod + 1 China wire rod
- Host Power
- 220V 50Hz
- Dimensions
- 630*410*520mm
- Weight
- Net Weight 65KG
- speed control
- Infinitely variable speed
- Bottom plate material
- aluminum alloy
- Heating temperature range
- RT+~200℃
- Temperature Uniformity
- ±3℃
- Power
- 1500W
- Vacuum pump size
- 380*180*280mm
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
product description
Copper foil has good electrical conductivity, but is easily oxidized at high potential, so it is used as the base material of the negative electrode sheet for low potential lithium batteries. Coating lithium battery liquid on copper foil to prepare lithium battery negative electrode sheets is a common research and experimental coating. Since the aluminum foil substrate is relatively thin and easy to curl, it is difficult to scrape it manually.

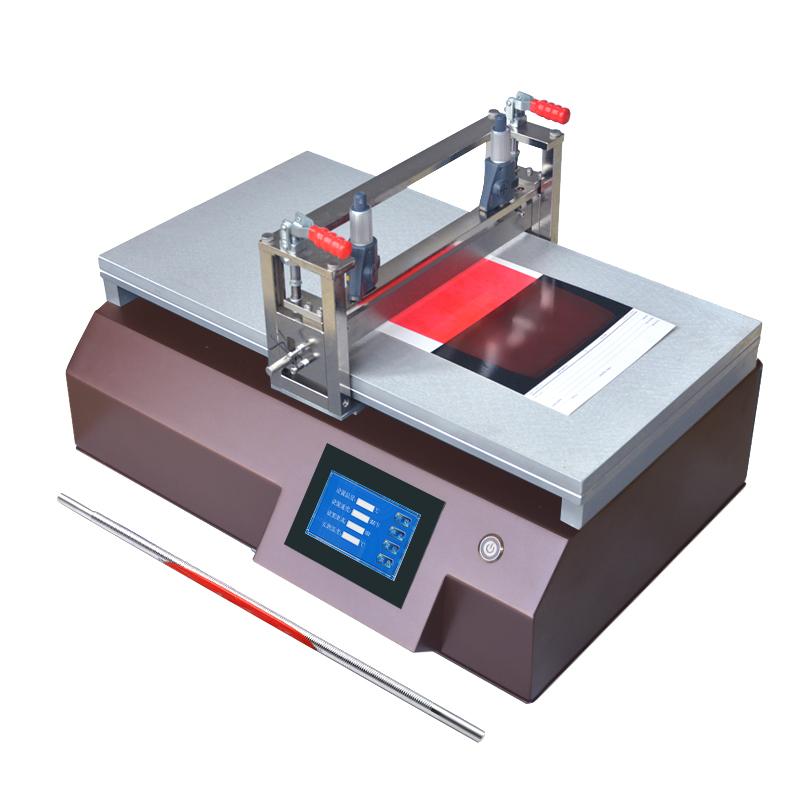

This coating machine set is a lithium battery laboratory coating machine. It is equipped with RDS3 coating wire rod as standard. The coating thickness is 6.9μm and the coating accuracy is as high as 0.1μm. It is an experimental four-in-one coating machine with heating and vacuum adsorption, with a coating width of 300mm.
Features
With 200℃ heating function
With vacuum adsorption function
By controlling the speed and stable pressure, the coating effect is ensured, and the uniformity and stability of the coating are ensured.
Coating experiments can be carried out on various flat materials such as paper, plastic, metal, PVC, PET, cloth, and aluminum alloy plates.
Coating machine type selection table
| Optional configuration functions of coating machine | Main application options |
| Wire rod type | Ultra-thin/high-precision coating, requiring multiple coatings (accuracy up to 0.1μm) |
| scraper type | High viscosity samples, large film thickness, and large particle fineness |
| Heating type | Lithium batteries/glue and other samples that need to be coated at a certain temperature (temperature up to 200℃) |
| Vacuum adsorption | Film, paper and other substrates that are not easy to flatten |
| Note: The fabric is breathable, so there is no need to choose the vacuum type. For paper that is difficult to flatten, you need to choose the vacuum adsorption type. | |
*All configuration functions can be freely combined and selected, such as wire rod type, wire rod + scraper, wire rod + heating, scraper + heating, wire rod + scraper + heating + vacuum adsorption, scraper + vacuum adsorption, etc. The specifications are not suitable. NBCHAO supports customization.

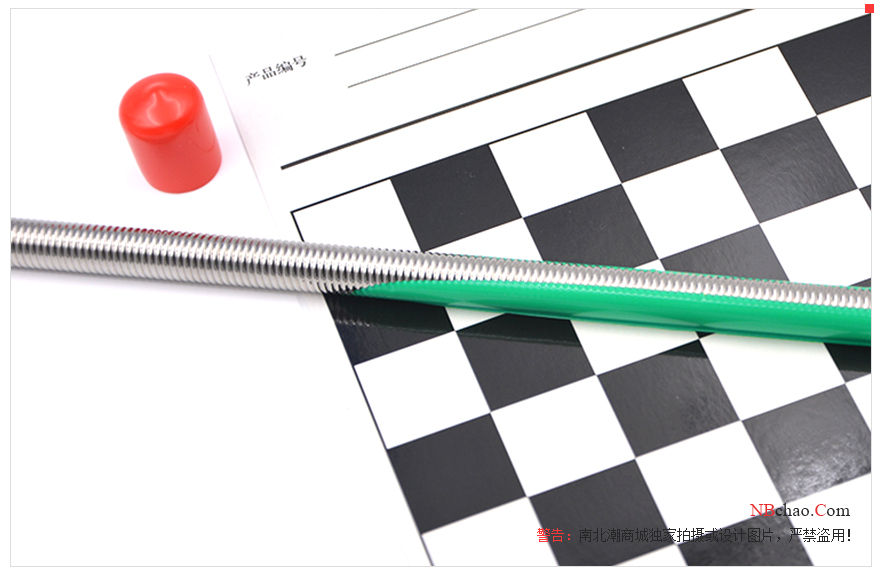

Why do we need imported wire rods?
The experimental coating effect is the result of the joint action of the coating machine and the wire rod. The automatic coating machine can control the speed and pressure of coating, while the wire rod coater/preparator determines the accuracy of the coating film. The coating accuracy of the imported wire rod can be as high as 0.1μm, and the matching imported wire rod can achieve ultra-thin and high-definition coating. Precision coating.

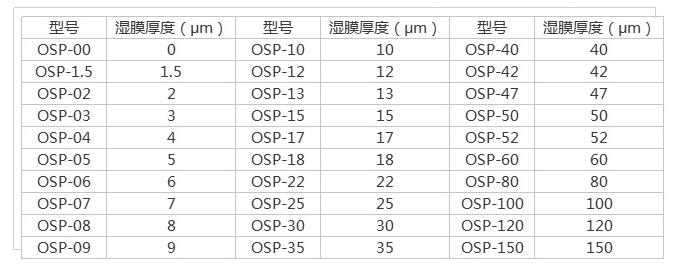

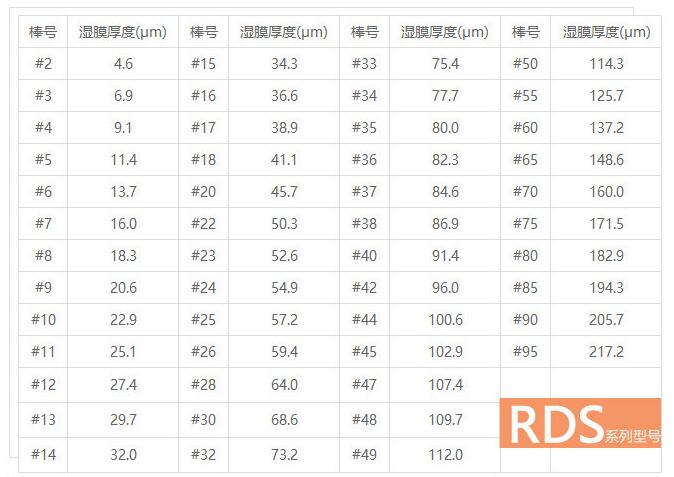

The coating thickness specification selection of imported wire rods is as follows:
For more coating thickness requirements, please consult the mall customer service.
