MIXSENSE MK-601 (4) Portable 4 in 1 Gas Detector

MIXSENSE MK-601 (4) Portable 4-in-1 Gas Detector detection method Natural diffusion, detection of gas oxygen, combustible gas, hydrogen sulfide, carbon monoxide, MK-601 (4) Portable 4-in-1 Gas Detector Protection level IP65, Battery capacity 2000mAh, battery life ≥ 12h.

Model：

MK-601(4)

Certificate

MIXSENSE

Contact

Details SPEC

MIXSENSE MK-601(4) Portable 4 in 1 Gas DetectorSPEC

MIXSENSE MK-601(4) Portable 4 in 1 Gas DetectorDetails

MIXSENSE MK-601(4) Portable 4 in 1 Gas DetectorPacking list

SKU: NB035670

Sampling method: natural diffusion

Detect gas: Oxygen, combustible gases, hydrogen sulfide, carbon monoxide

Response time: Carbon monoxide, hydrogen sulfide, oxygen, T90 < 30s

Alarm mode: Sound, light, vibration

Alarm mode: Sound, light, vibration, screen display

Operating Environment: Temperature: -20 ℃~ 50 ℃ Humidity: 0~95% RH No condensation

Operating Voltage: 3.7V (Model: PL103450-2000mAh)

Battery Capacity: 2000mAh

battery life: ≥12h

Charging time: ≤4 h

Explosion-proof method: Intrinsically safe

Explosion-proof sign: Ex ib IIC T4 Gb

Protection level: IP65

Dimensions: 132*69*29mm

MK-601(4)

Portable 4 in 1 Gas Detector

Introduction

MK-601 composite Gas Detector is a portable four-Gas Detector, the explosion-proof mark is Ex ib IIC T4 Gb, it is suitable for Zone 1, Zone 2, containing IIA ~ IIC, T1 ~ T4 explosive gas mixture places, by the National Explosion-proof Electrical Products Quality Inspection Center inspection qualified, to obtain the explosion-proof certificate. It can detect 1~4 kinds of gases at the same time, color screen display, simple and clear menu operation, support a variety of flammable, explosive, toxic and harmful gas detection, and the detected gases are detailed in Appendix 1.

The design, production and verification of this product comply with the following national standards:

GB3836.1-2010 Explosive atmospheres - Part 1: General requirements for equipment

GB3836.4-2010 Explosive atmospheres Part 4: Equipment protected by intrinsically safe type "i".

GB15322.3-2019 Combustible Gas Detectors Part 3: Portable Combustible Gas Detectors for Industrial and Commercial Use

JJG915-2008 V.R. for Carbon Monoxide Detection Alarm

JJG693-2011 Verification regulations for combustible gas detection alarms

JJG365-2008 V.R. of Electrochemical Oxygen Analyzer

JJG695-2003 V. R. of Hydrogen Sulfide Gas Detector

Key functions and features:

*Detect 1~4 kinds of gases at the same time;

*There are many types of detectable gases that can be supported, which can be freely combined;

* Color screen display, simple and convenient operation;

* Support no less than 100,000 data records storage;

* Standard TYPE C charging port (only used in safe areas), compatible with mobile phone chargers, charging protection, charging instructions;

* A variety of alarm methods, including sound, light, vibration, and can display color change indication alarm through the screen, support high concentration, low concentration, STEL, TWA and other alarms;

*Zero-point automatic tracking and temperature compensation algorithm to ensure the long-term stability of the instrument;

*IP protection grade IP65, splash-proof and dust-proof;

Appearance structure

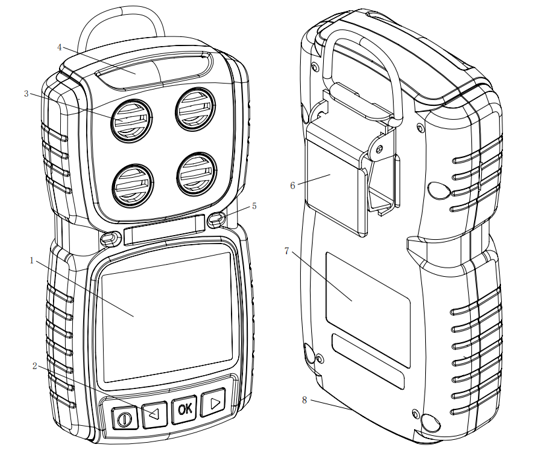

Markor Sunworld MK-601(4) Portable 4-in-1 Gas Detector Details Figure 1

1 display, 2 buttons, 3 sensor air intakes, 4 LED indicators, 5 buzzers, 6 crocodile clips, 7 labels, 8 Type-C interfaces

Gas sizing

Detection Gas:		Detection range:	Underreporting:	High Newspaper:	Unit:
Toxic gases	Oxygen (O2)	0-30.0%	19.5	23.5	%vol
	Hydrogen sulfide (H2S)	0-100	10	15	ppm/umol
	Hydrogen sulfide (H2S)	0-500	10	15	ppm/umol
	Carbon Monoxide (CO)	0-1000	24	100	ppm/umol
	Sulphur dioxide (SO2)	0-100	2	5	ppm/umol
	Chlorine (CL2)	0-20.0	1.5	3	ppm/umol
	Hydrogen cyanide (HCN)	0-30.0	1.5	3	ppm/umol
	Nitrogen dioxide (NO2)	0-20.0	2	5	ppm/umol
	Ammonia (NH3)	0-100	20	40	ppm/umol
	Ammonia (NH3)	0-500	20	40	ppm/umol
	acrylonitrile	0-100	2	4	ppm/umol
	Methanol (CH3OH)	0-100	3	5	ppm/umol
	ETO (Ethylene Oxide)	0-100	2	4	ppm/umol
	Nitric Oxide (NO)	0-250	25	50	ppm/umol
	Benzene (C6H6)	0-100	10	15	ppm/umol
	Chlorine dioxide (ClO2)	0-10	1.5	3	%LEL
Combustible gas	Alkanes (methane, ethane, propane, etc.)	0-100	20	50	%LEL
	Esters (methyl formate, ethyl acetate, etc.)	0-100	20	50	%LEL
	Olefins (ethylene, propylene, butylene, etc.)	0-100	20	50	%LEL
	Benzene (toluene, ethylbenzene, styrene, etc.)	0-100	20	50	%LEL
	Ethers (methyl ether, ether, etc.)	0-100	20	50	%LEL
	Ketones (acetone, methyl ethyl ketone, etc.)	0-100	20	50	%LEL

FAQ

QI want to do a test about the GB3836.1 standard. Is this portable four-in-one Gas detector okay?

A Sure
