LEBO AC200-S-PP Spin Coater

The maximum processing size of LEBO AC200-S-PP homogenizer is 8 inches, Speed range 20-10000rpm, 4 automatic dispensing ports, swirl/spin motor servo, AC200-S-PP homogenizer digitalization shows vacuum adsorption pressure, vacuum pressure can be adjusted.
Model：
Certificate
Contact
Details SPEC

lebo AC200-S-PP Glue levelerSPEC

lebo AC200-S-PP Glue levelerDetails

lebo AC200-S-PP Glue levelerPacking list

SKU
NB035699
Maximum processing size
8 inch
Speed range
20~10000rpm
Acceleration range
10~50000rpm/s
Speed Accuracy
±1rpm
maximum single step size
3000s
Time resolution
0.1s
Program settings
100 steps 100 groups
Automatic dispensing port
4 pieces
Swirl/spinning motor
servo
Vacuum and open lid interlock
Yes.
Human Machine Interface
7 inch touch screen
lumen material
HDPE
Shell material
PP
Waste outlet
Yes.
Draw trends
Yes.
Disk form
sheet tray
Embedded Design
none
Dimensions
360*505*352mm
AC200-S-PP
Glue leveler

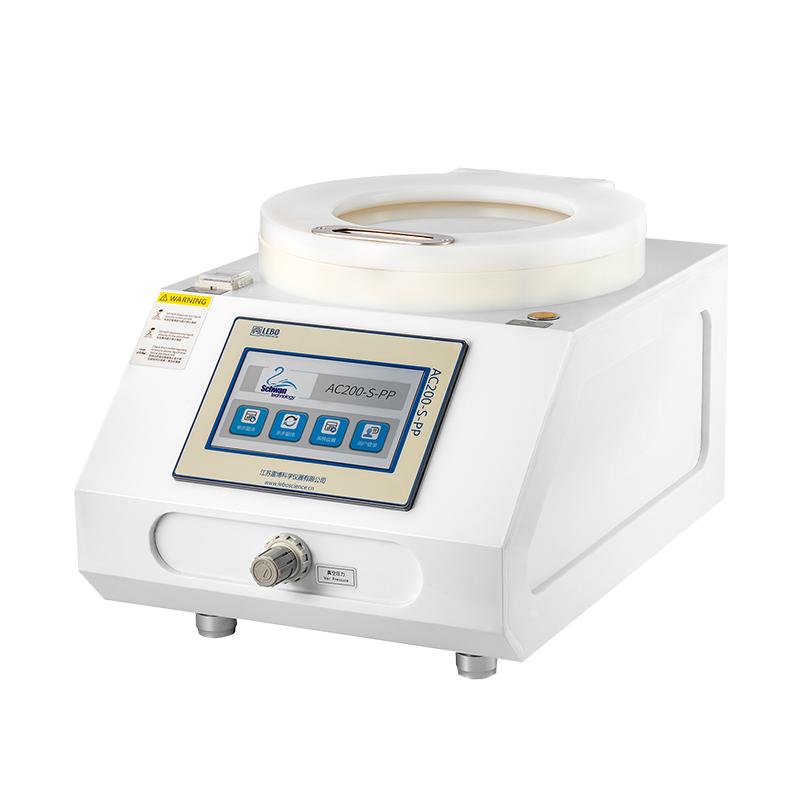

LEBO AC200-S-PP Spin Coater Picture

Features

  • Advanced servo motor drive, high precision, high repeatability

  • Industrial-grade design, PLC control, 7-inch full-color touch screen operation

  • HDPE inner chamber with lower exhaust, PP housing, PC transparent cover

  • Digital display of vacuum adsorption pressure, vacuum pressure can be adjusted

  • It can be upgraded to a vacuum-type blender and an inner cavity heating blender

  • It can be recessed in the glove box and used to reduce the operating height

  • Back cleaning and edge remover functions can be added to meet the needs of industrial machine applications

  • Substrate sizes range from less than 1 cm fragments to 8 inches of round substrate

Product parameters

  • Speed range: 20-10000rpm

  • RPM resolution: ±1rpm

  • Acceleration adjustable range: 20-50000rpm/s

  • Single-step duration: 3000 seconds

  • Temporal resolution: 0.1s

  • Uniformity of gluing: ≤±3%

  • Programmable 100 groups of 100 step programs, more extensible

  • With four automatic dispensing ports, it can be upgraded with multi-channel automatic dispensing function

  • It is equipped with 100mm master, 10mm, 25mm and 55mm sub-disks as standard

  • Dimensions: 360mm(W)*505mm(D)*352mm(H)
