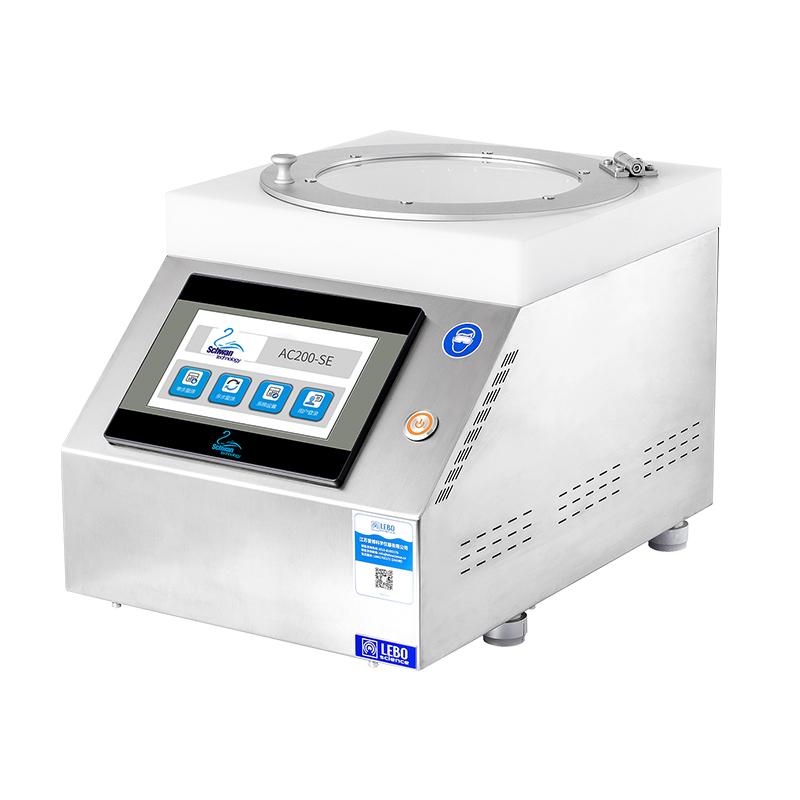

LEBO AC200-SE Spin Coater

The maximum processing size of the LEBO AC200-SE homogenizer is 8 inches, the Speed range is 20-10000rpm, and the Acceleration range is 10-50000rpm/s. The AC200-SE homogenizer can be embedded and installed in the glove box to reduce the operating height.
Model：
Certificate
Contact
Details SPEC

lebo AC200-SE Glue levelerSPEC

lebo AC200-SE Glue levelerDetails

lebo AC200-SE Glue levelerPacking list

SKU
NB035700
Maximum processing size
8 inch
Speed range
20~10000rpm
Acceleration range
10~50000rpm/s
Speed Accuracy
±1rpm
maximum single step size
3000s
Time resolution
0.1s
Program settings
100 steps 100 groups
Automatic dispensing port
4 pieces
Swirl/spinning motor
servo
Vacuum and open lid interlock
Yes.
Human Machine Interface
7 inch touch screen
lumen material
HDPE
Shell material
Brushed stainless steel
Waste outlet
Yes.
Draw trends
none
Disk form
plug-in
Embedded Design
AC200-S-EN
Dimensions
306*434*306mm
AC200-SE
Glue leveler

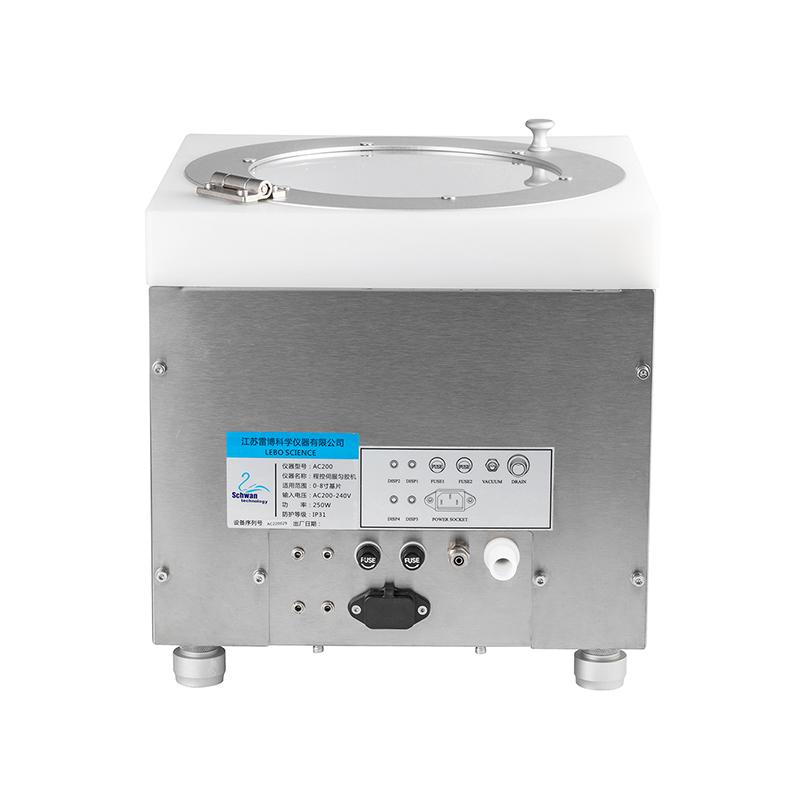

LEBO AC200-SE Spin Coater Picture

Features

  • Advanced servo motor drive, high precision, high repeatability

  • Industrial-grade design, PLC control, 7-inch full-color touch screen operation

  • HDPE inner cavity, stainless steel shell, solvent resistant PC transparent cover

  • It can be recessed in the glove box and used to reduce the operating height

  • Back cleaning and edge remover functions can be added to meet the needs of industrial machine applications

  • Splash guard cleaning and development can be added to meet customization needs

  • Substrate sizes range from less than 1 cm fragments to 8 inches of round substrate

Product parameters

Speed range: 20-10000rpm

RPM resolution: ±1rpm

Acceleration adjustable range: 20-50000rpm/s

Single-step duration: 3000 seconds

Temporal resolution: 0.1s

Programmable 100 groups of 100 step programs, more extensible

With four automatic dispensing ports, it can be upgraded with multi-channel automatic dispensing function

It is equipped with three diameters: 10mm, 25mm and 55mm

Dimensions: 306mm(W)*434mm(D)*306mm(H)
