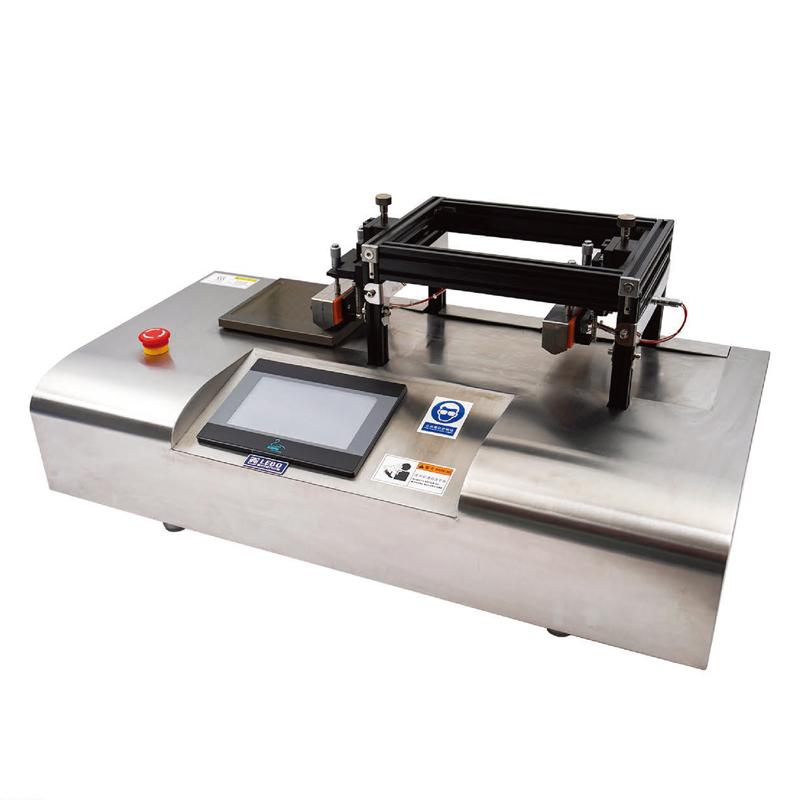

LEBO SD100-SE slot die coater
The effective area of LEBO SD100-SE slot die coater is 100mm * 100mm, the panel temperature is -200 ℃, and the panel travel is 0-200mm. The SD100-SE slot die coater cutter head is easy to replace and removable. It is suitable for cutter heads with a width of 100mm and below.
Model：
SD100-SE
lebo SD100-SE slot die coaterSPEC
lebo SD100-SE slot die coaterDetails
lebo SD100-SE slot die coaterPacking list
- SKU
- NB035718
- Coating size
- 100*100mm
- Panel temperature
- Room temperature -200 ℃
- Panel travel
- 0-200mm
- Cutter head specification
- Maximum 100mm, other optional
- Film thickness range
- 50nm-10um
- Adapt to substrate thickness
- 100μm-5mm
- Power Supply power
- 220V，1000W
- Hot Plate Power
- 220V，600W
SD100-SE
slot die coater
Features
The substrate moves and has high stability
The cutter head is easy to replace, detachable, and suitable for cutter heads with a width of 100mm and below
The cutter head and the substrate are equipped with heating function, and the substrate is equipped with vacuum adsorption function
The self-developed injection system makes the glue injection more stable and controllable
User-friendly interface operation, integrating customers' manual and automatic operation needs
Servo motor control, higher coating accuracy
It comes with a level adjustment function, which is suitable for various environments
The cutter head is independently developed, and the customized cutter head design can be matched with various sizes
