LEBO DP150-DR Film Applicator

LEBO DP150-DR Lifting Film Applicator has a running speed of 0.1-600mm/min, a maximum stroke of 300mm, and a displacement accuracy of +/- 0.1mm. The DP150-DR Lifting Film Applicator can be manually adjusted up and down, and the operating height can be controlled in real time.
Model：
Certificate
Contact
Details SPEC

lebo DP150-DR Film ApplicatorSPEC

lebo DP150-DR Film ApplicatorDetails

lebo DP150-DR Film ApplicatorPacking list

SKU
NB035721
Pull speed
0.1~600mm/min
Maximum travel
300mm
Displacement Accuracy
±0.1mm
Rated linear thrust
＞100N
Impregnation time
0-9999.9s
Coating repeability interval
0-9999.9s
Number of coating repeability
1-999 times
Rotation speed
0.1-10rpm
Wafer Select Size
≤150mm*150mm*5mm
Dimensions
303*519*550mm
DP150-DR
Film Applicator

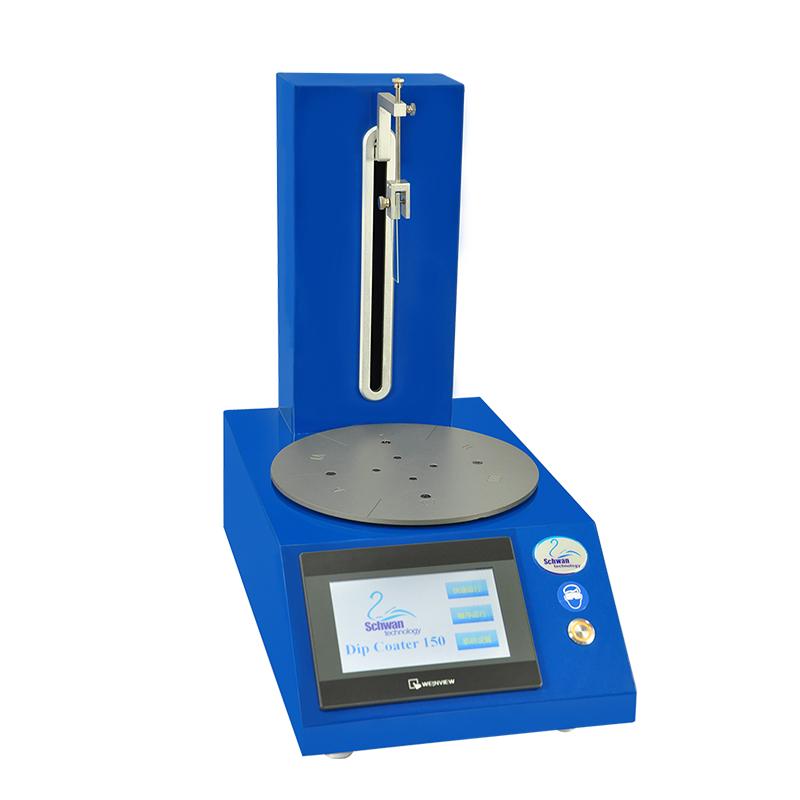

LEBO DP150-DR Film Applicator Picture

Features

  • 7-inch full-color touch screen operation, standard touch pen, easy to operate

  • With a turntable on the bottom, six coating positions are available for six standard 300 ml beakers

  • Built-in help function, loading wizard, quick to get started

  • The upper and lower height can be adjusted manually, and the operating height can be controlled in real time

  • Up to 100 sets of coating programs can be stored named, and the experimental process can be recalled at any time
