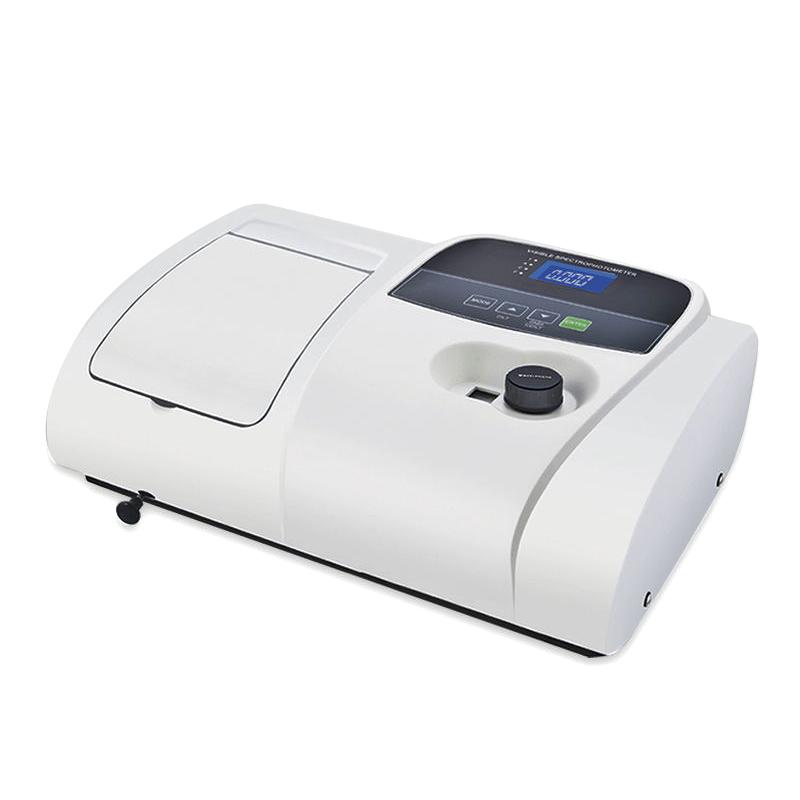

METASH V-5000 visible Spectrophotometer manual wavelength setting + concentration direct reading, large screen LCD

METASH V-5000 Visible Spectrophotometer Light spectrum Bandwidth 4nm, manual setting Wavelength range 325~ 1000nm, automatic adjustment of 100% 6T and 0% T, concentration direct reading, 128 * 64 check point array large screen LCD.

Model：

V-5000H

Certificate

METASH

Contact

Details SPEC

METASH V-5000H Visible Spectrophotometer SPEC

METASH V-5000H Visible Spectrophotometer Details

METASH V-5000H Visible Spectrophotometer Packing list

SKU: NB035723

Light spectrum Bandwidth: 4nm

Wavelength range: 325~1000nm

Wavelength Precision: ±2nm

Wavelength Repeatability: ≤0.5nm

Photometric range: 0~200%T、-0.3-3A、0~9999C

Photometric Precision: ±0.5%T

Luminosity Repeatability: ≤0.2%T

stray light: ≤0.2%T@360nm

Stability: ±0.002A/h@500nm

Interface: USB port

printout: Parallel port

monitor: 128 * 64 check point array large screen LCD

Light source: Tungsten lamp

Detector: Imported silicon photodiode

Power Supply: AC 85V~250V

Dimensions: 420*280*180mm

Weight: 8kg

V-5000H

Visible Spectrophotometer

Instrument Features and Functions:

◆ The instrument adopts new microcomputer processing technology, which is easy to operate, and the test can be completed with a few buttons

◆ Automatic adjustment of 100%T and 0%T and other control functions and data processing functions of various methods

◆ T, A, C, F four test modes are optional, easy to switch

◆ The LED digital display can directly display parameters such as transmittance, absorbance and concentration, and the reading is intuitive and accurate

◆ Unique optical system, high-performance grating, imported receiver make the instrument test more accurate

◆ Socket tungsten lamp design, lamp change without optical debugging

◆ Equipped with standard USB data output interface and parallel printout interface, which is convenient for online operation and printing data

◆ The quantitative software of the company can directly complete the photometric analysis and quantitative testing and analysis data processing

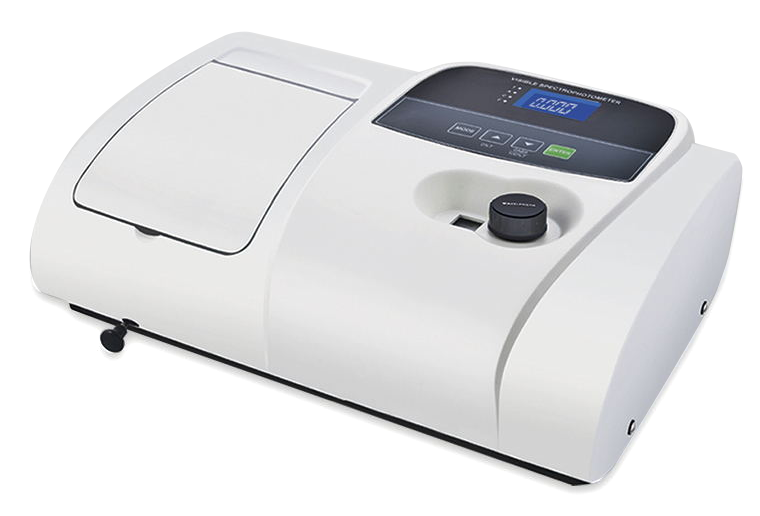

Detail Figure 1 of the V-5000H Vis Spectrophotometer

Serial models

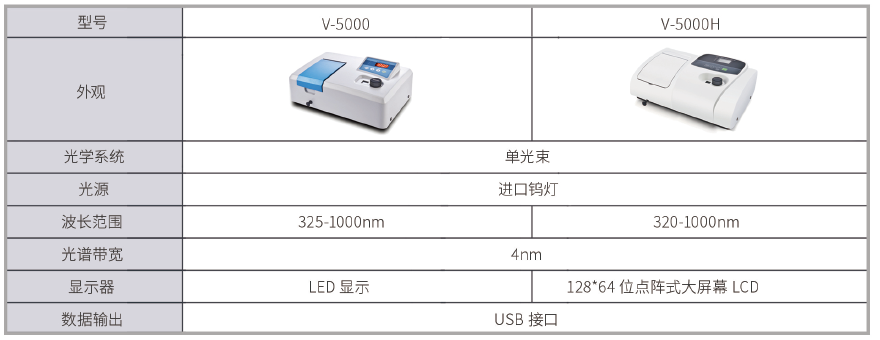

Detail Figure 2 of the V-5000H V-5000H Visible Spectrophotometer

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
