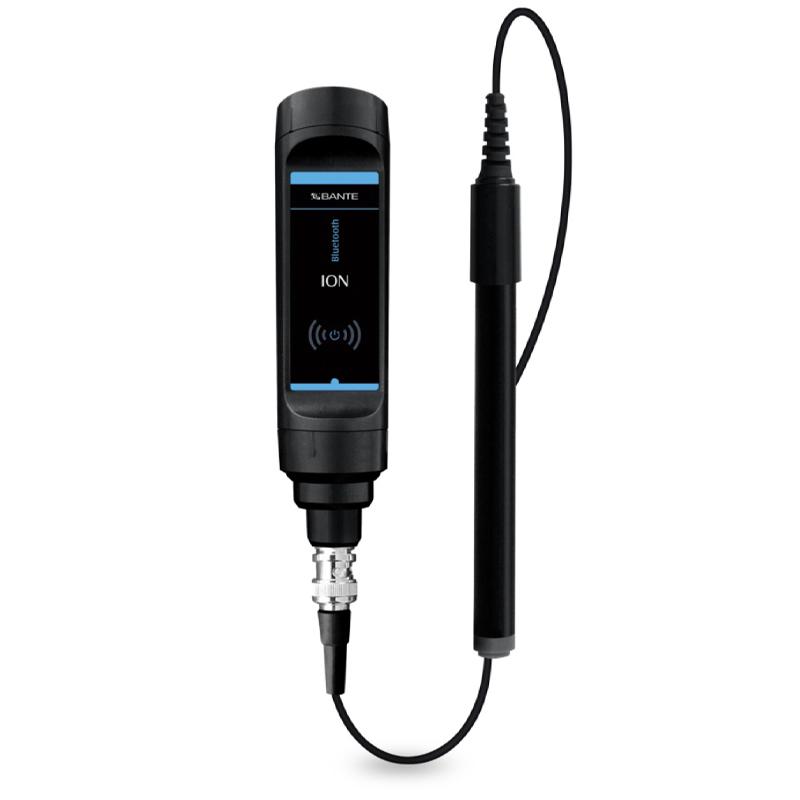

BANTE S30-Br wireless bluetooth bromine Ion Meter 0.000005~ 1mol/L
SE
S30-Br
Bante S30-Br Bluetooth Ion MeterSPEC
Bante S30-Br Bluetooth Ion MeterDetails
Bante S30-Br Bluetooth Ion MeterPacking list
- SKU
- NB035755
- Ion concentration Measurement range
- 0.000005~1mol/L
- Ion concentration display resolution
- 0.001, 0.01, 0.1, 1
- Ion concentration measurement Accuracy
- ±0.5% F.S
- Ion concentration calibrating point
- 2 to 5 point
- Ion concentration calibrating solution
- 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
- Ion Concentration Measurement Units
- ppm, mg / L, mol / L, mmol / L
- Ion concentration measurement method
- Direct reading, known addition, known reduction, sample addition, sample reduction
- Ion concentration electrode management
- 1 to 3 electrodes
- mV range
- ±2000.0mV
- mV display resolution
- 0.1, 1mV, optional
- mV measurement Accuracy
- ±0.2mV
- Temperature compensation range
- 0~100 ℃/32~ 212 ° F, manual
- Stability condition
- Fast, standard, high precision
- Measurement mode
- Continuous or automatic endpoint locking
- Timed interval reading
- 10, 30, 60, 300 seconds or off
- Calibrated reminder
- 1 to 99 days or off
- data transmission
- Send to memory or printer
- password protection
- 6 digits
- Connectivity
- Bluetooth 4.0 or higher
- Maximum transmission distance
- 10 meters
- Power Type
- 1.2V lithium battery or AAA battery 2 pcs
- Dimensions
- F40 * 175mm
- Gauge Weight
- 100g
- Measurement parameters
- Bromine ion

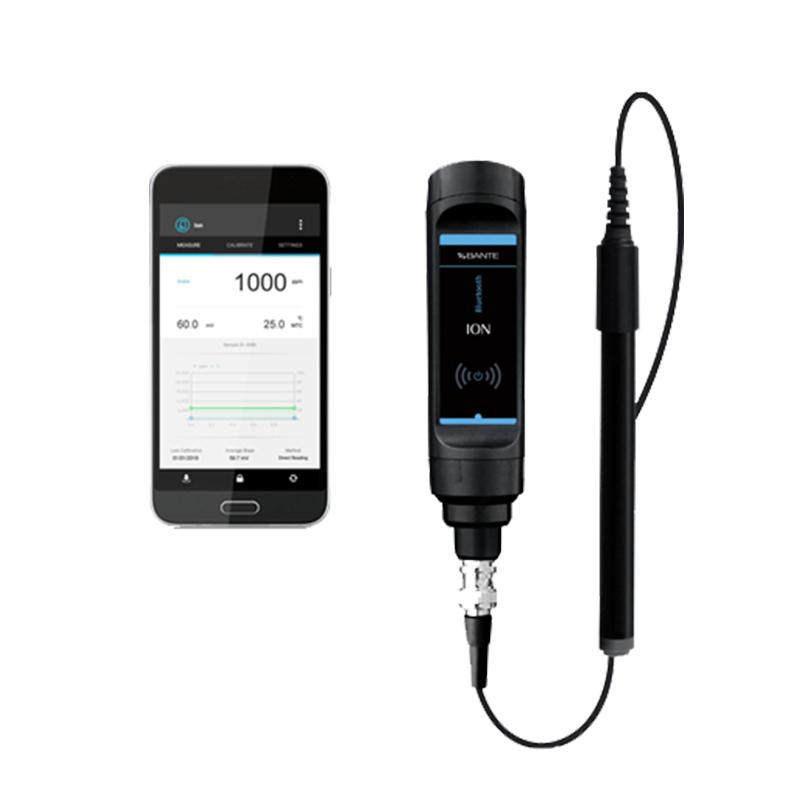

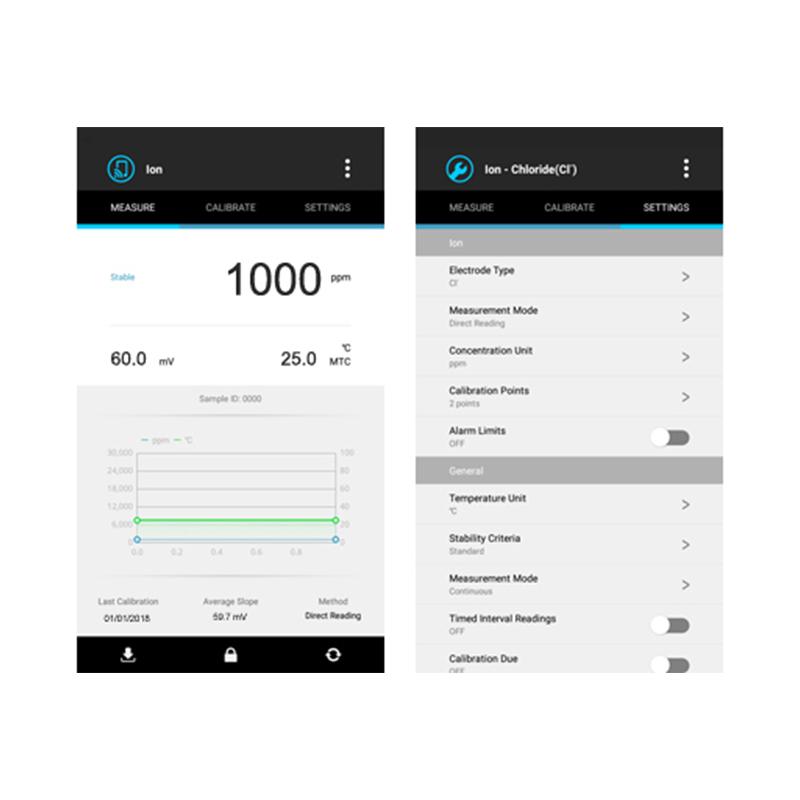

High-performance wireless Bluetooth Ion Meter, suitable for Android smartphones or tablets, 5-point key calibration, the meter can be equipped with various ion selective electrodes, measurement accuracy: 1% FS.
This S30-Br is used to test the bromide ion concentration, the ion concentration measurement range is 0.000005~1mol/L, and the measurement accuracy is ±0.5% FS.
Features
• High-performance Bluetooth Ion Meter, providing 5 ion concentration measurement methods.
• Optional ion concentration units, including ppm, mg/L, mol/L and mmol/L.
• 2 to 5 point calibration, including 8 concentration calibration points are optional.
• Electrode management, can store 3 electrode slopes and recall calibration data.
• Manual temperature compensation to eliminate measurement errors caused by temperature deviation.
• Automatic end point locking, keeping stable readings for easy viewing and recording.
• Timed interval readings, sending measurement data to memory or printer.
• Limit alarm, automatically warns if the measured value exceeds the set range.
• Calibration Due Reminder, reminding users to calibrate the meter regularly.
• Calibration report showing date, time, calibration point and slope.
• Password protection to prevent unauthorized calibration and setup.
• Multi-parameter measurement, can connect Bluetooth conductivity and Dissolved Oxygen Meter to the device and display the measured value.
• Reset function, automatically restores the instrument to factory default settings.
S series selection
S10: Meter, pH standard buffer, carrying case
S20: Meter, solution storage bottle, carrying case

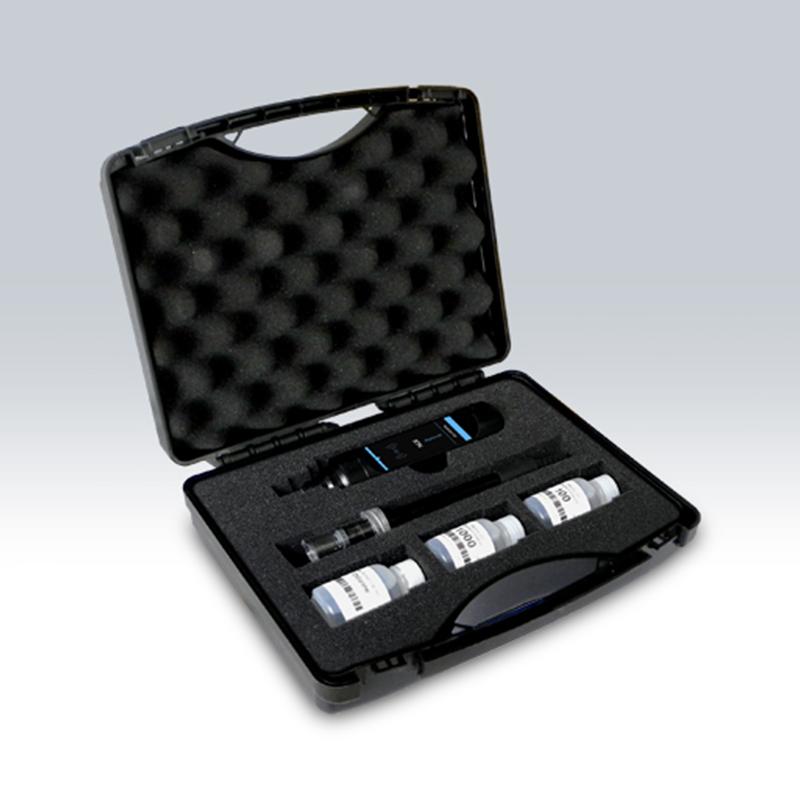

S30: Measuring instrument, ion selective electrode (made in USA), standard solution (100 /1000ppm), ionic strength adjuster, carrying case
S40: measuring instrument, water hardness electrode (made in UK), standard solution (0.01/0.1mol/L), ionic strength adjuster, carrying case
S50: Meter, conductivity standard solution, carrying case
S60: Meter, Dissolved Oxygen Electrode Made in USA, ( ) Electrolyte, Electrode Diaphragm Cap, Carrying Case
S30 series specification parameter table
| model | parameter | Range |
| S30-NH4 | ammonium ion | 5x10 -6 ~1mol/L |
| S30-Br | bromide ion | 5x10 -6 ~1mol/L |
| S30-Ca | calcium ion | 5x10 -7 ~1mol/L |
| S30-CL | Chloride | 5x10 -6 ~1mol/L |
| S30-Cn | Cyanide | 5x10 -6 ~0.01mol/L |
| S30-F | Fluoride ion | 1x10 -6 mol/L~saturated |
| S30-NO3 | Nitrate | 7x10 -6 ~1mol/L |
| S30-Ag | silver ion | 1x10 -7 ~1mol/L |
| S30-Na | sodium ion | 1x10 -7 ~1mol/L |
| S30-Cd | Cadmium ion | 1x10 -5 ~1mol/L |
| S30-Cu | Copper ions | 1x10 -6 ~0.1mol/L |
| S30-I | iodide ion | 1x10 -8 ~0.1mol/L |
| S30-Pb | lead ion | 5x10 -8 ~1mol/L |
| S30-K | Potassium ion | 1x10 -8 ~0.1mol/L |
| S30-S | Sulfide ion | 1x10 -6 ~1mol/L |
| S30-NH3 | Ammonium ion | 1x10 -6 ~1mol/L |
| S30-WH | water hardness | 0.05~200mmol/L |
