MODERNER XD-746 Exposure rack 184 pieces

SE
MODERNER XD-746 Exposure rack size 2000x1550x1450mm (inclination angle 45 degrees fixed), one exposure to standard samples (150x70mm) 184 pieces.
Model：
Certificate
Contact
Details SPEC Con CAT

Moderner XD-746 Exposure rackSPEC

Moderner XD-746 Exposure rackDetails

Moderner XD-746 Exposure rackPacking list

SKU
NB035775
Specifications
2M
material
Corrosion resistant Aluminum profile
Dimensions
2000X1550x1450mm (inclination angle 45 degrees fixed)
Single exposure standard sample (150x70mm)
184 pieces
XD-746
Exposure rack

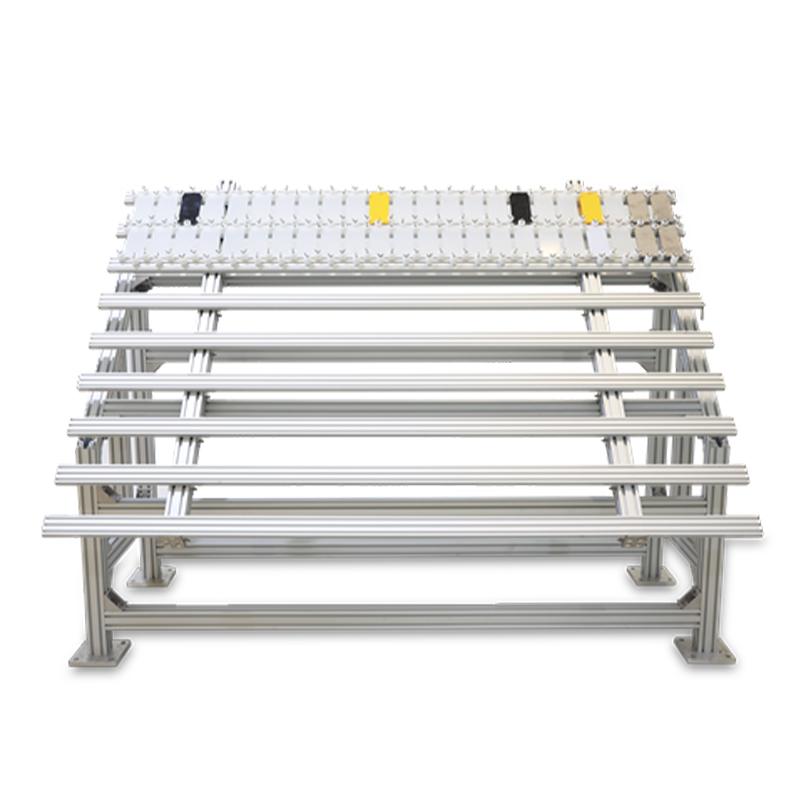

MODERNER XD-746 Exposure rack 184 pieces Picture

MODERNER XD-746 Exposure Rack Details Figure 1

Direct exposure testing is a common test method that can be applied to coatings, inks, plastics or other outdoor end products. Most test samples can be easily mounted on the XD-746 exposure rack. Our direct exposure rack kits meet ISO 877-2 Method A , ASTM G7, ASTM D4141 or SAE J1976 equipment requirements for exposure testing. (The specific Specifications are customized according to the requirements of customers.)

Dimensions

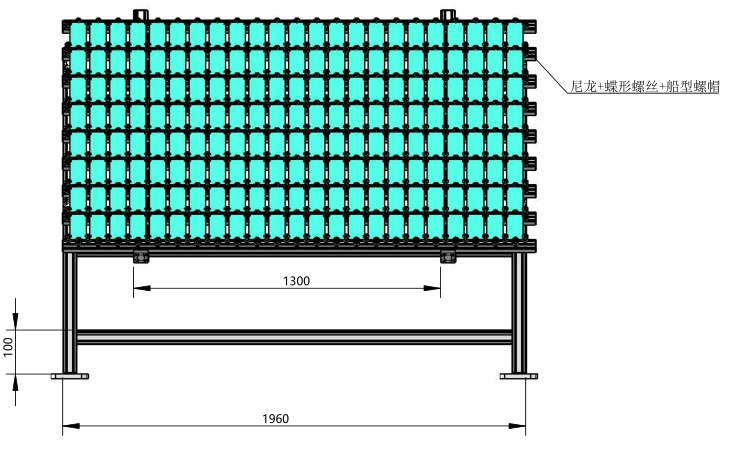

Details of MODERNER XD-746 drying rack 2

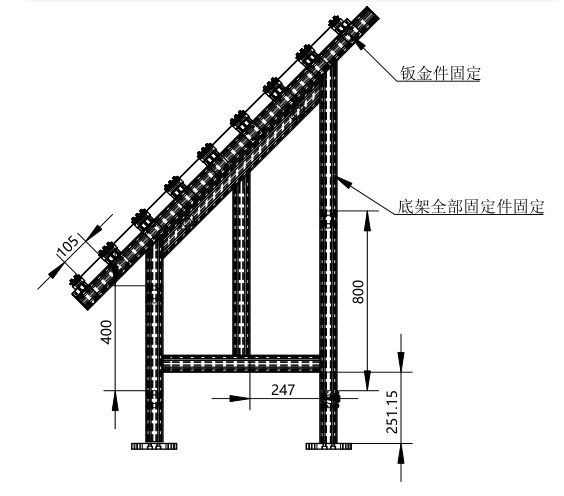

MODERNER XD-746 Exposure Rack Details Figure 3

FAQ
QI want to do an outdoor sun exposure test for my paint. What equipment should I use?
A XD-746 Exposure rack, designed for outdoor products such as paints, meets ISO 877-2 and ASTM standards, with a 45-degree inclination angle that simulates real-world exposure conditions and can measure 184 samples at a time.
QPlastic products weathering resistance test what instrument to choose?
A XD-746 Exposure rack is suitable, using corrosion-resistant aluminum, meeting ASTM G7 and other plastic testing standards, direct exposure to the sun can truly reflect the product's outdoor aging.
QShelf size and materials
A Dimension 2000 * 1550 * 1450, corrosion resistant Aluminum profile,
QHello, can this plastic stretch spline be placed? Is it evenly exploded?
A It can be placed without error.
QExposure rack is swirling/spinning?
A This is fixed angle, no swirling/spinning.
QHow many boards can be placed in 2 meters?
A The general standard board is 150 x 70mm, and 184 pieces can be placed.
QDo you have any shelves specially used for weather test? Is there any requirement for thickness?
A Yes, Exposure rack, generally no more than 5mm, if more than 5mm to do the column.
