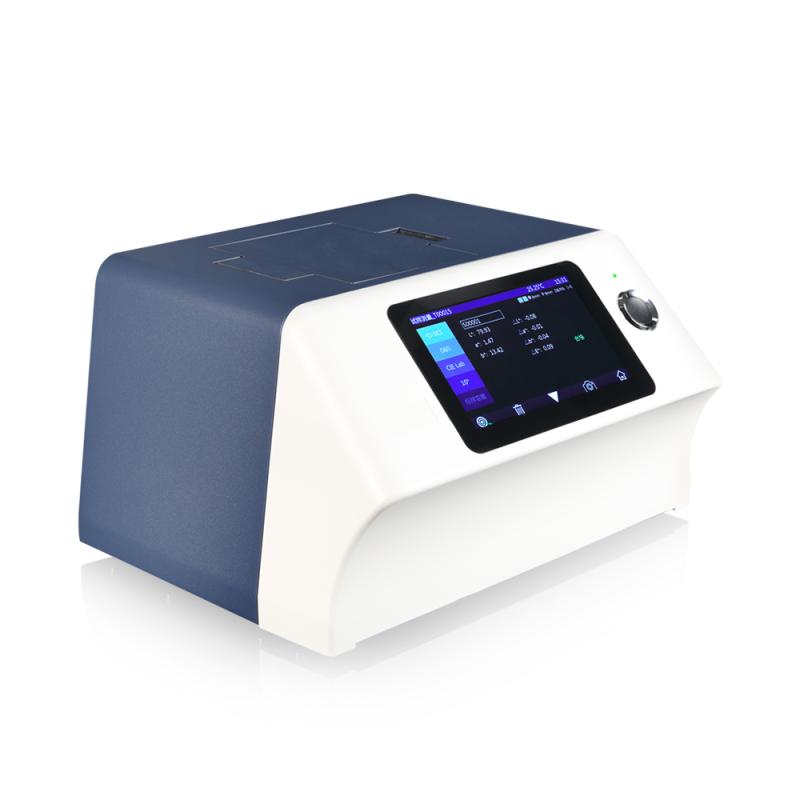

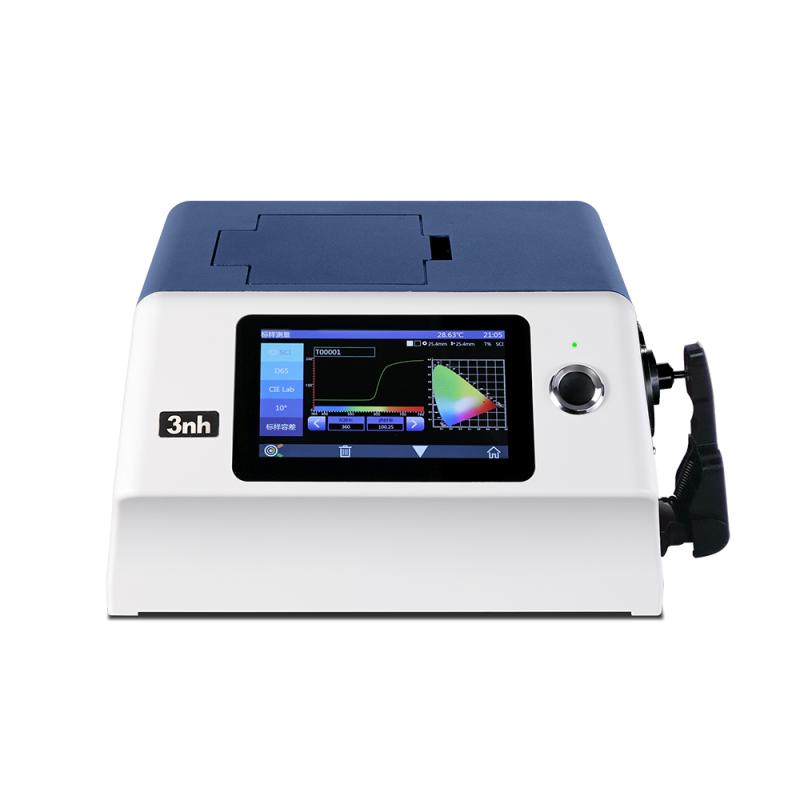

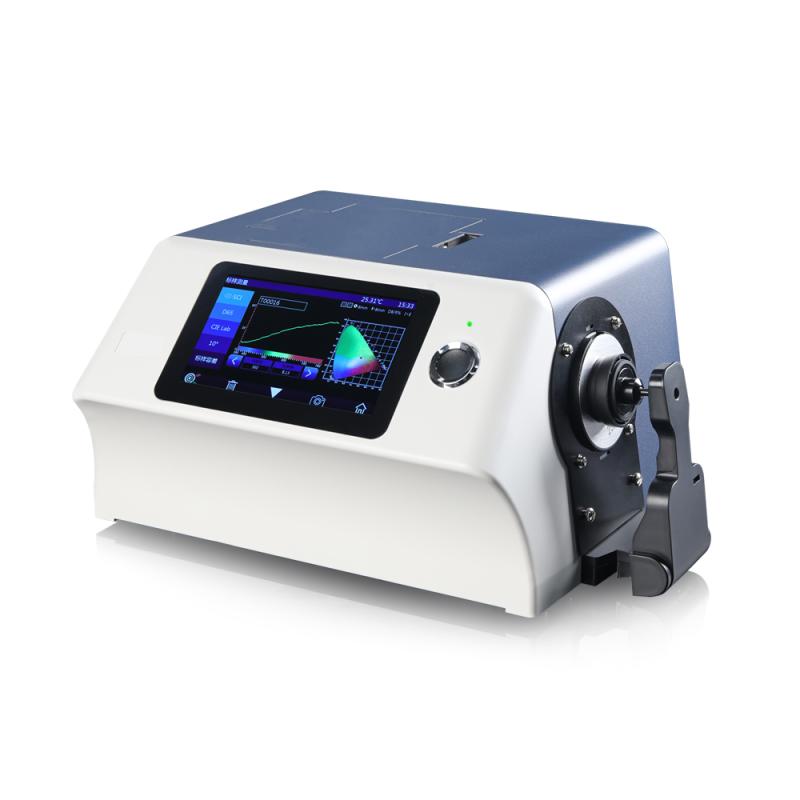

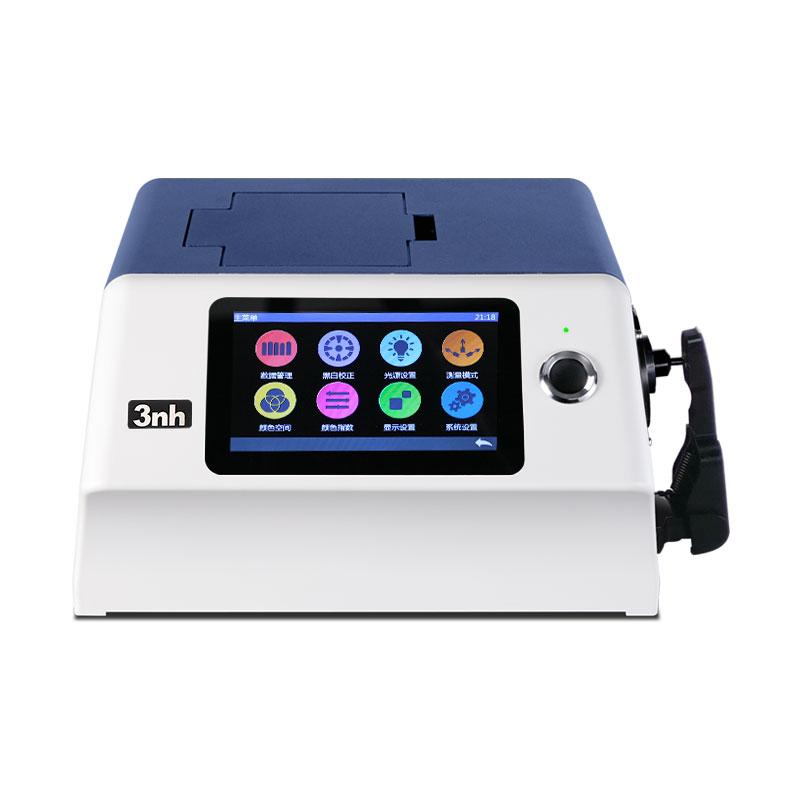

3NH YS6003 Desktop Colorimeter

YS6003

Desktop Colorimeter

Built-in temperature sensor, monitor and compensate the test environment to ensure more accurate measurement results, widely used in plastic electronics, paints inks, Spinning & weaving garment printing and dyeing, printing and other industries reflection samples, transparent samples Color transfer and quality control.

Introduction

YS6020 is a domestic (CN) desktop grating Spectrophotometer independently developed by 3nh company with completely independent intellectual property rights, TFT true color 7inch capacitive touch screen, full light source, lighting method: reflection D/8°, transmission D/0° (including UV/exclusion UV measurement) Accurate and stable color measurement, large storage capacity, and powerful expansion functions on the PC side, used for accurate analysis and transmission of color in the laboratory.

Features

1. High hardware configuration: 7-inch TFT pure color capacitive touch screen; concave grating;

2. Dual-array 256-pixel CMOS Detector; 5 million times life-stable full-wavelength LED light source;

3. Measure the reflection and transmission spectrum of the sample, and the Lab data is accurate, which can be used for color matching and accurate color transfer;

4. Caliber automatic identification, Φ25.4/8/4mm three kinds of caliber can be switched freely, taking into account the special needs of customers at the same time;

5. Temperature monitoring and compensation, built-in temperature sensor, monitors and compensates the test environment to ensure more accurate measurement results;

6. The test Wavelength range is 360~780nm, which can test samples containing fluorescence, with wide applicability and simple operation;

7. Independent light source Detector to ensure reliable light source;

8. A variety of measurement modes: quality control mode, sample mode, to meet the needs of more customers

9. A variety of optional accessories: reflection sample holding tool, transmission fixture, micro-hole 4mm transmission fixture, instrument inversion test fixture, suitable for more Operating Conditions;

10. It can store about 20,000 pieces of test data, which can meet most usage scenarios;

11. Built-in camera positioning;

12. PC-side software is used to store and manage data.

plastic sample

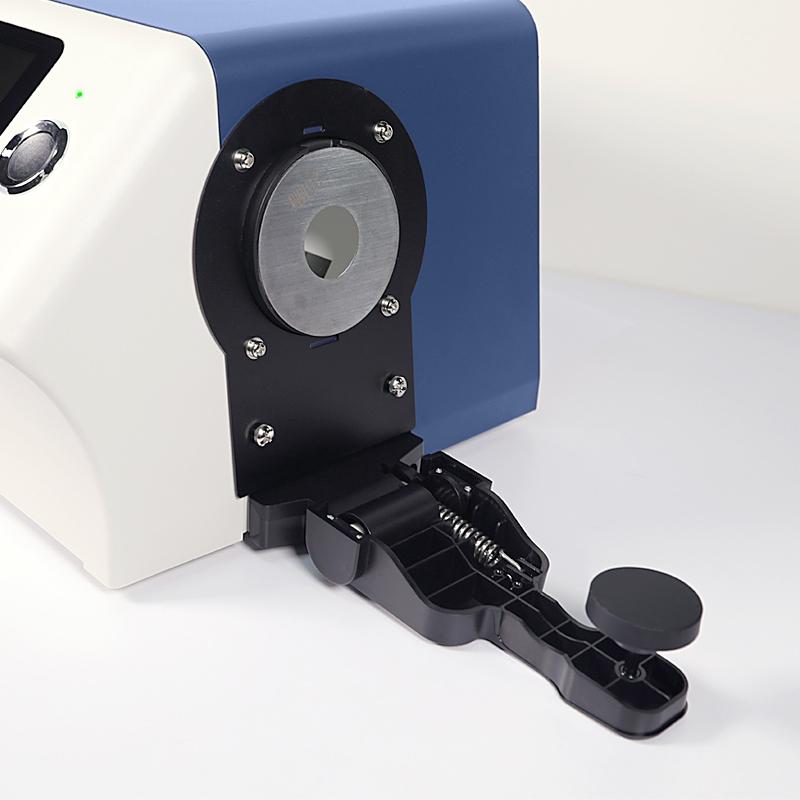

Reflection measurement: adopt D/8 structure (diffuse illumination, 8° direction), conform to IS07724/1, CIE, ASTM, DIN and JIS standards.

transmission sample

Transmission measurement: adopt D/0 structure (diffuse illumination, 0° direction reception), comply with ISO, CIE, ASTM and DIN standards.

Liquid, powder, solid sample measurement

Measuring caliber

Caliber automatic identification Φ 25.4/8/4mn three kinds of caliber can be switched freely, taking into account the special needs of customers;

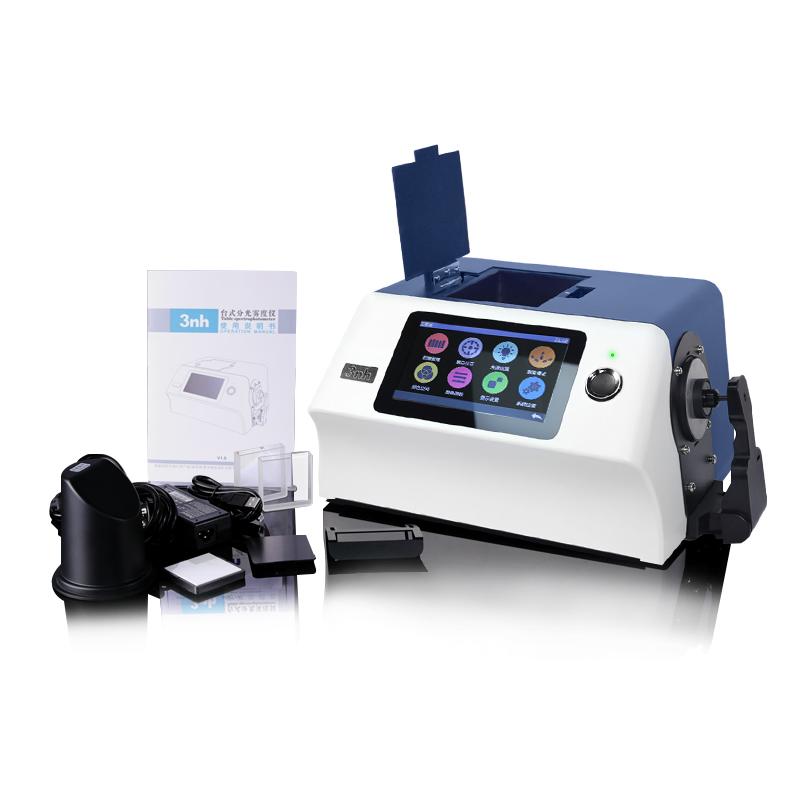

Packing list：Host X1, power adapter X1, quality management software (official website download, only for managing data) X1, data cable X1, standard correction board X1, black correction box X1, transmission black baffle X1, sample holder X1, 25.4 caliber X1, 8 caliber X1, 4 caliber X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
