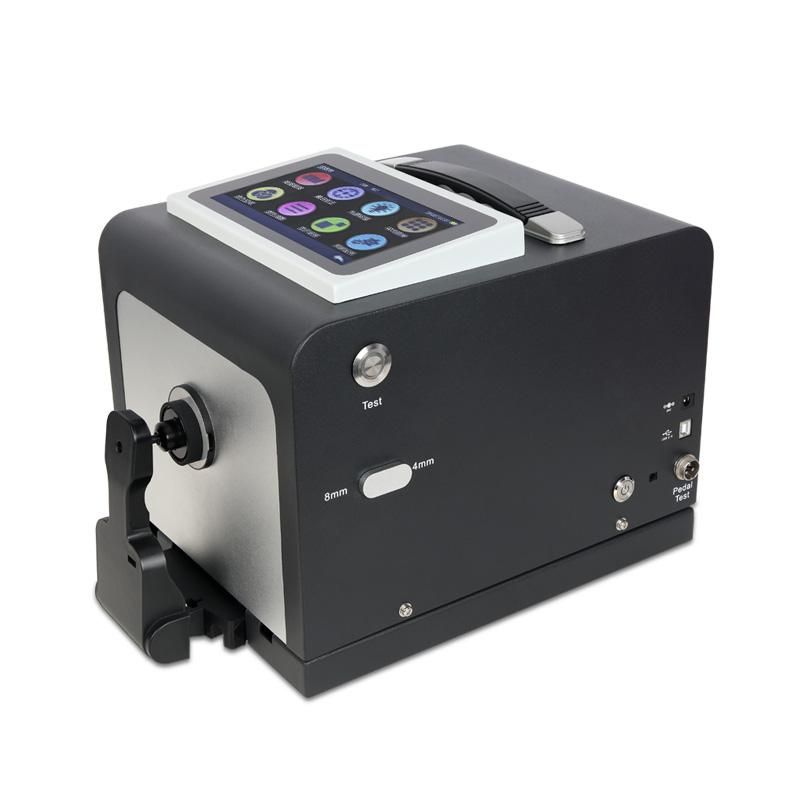

3NH TS8450 Portable Desktop Colorimeter
TS8450
3NH TS8450 Portable Desktop ColorimeterSPEC
3NH TS8450 Portable Desktop ColorimeterDetails
3NH TS8450 Portable Desktop ColorimeterPacking list
- SKU
- NB035801
- Lighting method
- 45/0 (45 ring uniform illumination 0 ° reception)
- Integrating sphere size
- Φ40mm
- Lighting source
- Light spectrum LED Light source, UV Light source
- spectroscopy
- Plane grating spectroscopy
- Sensor
- 256 pixel dual array CMOS image sensor
- Wavelength range
- 400~700nm
- wavelength interval
- 10nm
- Light spectrum Bandwidth
- 10nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber
- 定制单一口径：LAV:Φ18mm/Φ20mm;MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm
- Light-containing method
- 45/0
- Color Space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Chroma indicator
- WI, YI, homochromatic index MI, colour fastness, discoloration fastness, force, coverage, 555 shade classification
- Viewing Angle
- CIE 2°/10°
- Available Light Sources
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
- display mode
- Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
- Measurement time
- About 1.8s
- Repeatability of chromatic value
- MAV/SCI,ΔE*ab 0.02以内
- Inter-instrument Agreement
- ΔE*ab<0.15(MAV/SCI)
- Measurement mode
- Single measurement, average measurement (2~ 99 times)
- Dimensions
- 370*240*260mm
- Weight
- About 7.8kg
- Power supply Voltage
- DC 24V, 3A power adapter Power Supply
- Lighting source life
- More than 3 million measurements in 5 years
- Display
- TFT true color 7.0inch, capacitive touch screen
- Interface
- USB, Bluetooth ® 5.0, trigger switch interface
- data storage
- 1000 master standards and 30,000 samples
- Operating language
- Simplified Chinese, English, Traditional Chinese
- Operating environment
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage environment
- -20~50 ℃, 0~85% RH (no condensation)
- meet the standard
- CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Introduction
TS8450 is a portable desktop Spectrophotometer with 45/0 optical structure, which adopts a 256-pixel dual-array CMOS image sensor and imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability of the instrument is easily controlled within 0.02, and the difference between stages is controlled within 0.15, and the measurement is accurate, which can be used for accurate analysis and transmission of color in the laboratory. TS8450 portable desktop Spectrophotometer is suitable for the measurement of luminance factor and color coordinates of traffic road signs, markings and reflective films, including GB 2893 and GB/T 18833 standard colors, and can manually customize the polygon moment description.
Applications
The TS8450 portable desktop Spectrophotometer is equipped with a single customized Φ18/8/4mm measuring aperture, which is used for accurate color measurement and quality control in plastics and electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and can be used for fluorescence sample measurement. In addition, the TS8450 portable desktop Spectrophotometer is suitable for the measurement of luminance factor and color coordinates of traffic road signs, markings and reflective films, including GB 2893 and GB/T 18833 standard colors, and can manually customize the polygon moment difference.
Features
1. Adopt a combination of full-spectrum LED light source and UV light source
The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in a specific wavelength band, ensures the measurement speed of the instrument and the accuracy of the measurement results, and the professional UV light source ensures that the UV test is more reliable.
2. A variety of color measurement space, a variety of observation light sources
The TS8450 portable benchtop Spectrophotometer is available in CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 Munsell (C/2) color spaces, as well as D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84) , F12 (TL83/U30) a variety of observation light sources, which can meet the special measurement needs under different measurement conditions.
3. Metrological verification report
Each TS8450 portable desktop Spectrophotometer has been verified and tested, and the instrument is verified according to the measurement standards of the credible verification department, and the measurement data is traced back to the National Institute of Metrology to ensure the credibility of the instrument test data.
4. Industrial-grade high-definition touch screen, simple and easy-to-use user interface
The 7-inch industrial-grade high-definition touch screen is used for smooth operation, and the easy-to-use user interface makes the operation comfortable, convenient and easier to use.
5. Color management software
The TS8450 portable desktop Spectrophotometer is equipped with SQCT management software, which is suitable for quality monitoring and color data management in various industries, as well as the luminance factor and color coordinate measurement data management of traffic road signs, markings and reflective films. Digitize the user's color management, compare the color difference, generate a test report, provide a variety of color space measurement data, and customize the customer's color management work.
6. Practical optional accessories
Micro printers, foot switches, and rotary brackets can be freely selected according to needs
