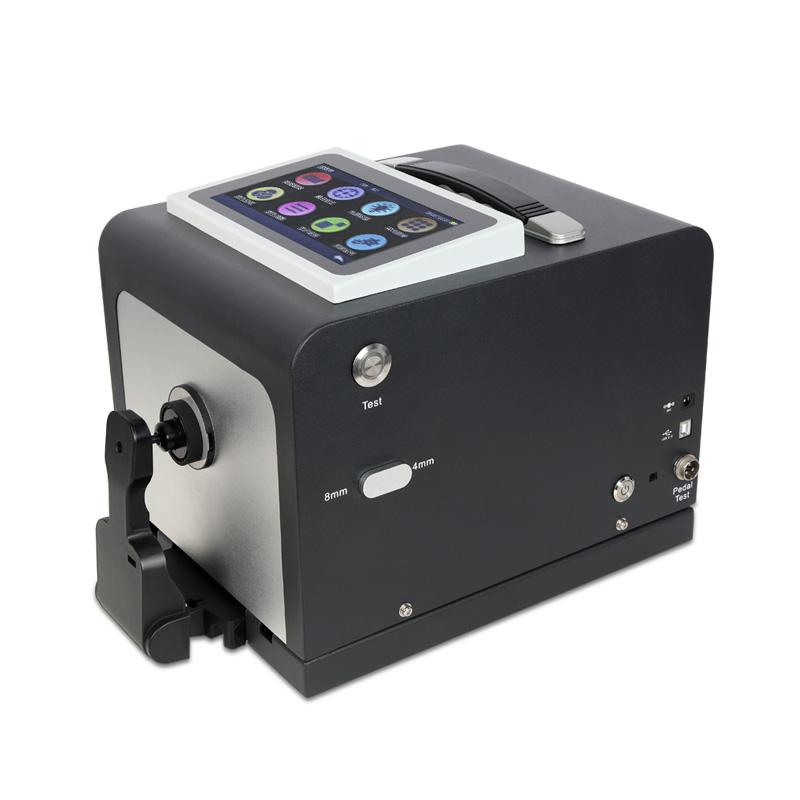

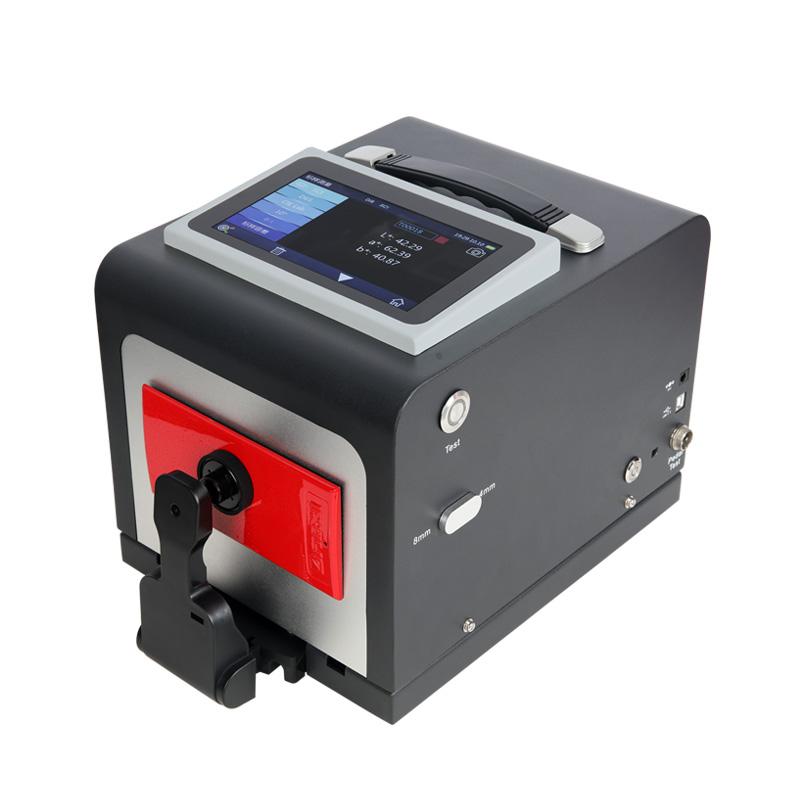

3NH TS8210 Portable Desktop Colorimeter

D/8 structure, touch screen, support SCI + SCE simultaneous measurement, φ 40mm integrating sphere, combined full Light spectrum LED Light source, camera viewfinder positioning, with Color management software, Repeatability Delta E * ab within 0.025, Measurement.

Price: Please contact customer service

Model：

TS8210

Certificate

3NH

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

3NH TS8210 Portable Desktop ColorimeterSPEC

3NH TS8210 Portable Desktop ColorimeterDetails

3NH TS8210 Portable Desktop ColorimeterPacking list

SKU: NB035802

Lighting method: D/8 (diffuse illumination, 8 ° direction reception); SCI/SCE measurement; exclude UV measurement; comply with standards CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Integrating sphere size: F40mm

lighting source: Light spectrum LED light source

Spectroscopic method: Plane grating spectroscopy

sensor: Silicon photodiode array (double row 40 groups)

Wavelength range: 400~700nm

wavelength spacing: 10nm

Light spectrum half bandwidth: 10nm

Reflectance Measurement Range: 0~200%

Measurement caliber: 定制单一口径：MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm

Light-containing method: Simultaneous testing of SCI/SCE

Color space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)

Color difference formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00

Chromaticity indicator: WI, YI, lightfastmess, color fastness, force, coverage, 8 degree glossiness

Viewing Angle: CIE 2 ° / 10 °

Available Light Sources: D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)

display mode: Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias

Measurement time: About 1.5s (about 3.2s for simultaneous test SCI/SCE)

Chromatic value repeability: MAV/SCI,ΔE*ab 0.025以内

Inter-station difference: ΔE * from < 0.2 (MAV / SCI)

Measurement mode: Single measurement, average measurement (2~ 99 times)

Positioning method: Camera positioning

Dimensions: 370*240*260mm

Weight: About 7.8kg

Power: DC 24V, 3A power adapter Power

Lighting source life: 5 years more than 3 million measurements

Display: TFT true color 7.0 inch, capacitive touch screen

Data Interface: USB, trigger switch interface

Data storage: 1000 master standards and 20,000 samples (one piece of data can include SCI/SCE at the same time)

Operating language: Simplified Chinese, English, Traditional Chinese

Operating conditions: 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m

Storage environment: -20~50 ℃, 0~85% RH (no condensation)

TS8210

Portable Desktop Colorimeter

Introduction

The portable desktop Spectrophotometer TS8210 is a Spectrophotometer developed by 3nh using its own spectroscopic core technology. It adopts a built-in silicon photodiode array (40 sets of double columns) sensors and an imported whiteboard, taking into account the measurement speed and the convenience of operation. The repeatability ΔE*ab of TS8210 portable desktop Spectrophotometer is easily controlled within 0.025, and the inter-stage difference ΔE*ab is controlled within 0.2. Accurate measurement can be used for precise analysis and transmission of color in the laboratory.

Applications

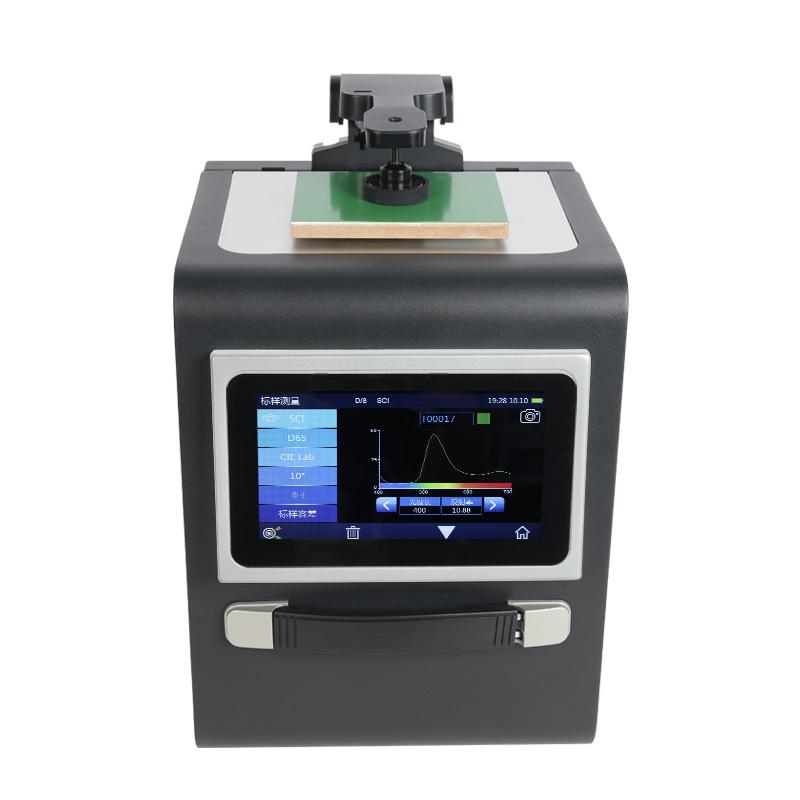

TS8210 portable desktop Spectrophotometer adopts customized single Φ8mm and Φ4mm measuring aperture, can be measured horizontally or vertically, and has wider adaptability, meeting the requirements of accurate color measurement and quality measurement in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries. control.

Features

1. It adopts the internationally accepted D/8 structure, compatible with SCI/SCE measurement, and supports SCI+SCE simultaneous rapid measurement

TS8210 portable desktop Spectrophotometer adopts D/8 lighting observation conditions widely applicable in the world, SCI/SCE (including specular reflection/not including specular reflection) synthesis technology, supports SCI+SCE simultaneous rapid measurement, and the test time is about 3.2 Second.

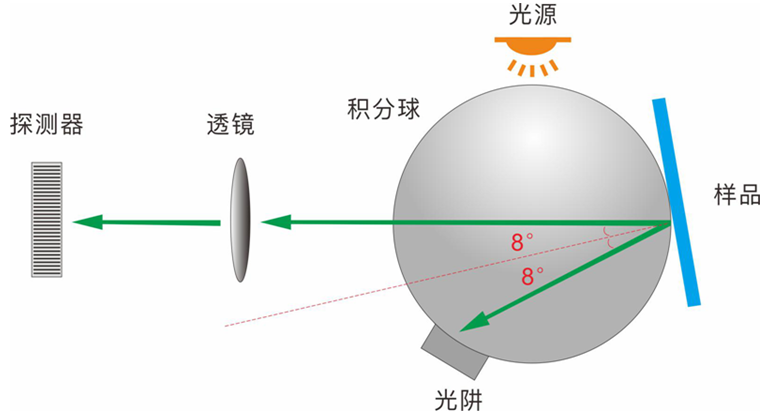

3nh TS8210 Portable Desktop Spectrophotometer Details Figure 1

2. Silicon photodiode array (double 40 array) sensor

Larger area double 40 array sensor, strong light will not be saturated, low light sensitivity is higher and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.

3. A variety of color measurement spaces, a variety of observation light sources

TS8210 portable desktop Spectrophotometer provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Munsell (C/2) color space, and D65, A, C, D50, F2 (CWF), F7 (DLF), F10(TPL5), F11(TL84), F12(TL83/U30) various observation light sources, which can meet the special measurement requirements under different measurement conditions.

4. Adopt combined full-spectrum LED light source

The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectrum loss of white LEDs in specific bands, and ensures the measurement speed of the instrument and the accuracy of measurement results.

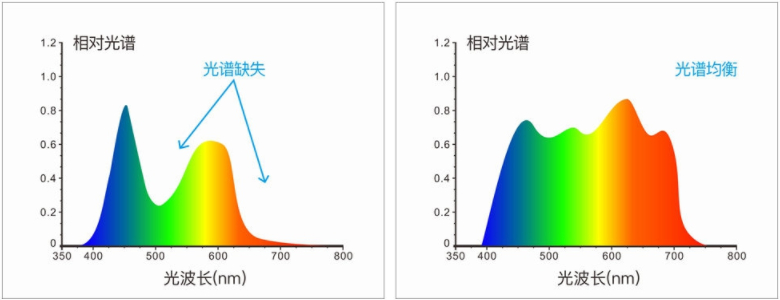

3nh TS8210 Portable Desktop Spectrophotometer Details Figure 2

5. Measurement verification report

Each TS8210 portable desktop Spectrophotometer has been verified and tested. The instrument is verified according to the measurement standards of the credible verification department when it leaves the factory. The measurement data is traceable to the National Metrology Institute to ensure the reliability of the instrument test data.

6. Camera framing and positioning, can clearly observe the measured area

The TS8210 portable desktop Spectrophotometer has a built-in camera for viewing and positioning. Through the real-time viewing of the camera, it can accurately determine whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.

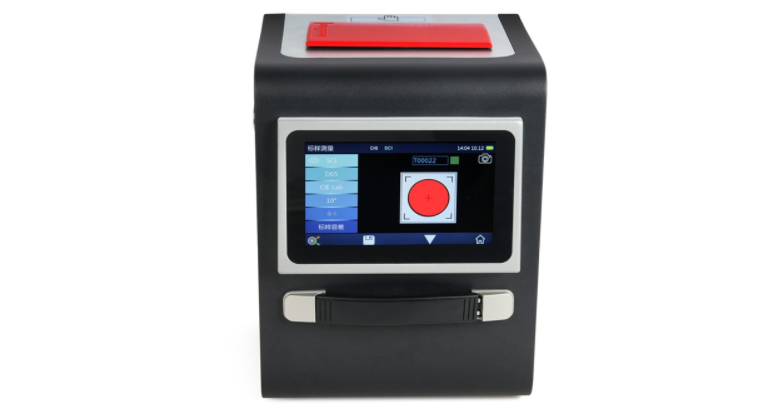

3nh TS8210 Portable Desktop Spectrophotometer Details Figure 3

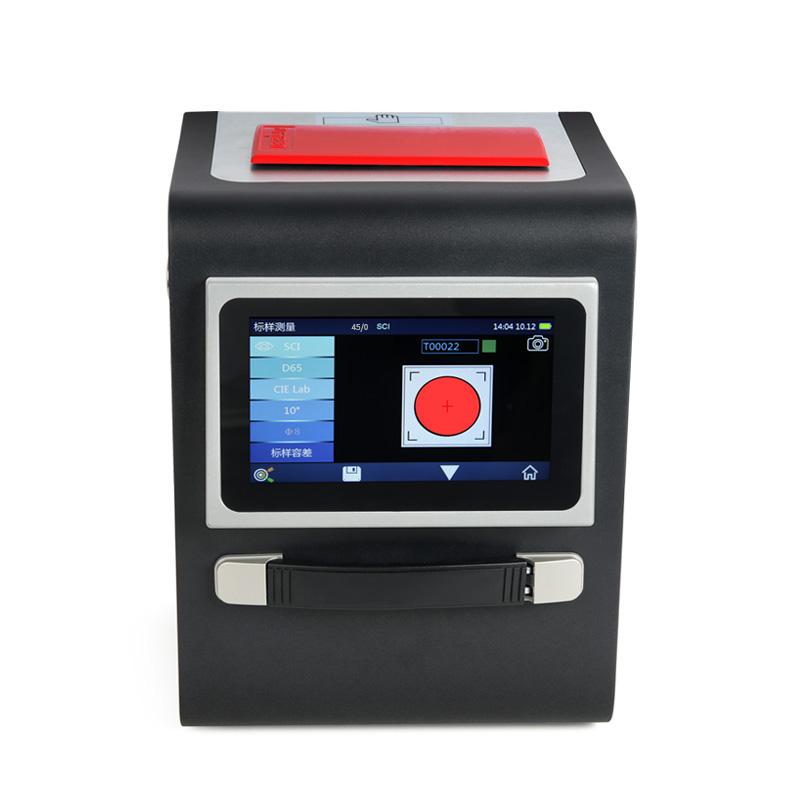

7. Industrial-grade high-definition touch screen, easy-to-use user interface

Adopting 7-inch industrial-grade high-definition touch screen, the control is smooth, and the simple and easy-to-use user interface makes the operation comfortable, convenient and easier to use.

8. Color management software

The TS8210 portable desktop Spectrophotometer is equipped with SQCX quality management software, which is suitable for quality monitoring and color data management in various industries. Dataize the user's color management, compare color differences, generate test reports, provide a variety of color space measurement data, and customize the customer's color management work.

9. Practical optional accessories

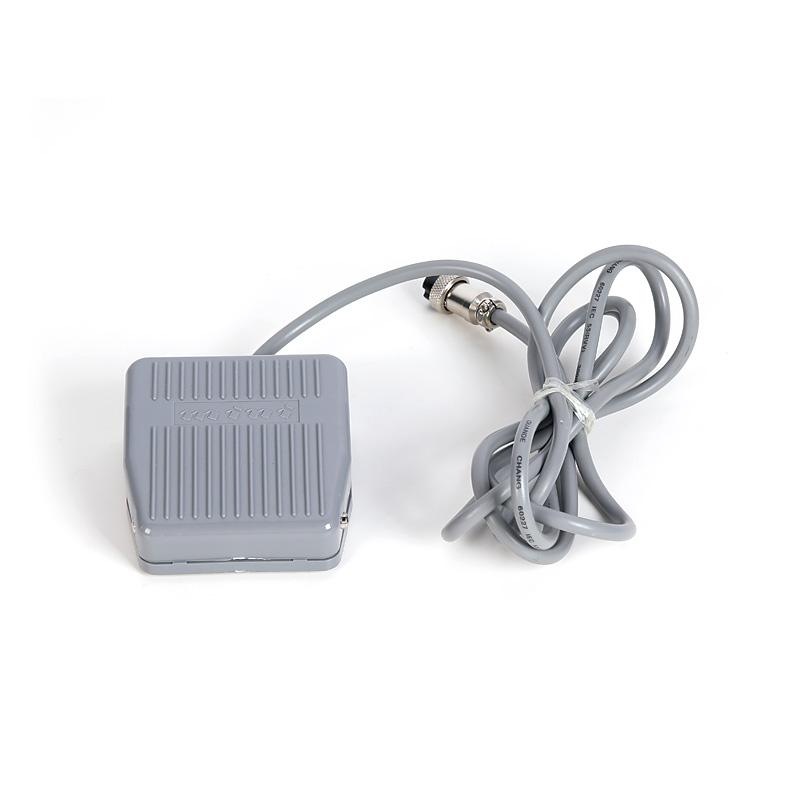

Micro printer, foot switch, rotating bracket can be freely selected according to needs
