3NH NR4520 Whiteness TesterSPEC
3NH NR4520 Whiteness TesterDetails
3NH NR4520 Whiteness TesterPacking list
- SKU
- NB035803
- Illumination conditions
- 45/0 (45 direction incidence /0 degree reception); in line with standard CIE No.15, GB/T 3978.
- light source
- LED light source
- sensor
- Silicon photodiode
- Measurement aperture
- Φ20mm platform measurement diameter (Φ10mm measurement diameter can be customized)
- Detector Response Function
- D65 Light Source xCIE10 Degree Response
- Chromaticity indicator
- ISO R457 whiteness, CIE whiteness, ASTM E313 whiteness, yellowness YI, reflectance
- show
- Difference, Pass/Fail Results
- Measurement time
- 1.5s
- Sexual repeability
- Within ΔR0.1 (after instrument preheating correction, the average value of 30 whiteboard measurements at intervals of 5s)
- Inter-station difference
- ΔR within 0.5 (BCRA series Ⅱ 12 color plate measurement average)
- Dimensions
- 205*67*80mm
- Weight
- 400g
- Battery level
- Rechargeable Li-Ion Battery 3.7V @3200mAh
- Lighting source life
- 5 years more than 1.60 million measurements
- Display
- TFT True Color 2.8inch @(16:9)
- Store data
- 100 master standards, 5000 samples
- Operating temperature range
- 0~40℃（32~104°F）
- Storage temperature range
- -20~50℃（-4~122°F）
- PC software
- without
Introduction

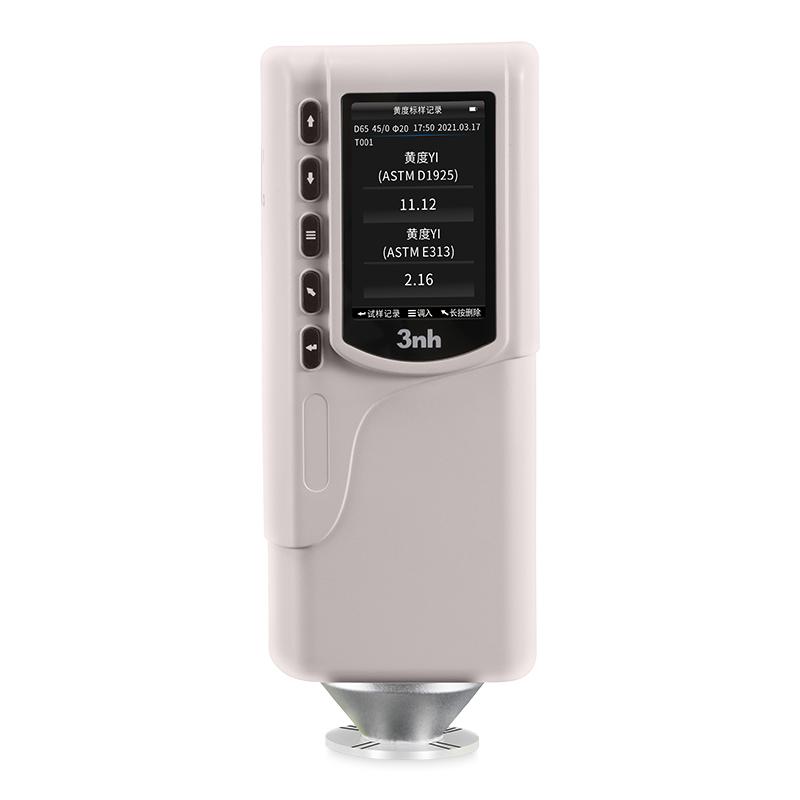

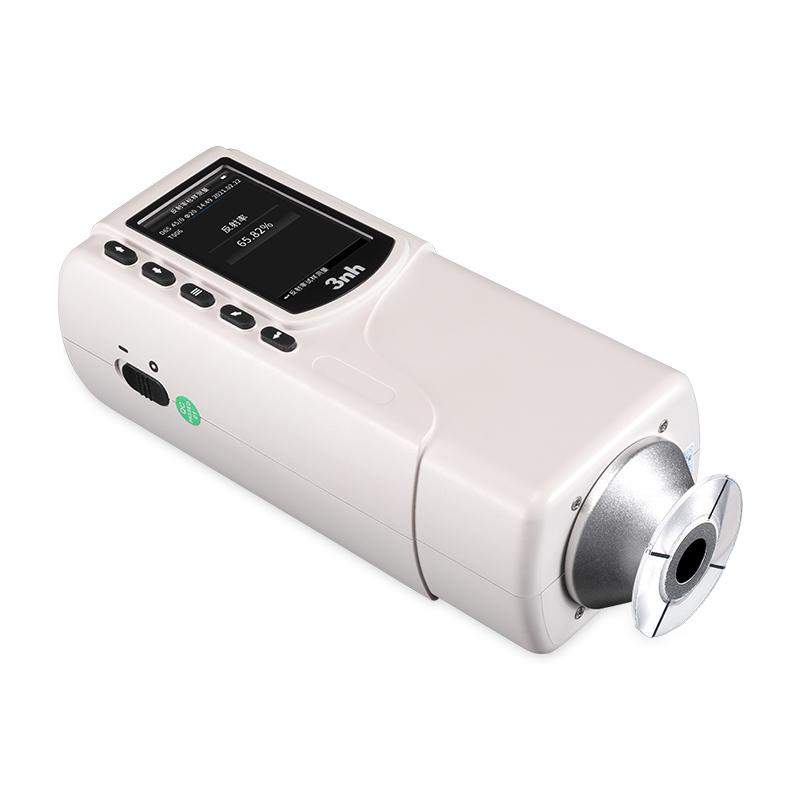

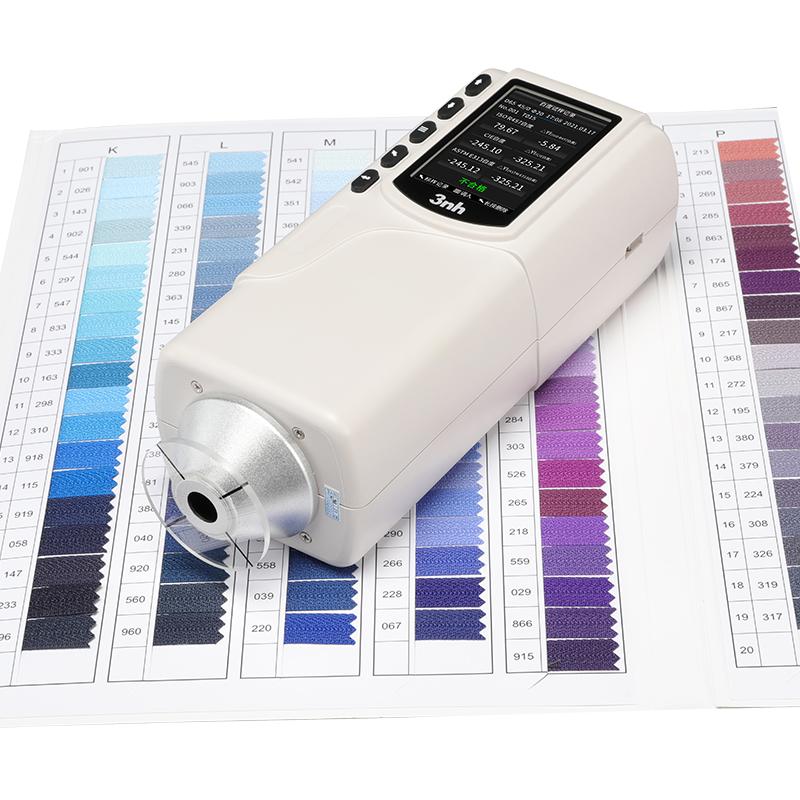

NR4520 Whiteness Meter is used to measure the ISOR457 whiteness, CIE whiteness, ASTME313 whiteness, yellowness YIl, reflectivity, it is widely used in papermaking, textile, printing and dyeing, plastics, ceramics, enamel, food, building materials, paint, Chemical, salt and other production and commodity inspection departments that need to measure the whiteness of special bodies. The NR4520 Whiteness Meter is also suitable for measuring various specular reflectance values, measuring ISO brightness (ISO Brightness, that is, R457 whiteness), and for fluorescent whitening samples, it can also measure the fluorescent whitening degree generated by the reflection of fluorescent substances .
Features
1. In addition to ISO R457 whiteness, it can also measure ClE whiteness, ASTM E313 whiteness, yellowness YI, and reflectance;
2. It can be measured multiple times and give the arithmetic mean of a series of measurement results;
3. Simulated D65 illumination body illumination, 45/0 (45 direction incident/0 degree reception), conforming to the standard CIE No.15, GB/T3978.
